UP-DOWN DEVICE MICROSWITCH

REMOVING/REFITTING

– Remove the window (see specific paragraph)

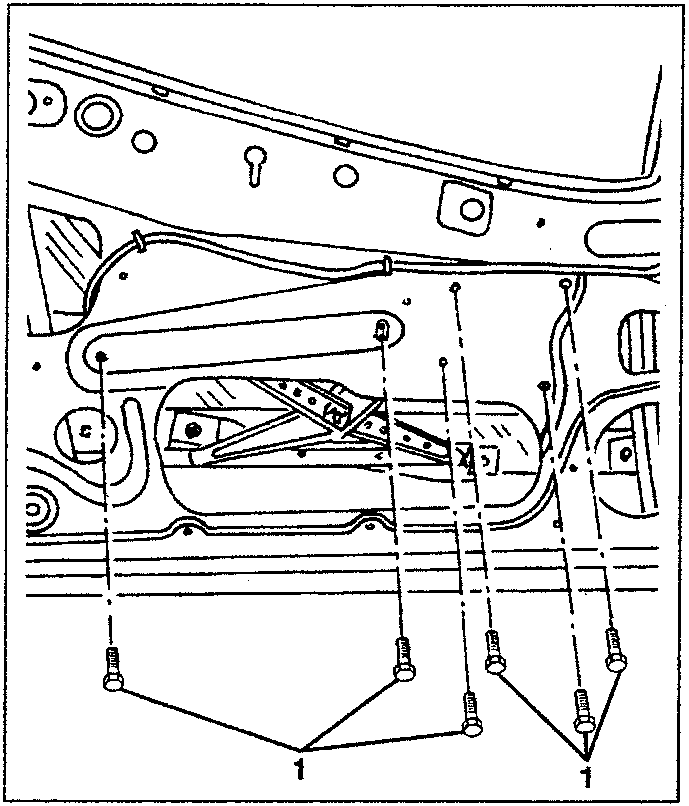

  1. Unscrew the six bolts securing the electric window device.
Diagram showing the electric window device with six bolts labeled 1

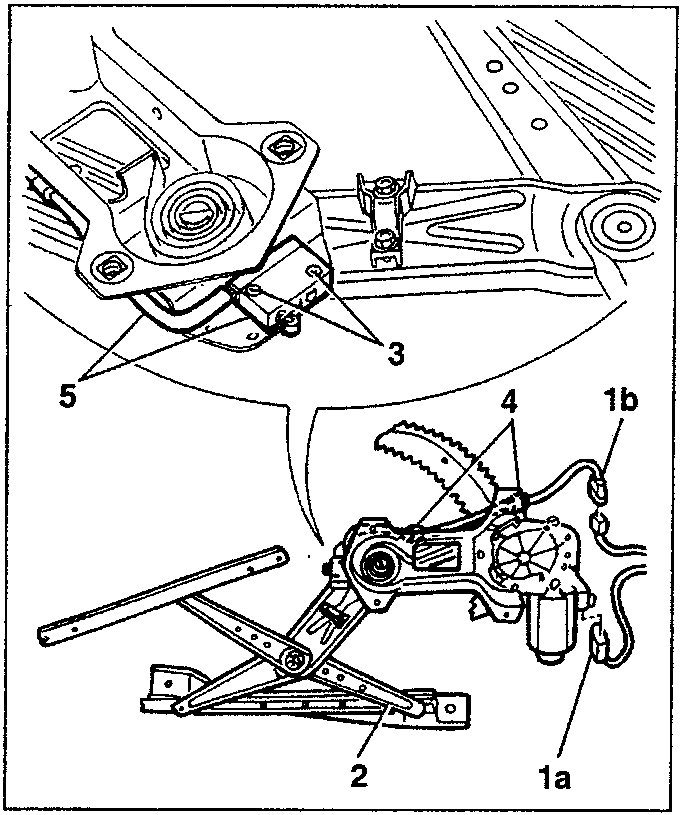

  1. Disconnect electric window device electrical connection (1a) and up-down device electrical connection (1b).
  2. Recover the electric window device.
  3. Drill out the microswitch retaining rivets.
  4. Undo the retaining clips.
  5. Remove the microswitch with wiring
Diagram showing the up-down device components labeled 1a, 1b, 2, 3, 4, and 5

– Refit by carrying out removal instructions in reverse order.

NOTE: Before refitting the door interior trim and door panel, adjust the up-down device (see specific paragraph).
