70 BodyworkDis-assembly

DIS-ASSEMBLY

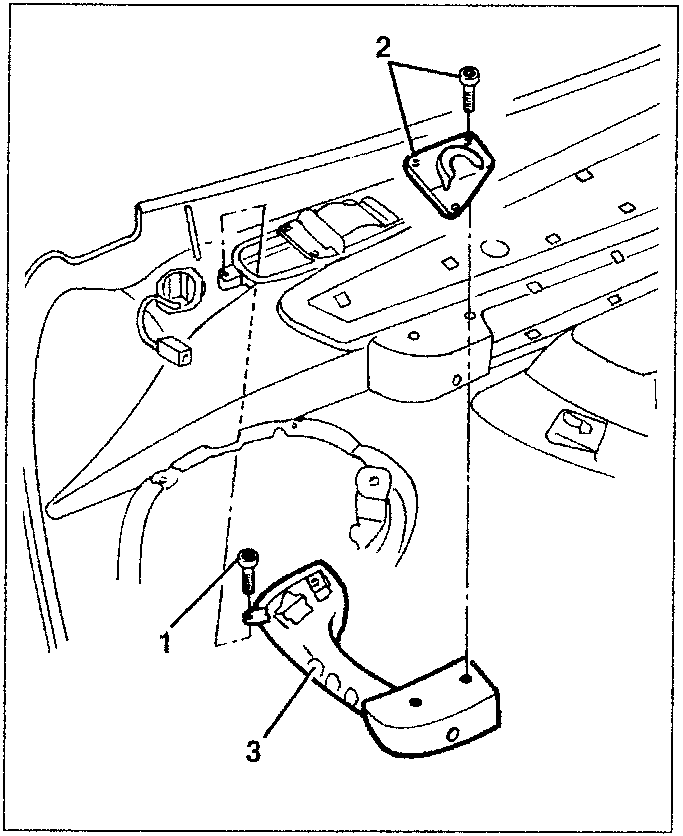

  1. Slacken the upper fastening screw.
  2. Slacken the three lower screws and remove the retainer bracket.
  3. Remove the inner handle.
Diagram showing door panel disassembly with labeled parts 1, 2, and 3

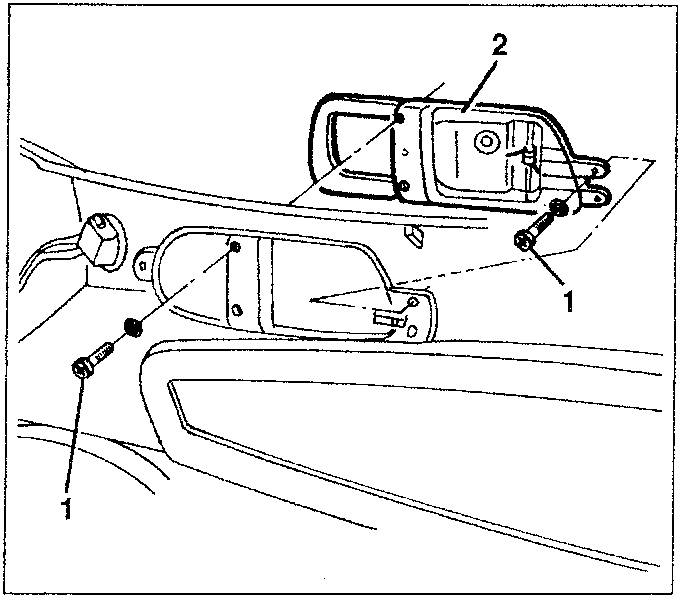

  1. Slacken the four screws.
  2. Remove the door opening inner handle plate.
Diagram showing door handle removal with labeled parts 1 and 2

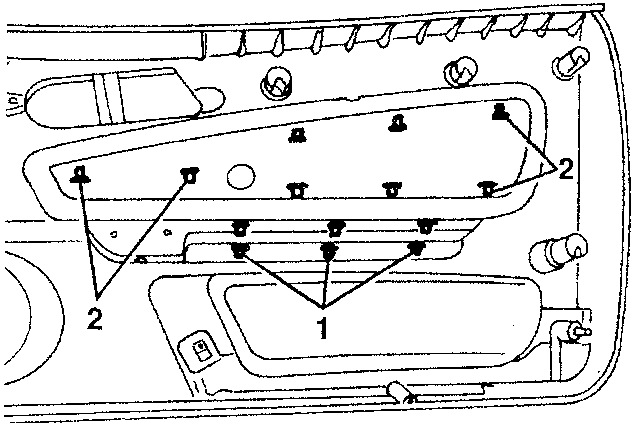

  1. Straighten the tabs and remove the armrest.
  2. Straighten the tabs and remove the trim panel.
Diagram showing door trim panel removal

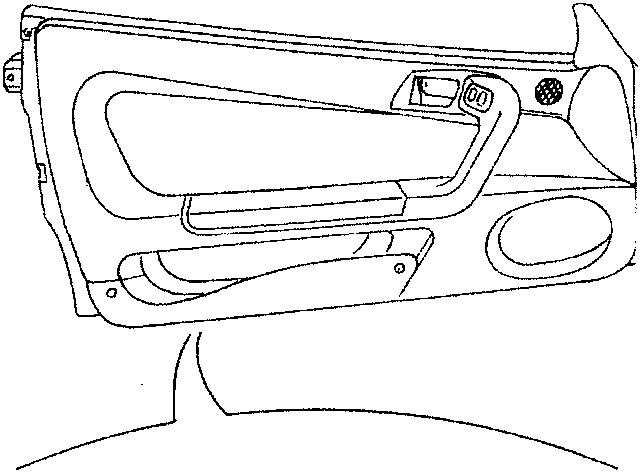

Re-assemble the door panel reversing the sequence followed for dis-assembly.
