70 BodyworkReplacing the door panel stay pins
  1. Slacken the two fastening screws in the speaker compartment.
  2. Slacken the two front panel fastening screws.

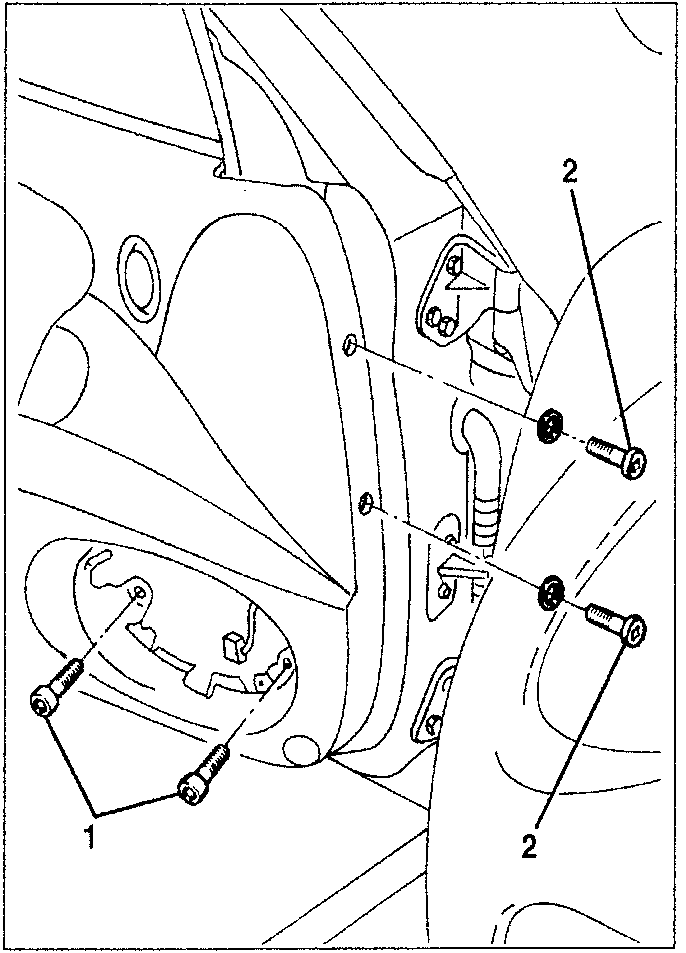

Diagram showing screws labeled 1 and 2 in a door panel area.
  1. Raise the panel and prise it off the pins positioned as illustrated. Do not remove it but move it away only slightly from the door.

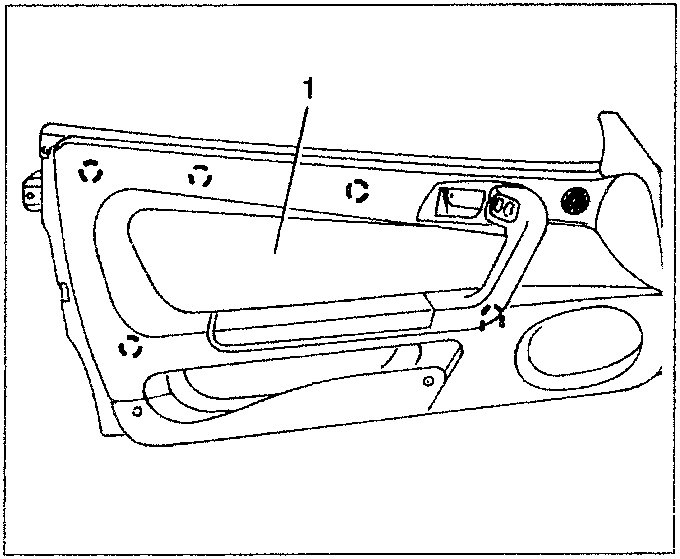

Diagram showing a door panel with a handle and various cutouts, labeled 1.
  1. Remove the door opening handle cable sheath from the retainer clip.
  2. Withdraw the cable from the handle bracket.
  3. Release the power window switch connectors.
  4. Disconnect the tweeter speaker connection.
  5. Remove the door panel.

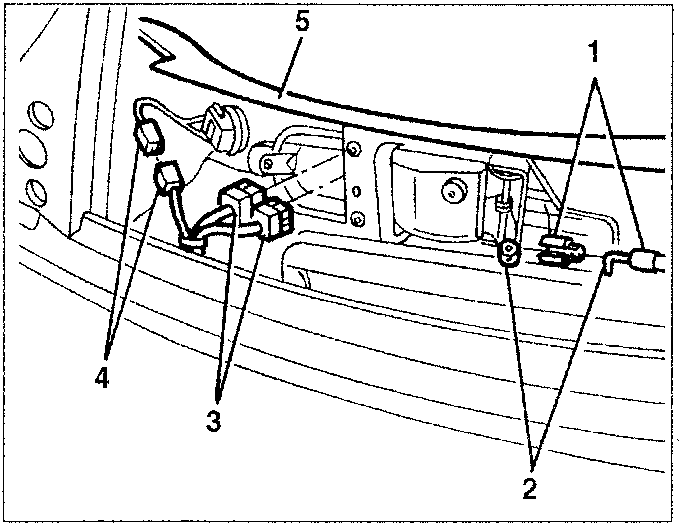

Diagram showing a door panel interior with labeled parts 1, 2, 3, 4, and 5.

Refit the door panel reversing the sequence followed for removal.

REPLACING THE DOOR PANEL STAY PINS

  1. Slacken the screw and remove the centre pin.
  2. Using tool 1.823.025.000 press the centre nail out of the peripheral pins.
  3. Using tool 1.823.015.000 remove the peripheral pins and retrieve the centre plastic nails.

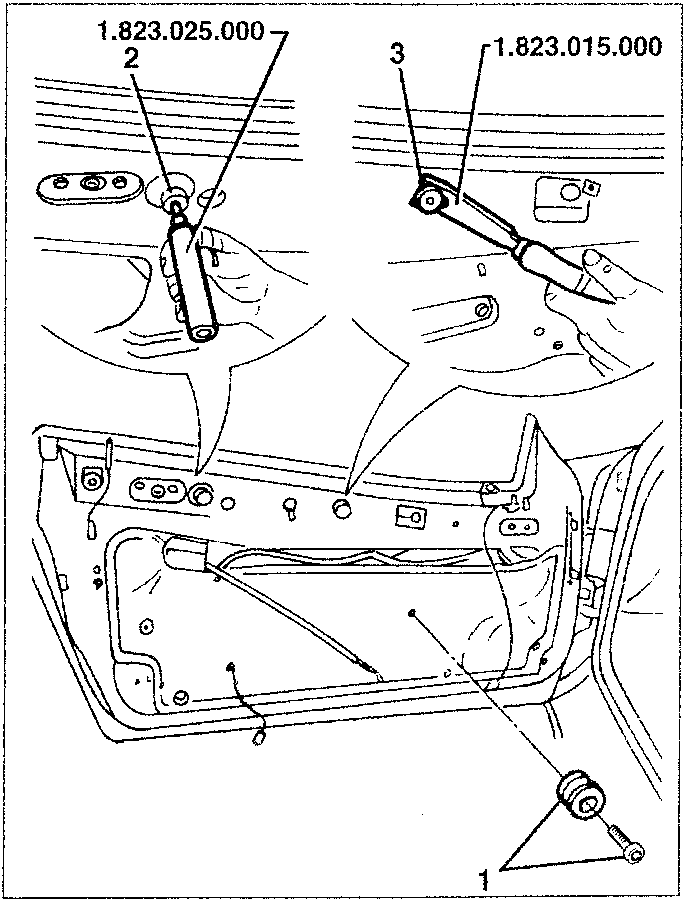

Diagram showing tools 1.823.025.000 and 1.823.015.000 being used to press out and remove pins from a door panel.
