Refitting

REFITTING

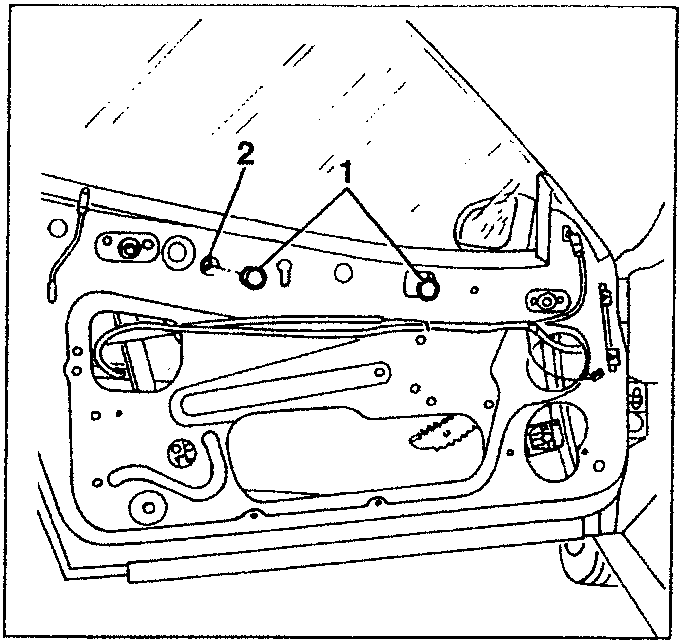

• Re-position the window in its housing.

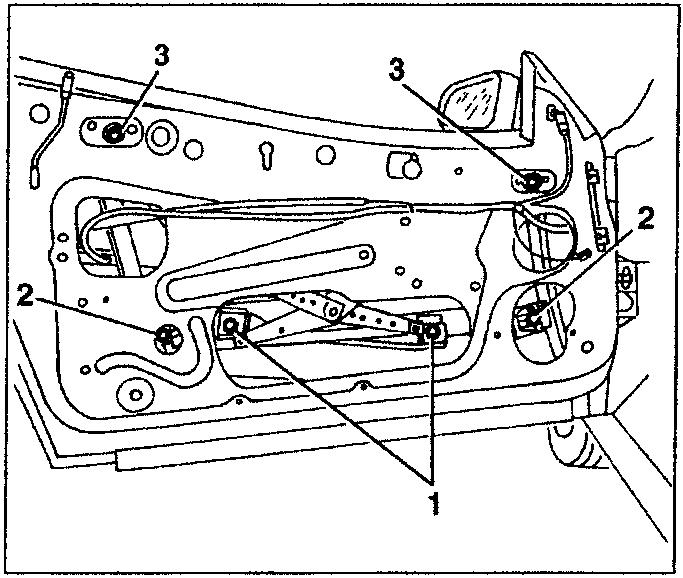

1. Tighten the window fastening screws to the window winding device, without locking them.
2. Tighten the screws that fasten the runners to the glass, without locking them.
3. Move the glass to the raised position and slacken the lock nuts of the stops.

• Shut the door

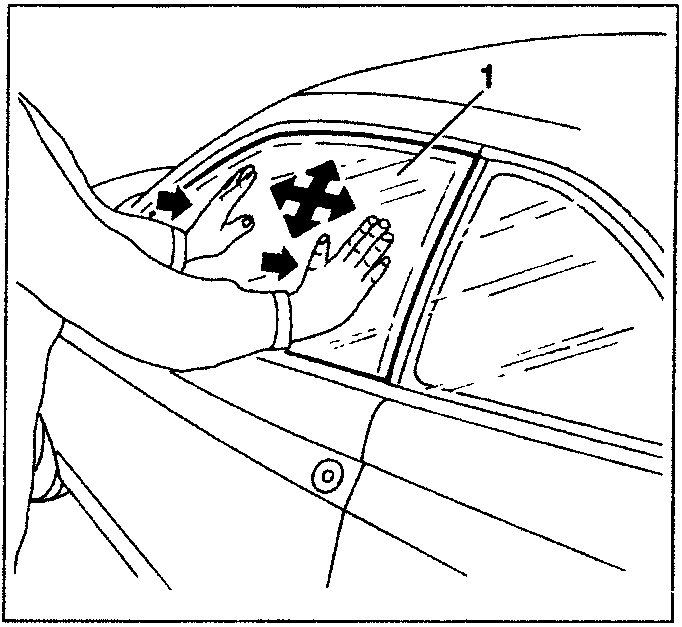

1. Working as illustrated, press the glass and settle it in place in its housing in contact with the seals.

1. Working from the passenger compartment (without opening the door) remove the two rubber caps.
2. Tighten the screws that fasten the window to the window winder.

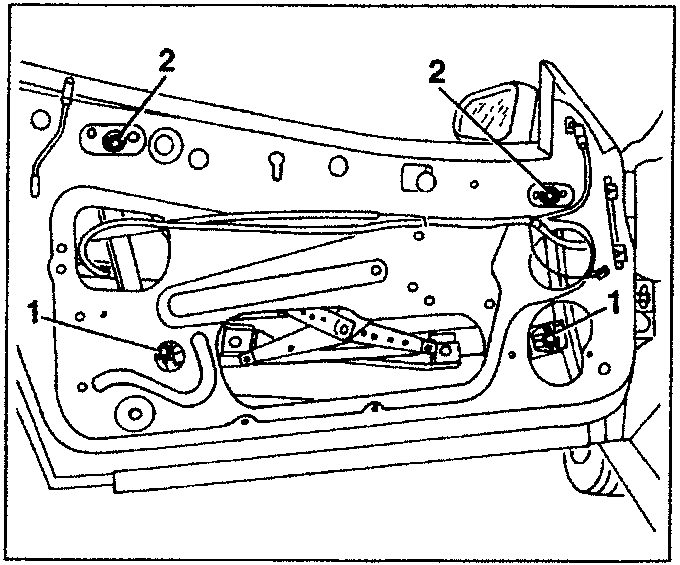

• Lower the window to the position in which the screws that fasten the window to the runners are accessible.

1. Tighten the screws fastening the runners to the window.
2. Check the position of the upper stop and tighten the corresponding nuts.

• Carry out the adjustment procedure (see following paragraph).
• Carry out the up-down device device adjustment procedure (see specific paragraph).
