Complete door

COMPLETE DOOR

REMOVAL/REFITTING

NOTE: During removal (or refitting) avoid damaging the paintwork.

Open the bonnet.

• Lower the window and then disconnect the battery.

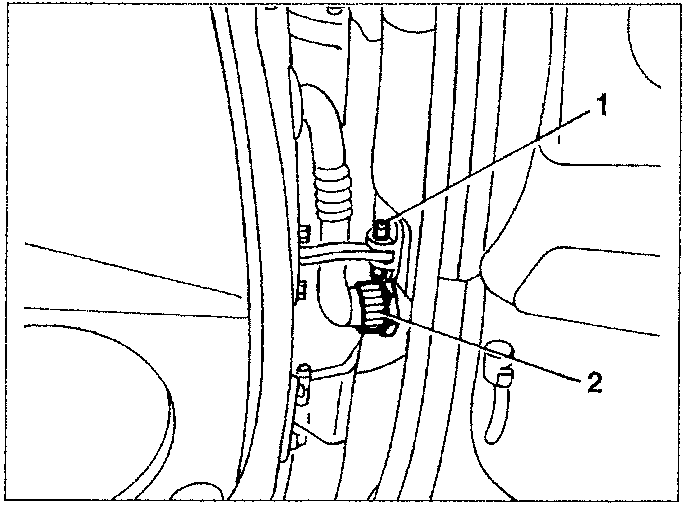

1. Remove the door check rod pin upwards. Close the door slightly to allow the entry of the rod, then reopen the door.
2. Slacken the locknut and disconnect the connector.

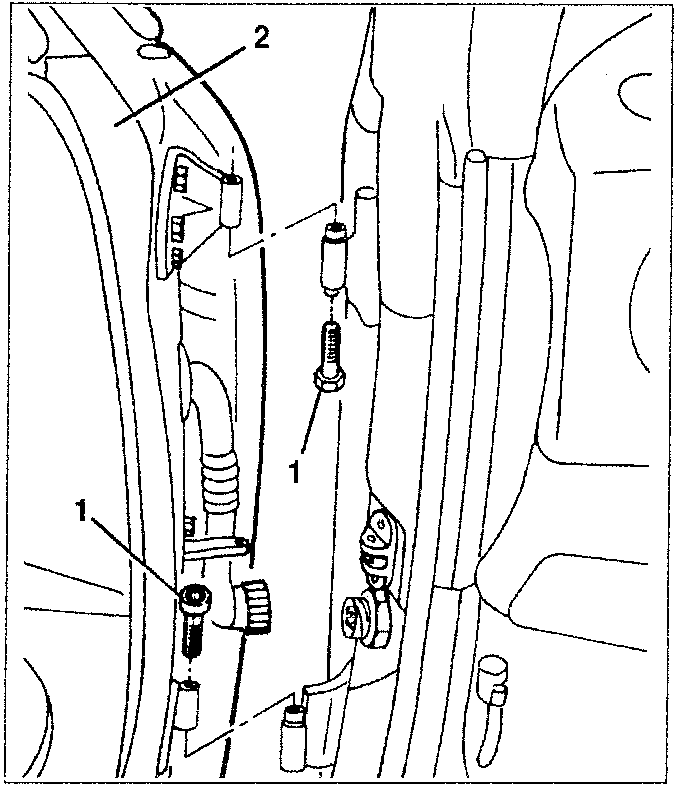

1. Slacken the two screws fastening the door to the hinge.
2. Raise the door to remove the hinge taper pins from their housings, then remove the door.

Refit the door reversing the sequence followed for removal. Adjust the door position.

ADJUSTMENT

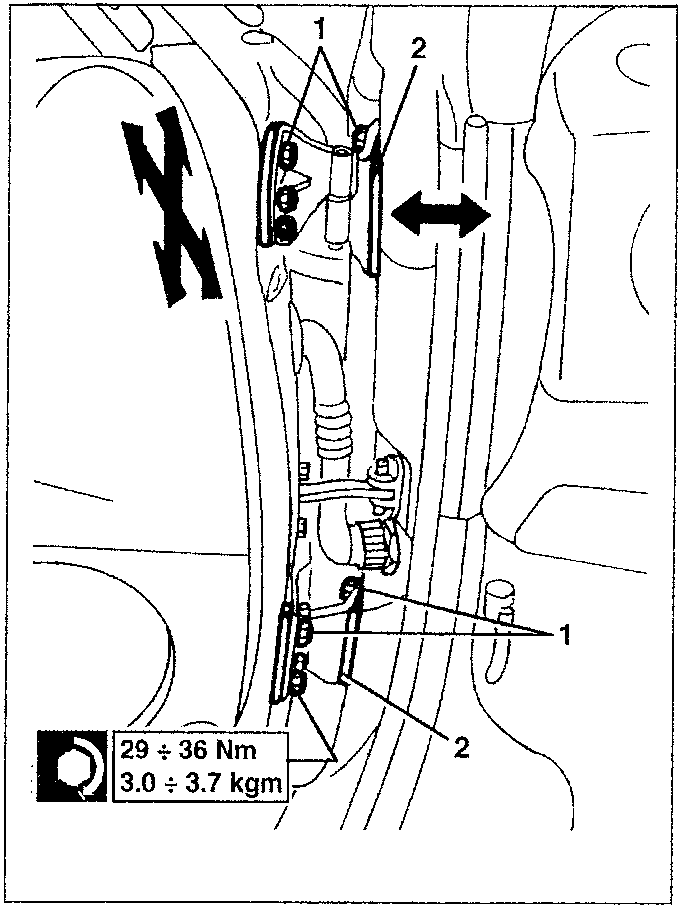

1. Loosen the screws fastening the hinges to the door and/or body and adjust the door in height and longitudinally.
2. If necessary, place suitable thicknesses under the hinges to adjust the position of the door.

Tighten the screws to the specified torque.

NOTE: The upper hinge also supports the bonnet connection bracket. If the coupling position of this hinge with the bonnet needs changing, adjust the door together with bonnet alignment.

29 ÷ 36 Nm
3.0 ÷ 3.7 kgm

DOOR STRIKER (Spider only)

REMOVAL/REFITTING

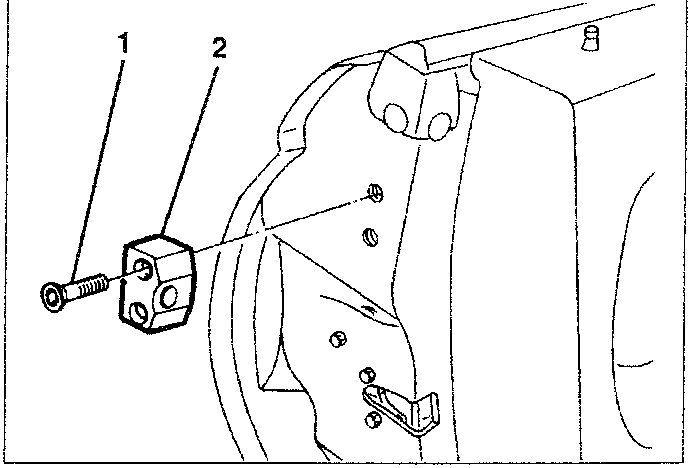

1. Slacken the two screws.
2. Remove the striker block.
