70 BodyworkUp-down device cam

UP-DOWN DEVICE CAM

REMOVAL

– Remove the door panel (see specific paragraph)

  1. Unscrew the bolt and remove the central panel anchorage pin
  2. Remove the interior trim, taking care to avoid damaging it.

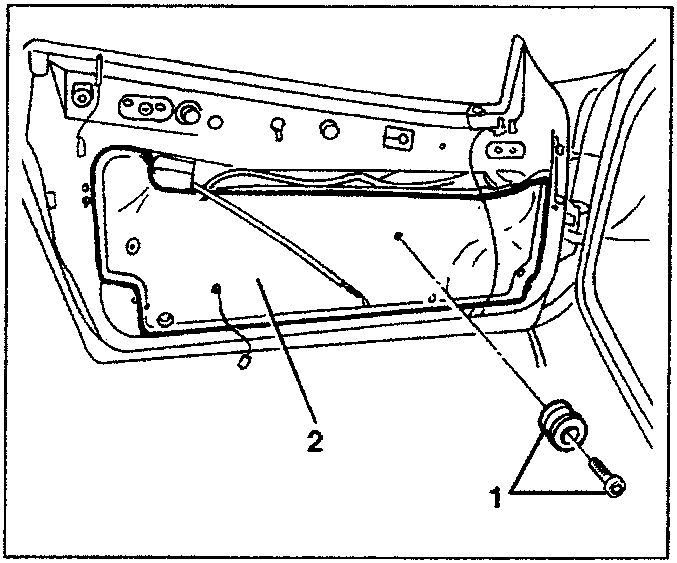

Diagram showing removal of cam retaining bolt and up-down device cam from door panel.
  1. Unscrew the cam retaining bolt.
  2. Remove the up-down device cam

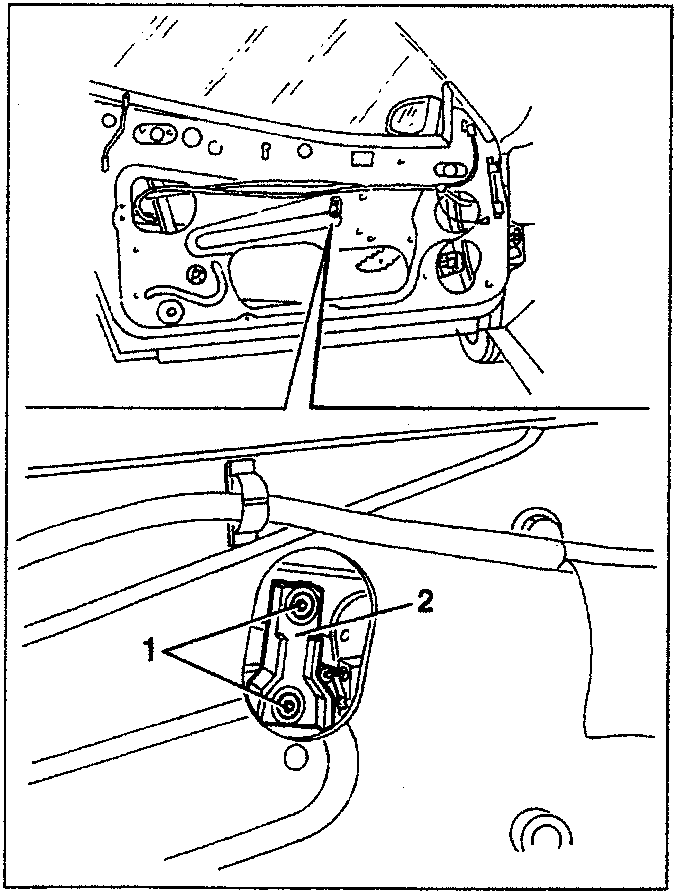

Diagram showing the up-down device cam being removed from its seat.

REFITTING

  1. Fit the cam in its seat.
  2. Screw in the bolts without tightening.

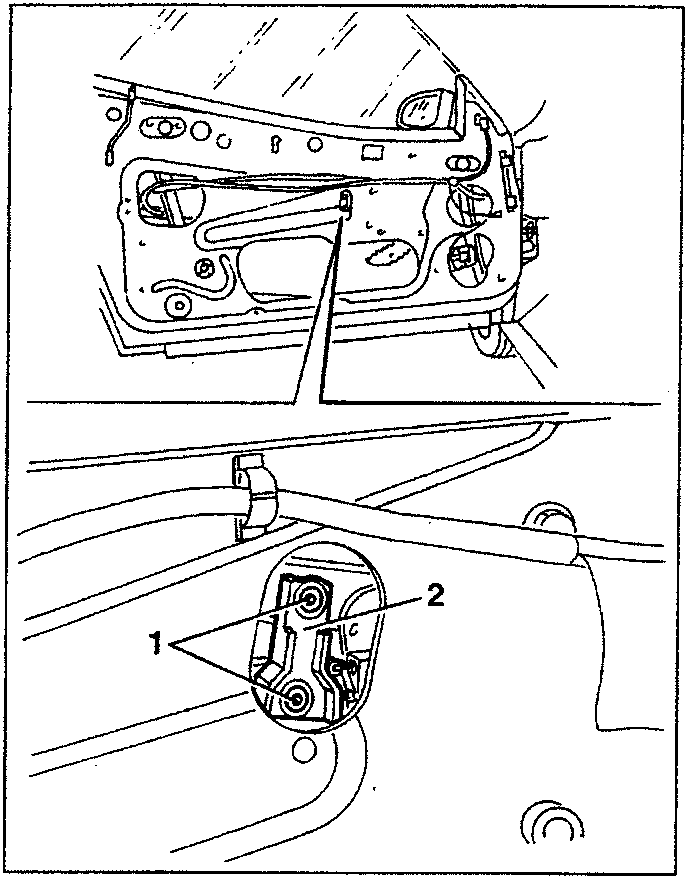

Diagram showing the up-down device cam being refitted into its seat.

– Adjust the up-down device (see specific paragraph).

– Refit the interior trim and door panel by carrying out removal instructions in reverse order.
