70 BodyworkFront wind seal

FRONT WIND SEAL

REMOVAL/REFITTING

  • Remove the complete door (see specific paragraph).

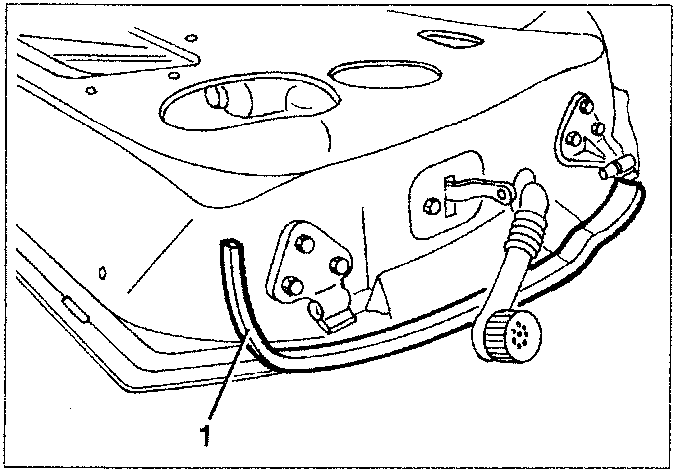

  1. Remove the seal on the front edge of the door.
Front wind seal removal diagram showing seal 1 on front edge of door

When refitting reverse the sequence followed for removal. Clean and degrease the contact surface and make sure that the bi-adhesive of the seal adheres perfectly.

MIRROR TRIANGLE SEAL

  • Remove the door mirror (see specific paragraph)

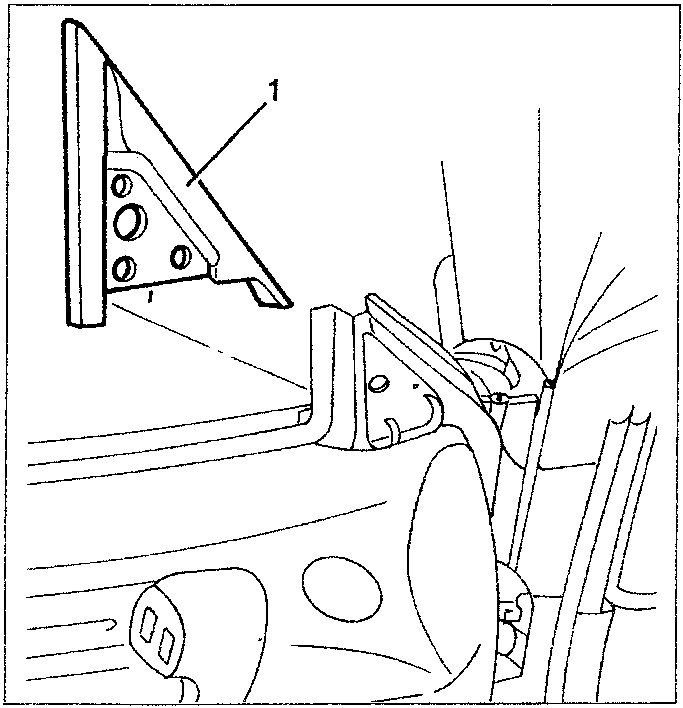

  1. Remove the seal and detach the front bi-adhesive side.
Mirror triangle seal removal diagram showing seal 1 on mirror

DOOR LOWER MOULDING

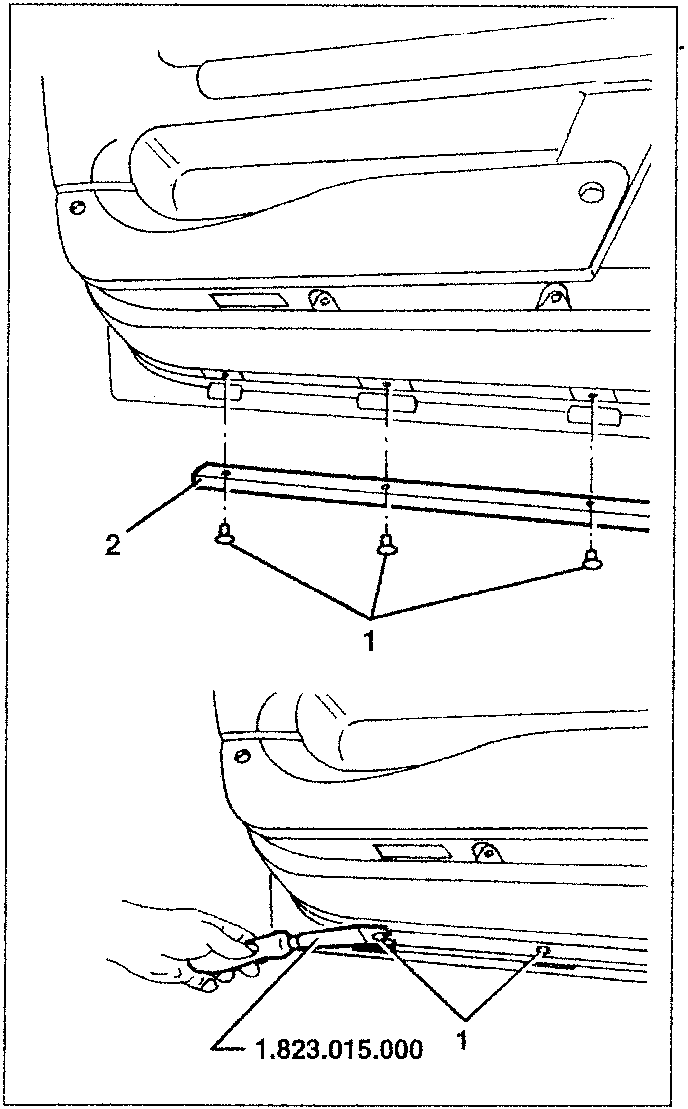

  1. Using tool 1.823.015.000 remove the five fastening plugs.
  2. Retrieve the seal.
Door lower moulding removal diagram showing tool 1.823.015.000 removing fasteners

Refit the seal reversing the procedure followed for removal.

Refit the seal reversing the procedure followed for removal.
