70 BodyworkWindow guides
  1. Disconnect the two electrical connections.
  2. Slacken the five screws
  3. Remove the lock device from the inside of the door.

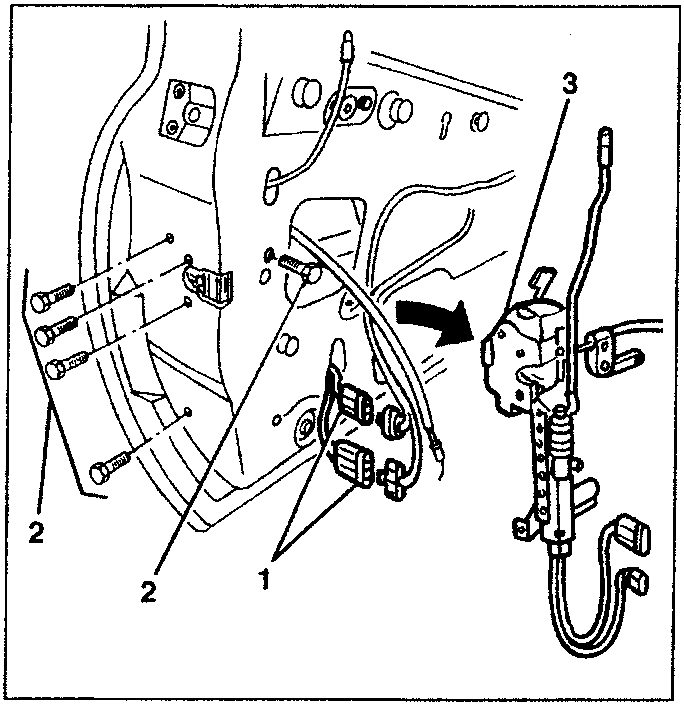

Diagram showing disconnection of electrical connections and removal of lock device from inside door, with parts labeled 1, 2, and 3

If necessary:

  1. Slacken the two screws.
  2. Release the catch.
  3. Remove the door locking actuator.

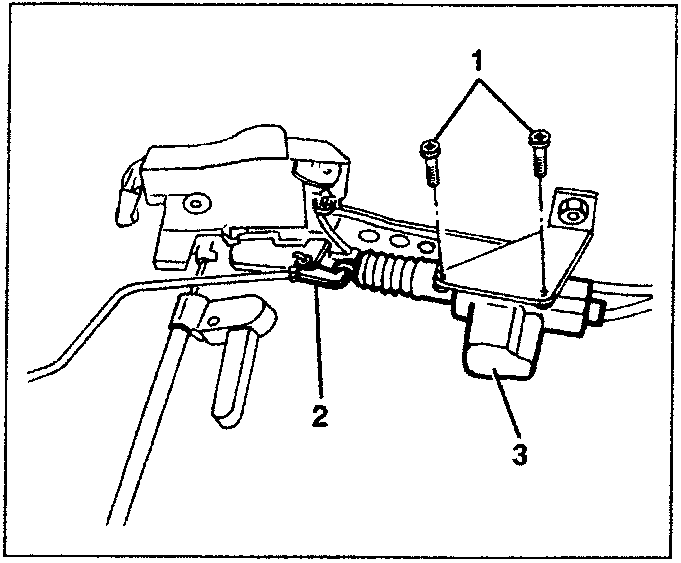

Diagram showing components of door locking actuator with parts labeled 1, 2, and 3

Refit the lock device reversing the sequence followed for removal.

WINDOW GUIDES

REMOVAL/REFITTING

  • Remove the window (see specific paragraph)
  1. Slacken the lower nut.
  2. Slacken the upper nuts.
  3. Remove the guide.

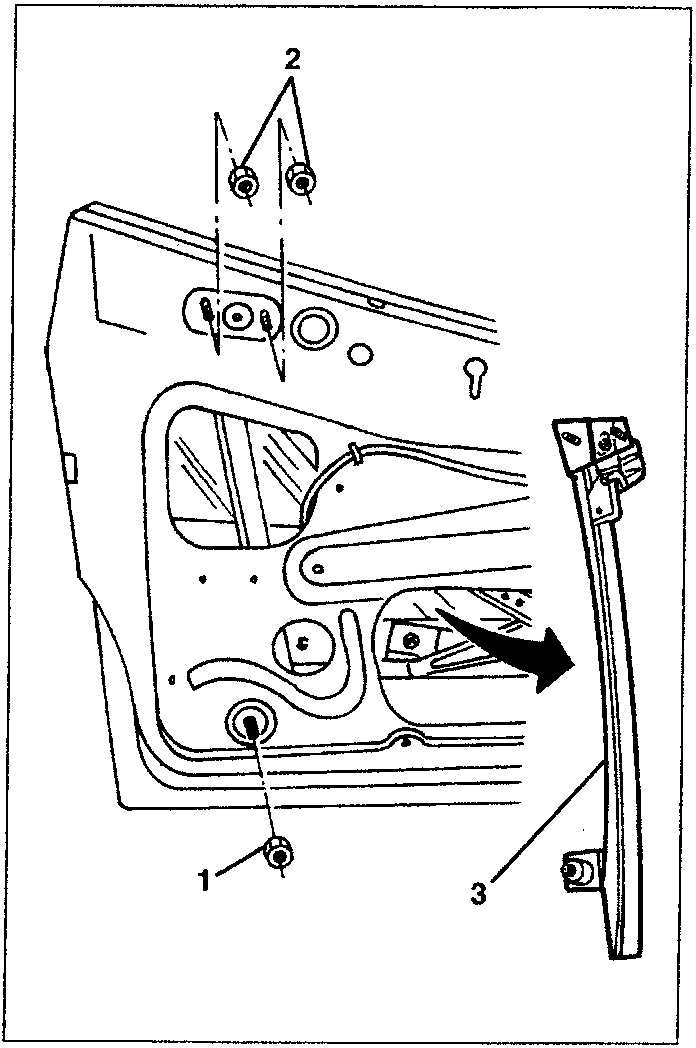

Diagram showing removal of window guides with parts labeled 1, 2, and 3

When refitting reverse the sequence followed for removal and adjust the position of the guides.
