70 BodyworkDoor check rod

DOOR CHECK ROD

REMOVAL/REFITTING

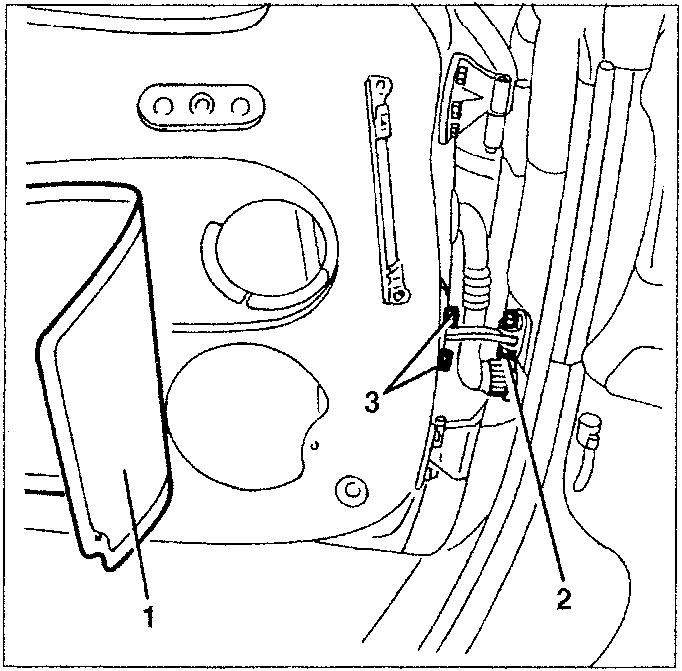

– Remove the door panel (see specific paragraph)

  1. Partially remove the interior trim, taking care not to damage it.
  2. Remove the door check rod pin upwards. Close the door slightly to allow the entry of the rod, then reopen the door.
  3. Slacken the two screws fastening the check rod.
Diagram showing interior door panel with check rod components labeled 1, 2, and 3

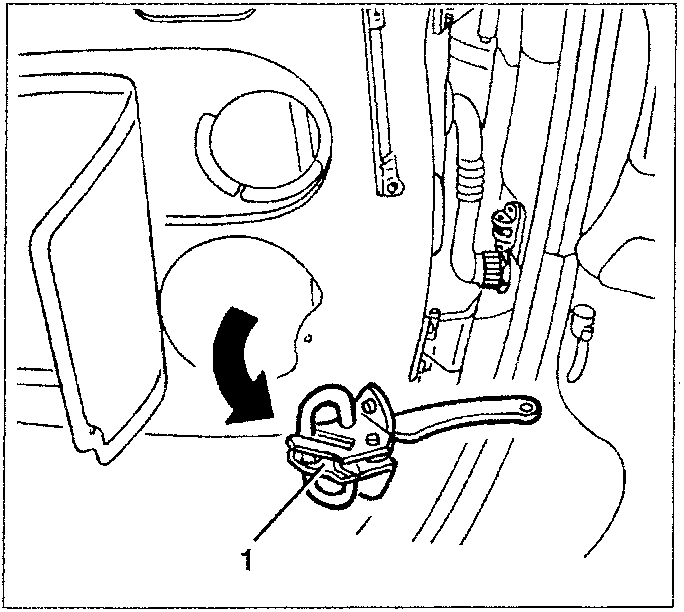

  1. Withdraw the check rod from the inner door.
Diagram showing check rod being withdrawn from inner door with a tool labeled 1

When refitting reverse the sequence followed for removal following the instructions given below:

  • Before refitting the door check rod, treat the contact area with Primer.
  • If the interior trim glue no longer ensures perfect adherence, change it.

DOOR MIRROR

REMOVAL/REFITTING

– Lower the window and disconnect the battery.

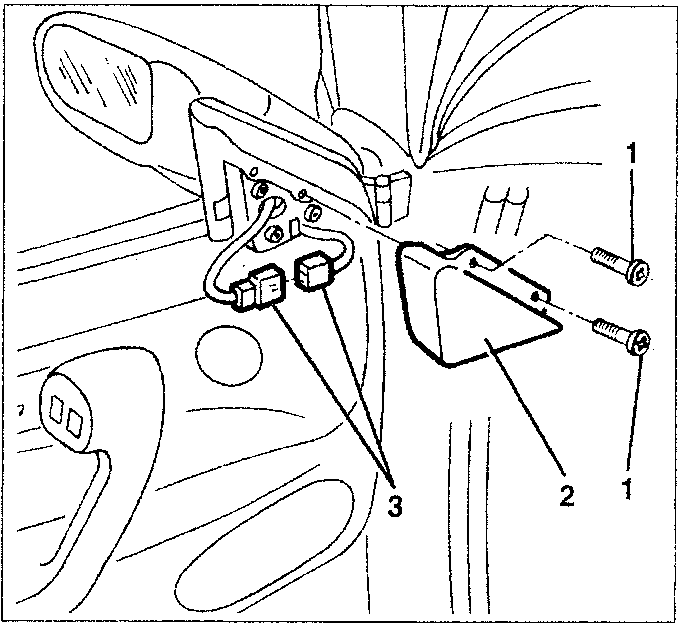

  1. Slacken the two screws.
  2. Remove the plate.
  3. Disconnect the electrical connection.
Diagram showing door mirror components with labeled parts 1, 2, and 3

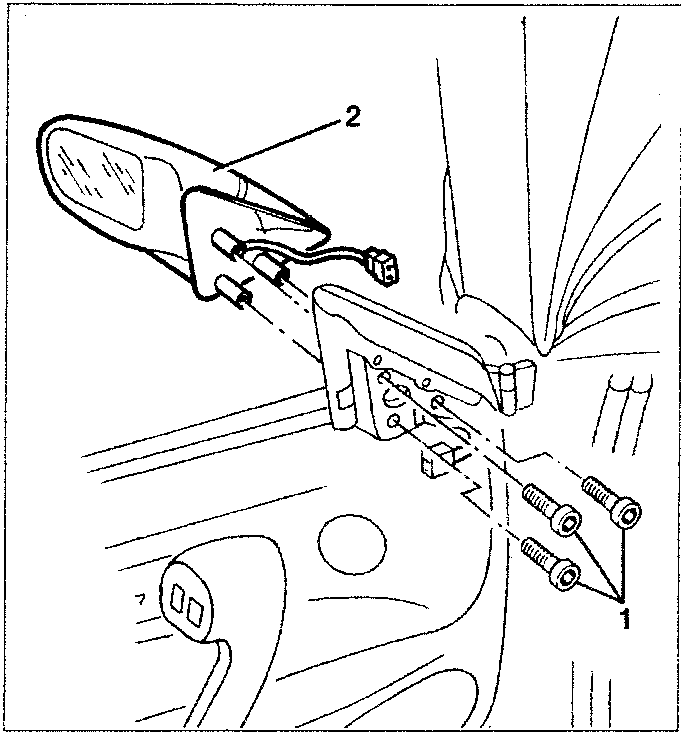

  1. Slacken the three door mirror fastening screws.
  2. Remove the door mirror releasing the wiring.
Diagram showing door mirror being removed with labeled parts 1 and 2

Refit the door mirror reversing the sequence followed for removal.
