Lock unit

LOCK UNIT

REMOVAL/REFITTING

– Remove the door panel (see specific paragraph). Move aside the interior trim.

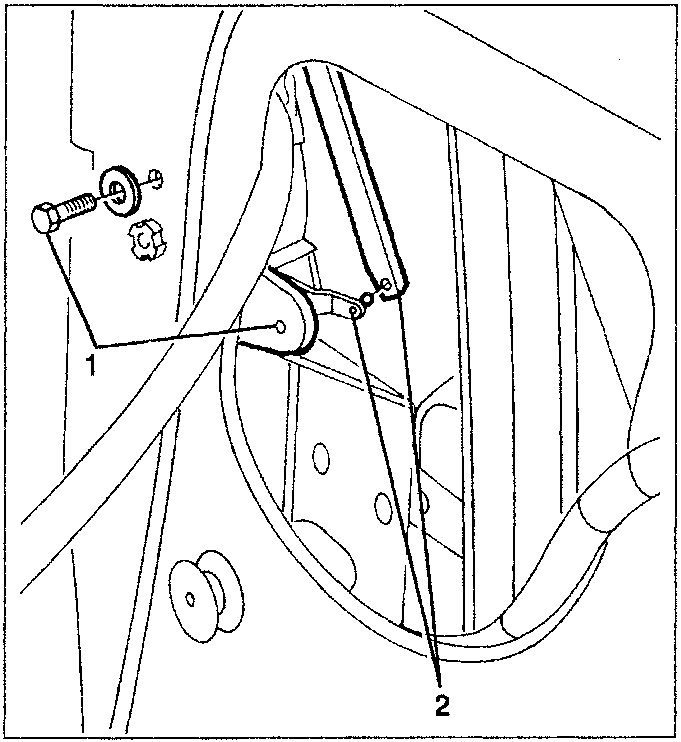

1. Remove the lock control brcket.
2. Disconnect the tierod coupling the lock unit to the lock device.

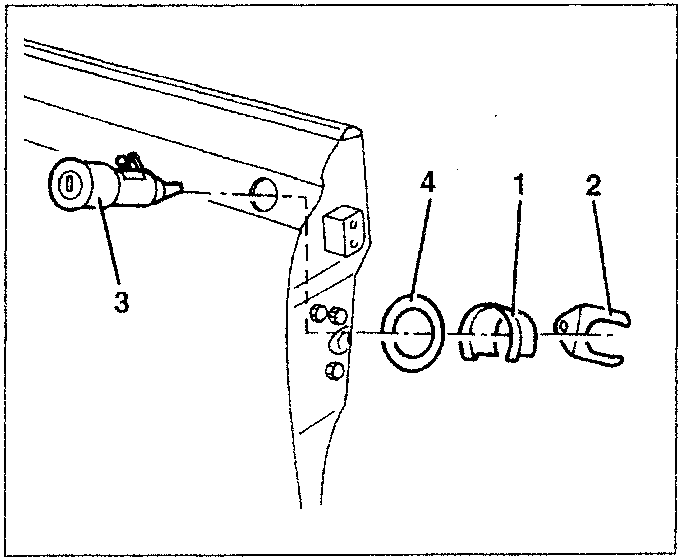

1. Withdraw the lockring.
2. Withdraw the retainer clip.
3. Remove the lock unit from the outside of the door.
4. Remove the ring.

Refit the lock device reversing the sequence followed for removal.

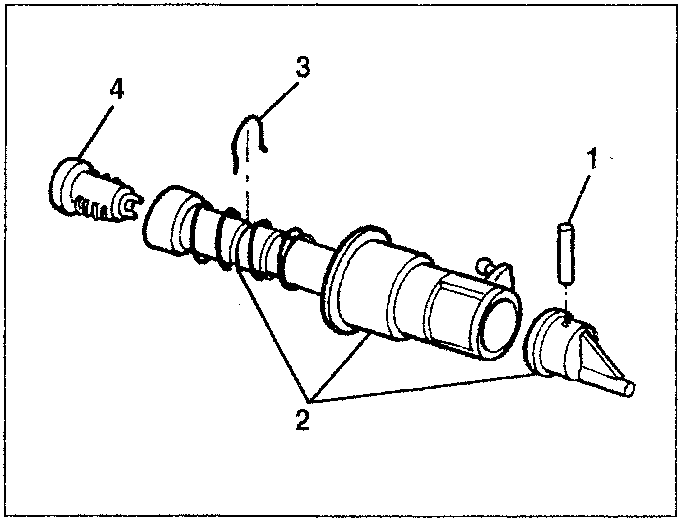

DISASSEMBLY

1. Withdraw the retainer pin.
2. Dis-assemble the unit.
3. Remove the retainer clip.
4. Remove the unit.

Re-assemble the lock unit reversing the sequence followed for dis-assembly.

LOCK DEVICE

REMOVAL/REFITTING

– Raise the window and disconnect the battery.

– Remove the door panel (see specific paragraph).

– Move aside the interior trim.

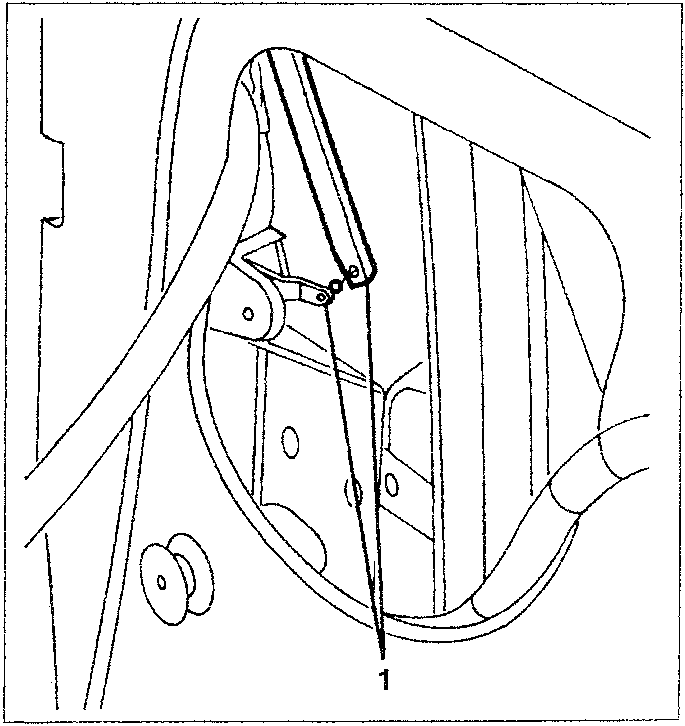

1. Disconnect the tierod of the lock unit from the lock device.
