WINDOW REMOVAL

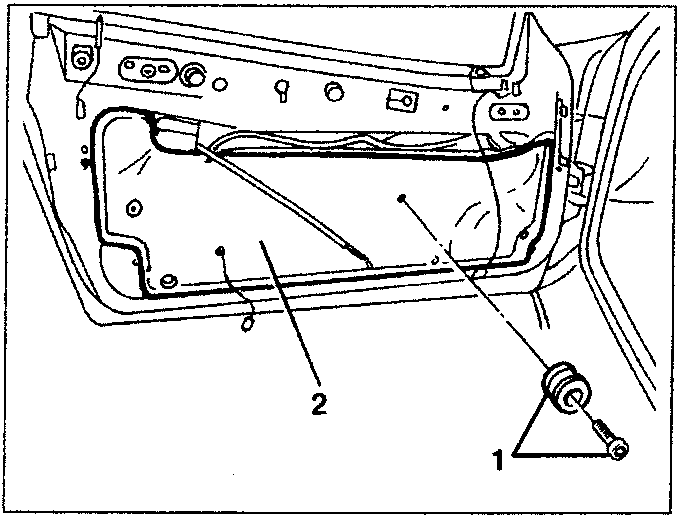

Remove the door panel (see specific paragraph).

  1. Slacken the screw and remove the centre panel stay pin.
  2. Detach the interior trim, taking care not to damage it.
Diagram showing interior door panel with numbered parts 1, 2, and 3
  • Reconnect the power window switches and the battery.
  • Move the window to an intermediate position in which access is possible to the four window anchoring screws.
  • Remove the inner glass wiper seal (see specific paragraph).

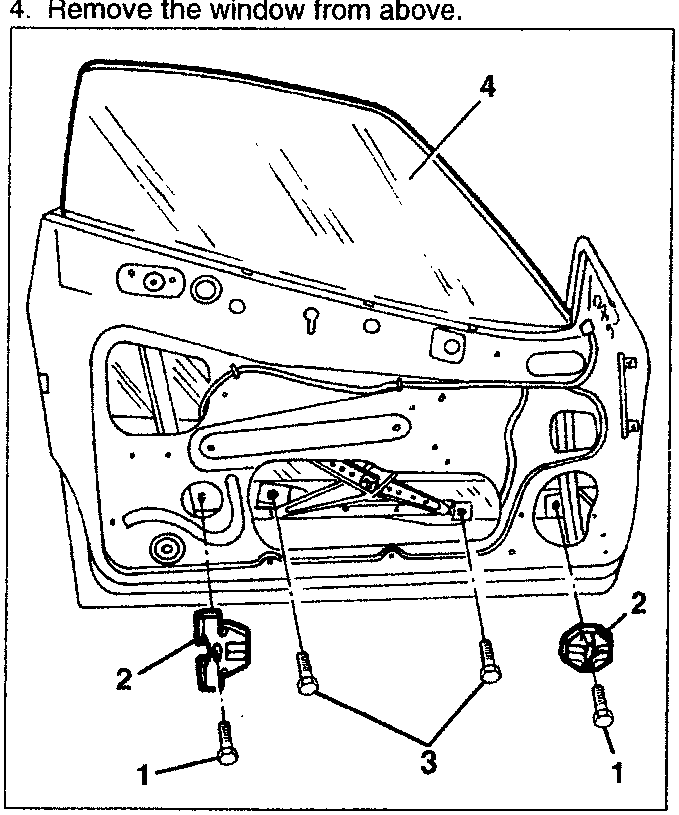

  1. Slacken the screws fastening the window to the pads of the guides.
  2. Remove the guide pads.
  3. Slacken the screws fastening the window to the window winding device.

Remove the window from above.

Diagram showing door panel with numbered parts 1, 2, 3, and 4

If necessary:

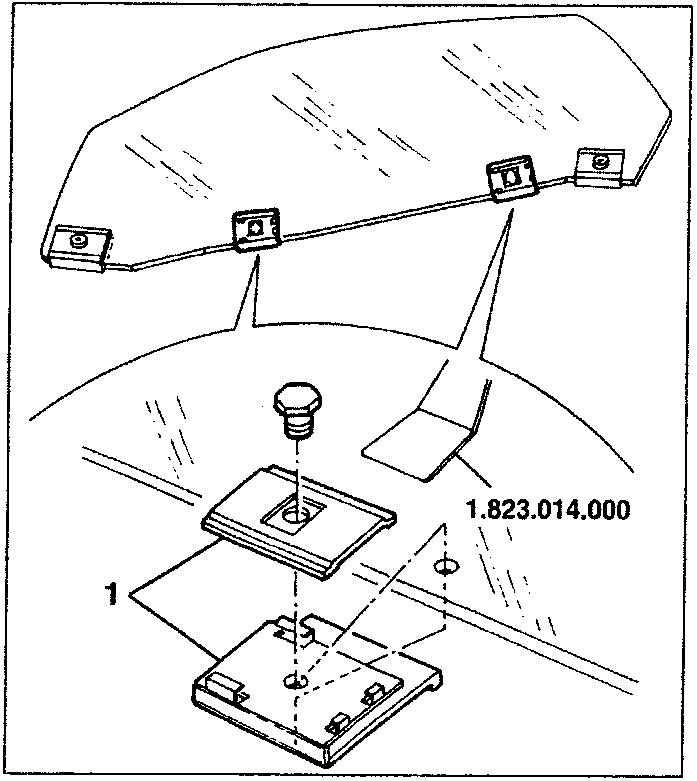

  1. Prise out and open the plastic seats with electric window attachment plate using tool 1.823.014.000
Diagram showing electric window attachment plate with tool 1.823.014.000

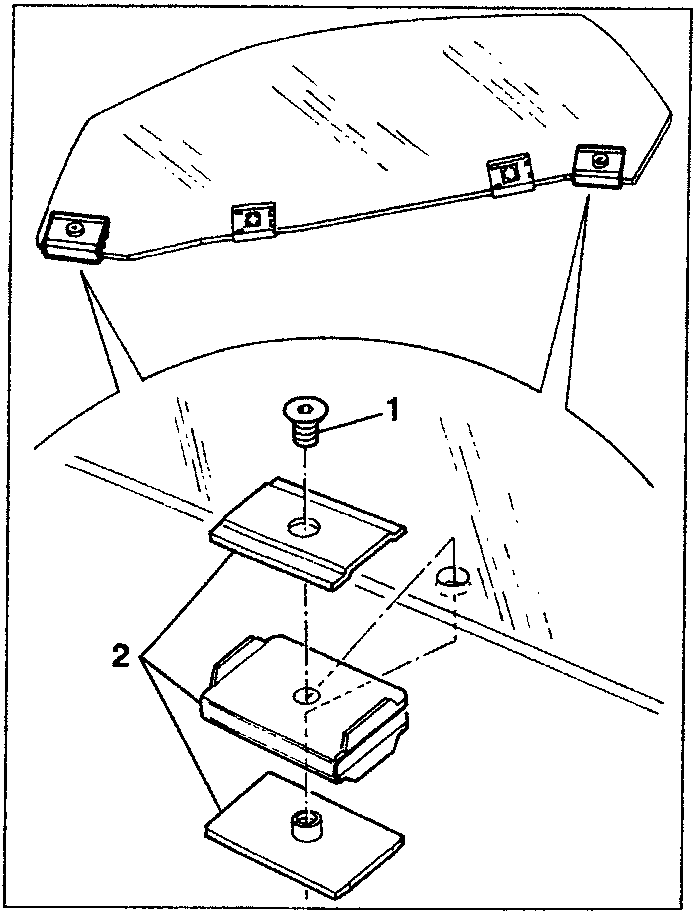

  • If necessary:
  • Undo the retaining bush.
  • Remove the plastic seats with window slide pad attachment plate
Diagram showing window slide pad attachment plate
