70 BodyworkDoor panel

DOOR PANEL

REMOVAL/REFITTING

  • Disconnect the battery.
  • Remove the front speaker (see Group 55 - Electric system).
  1. Slacken the two lower screws.
  2. Withdraw and disconnect the lamp.
  3. Slacken the two screws and remove the door utility pocket withdrawing it downwards.

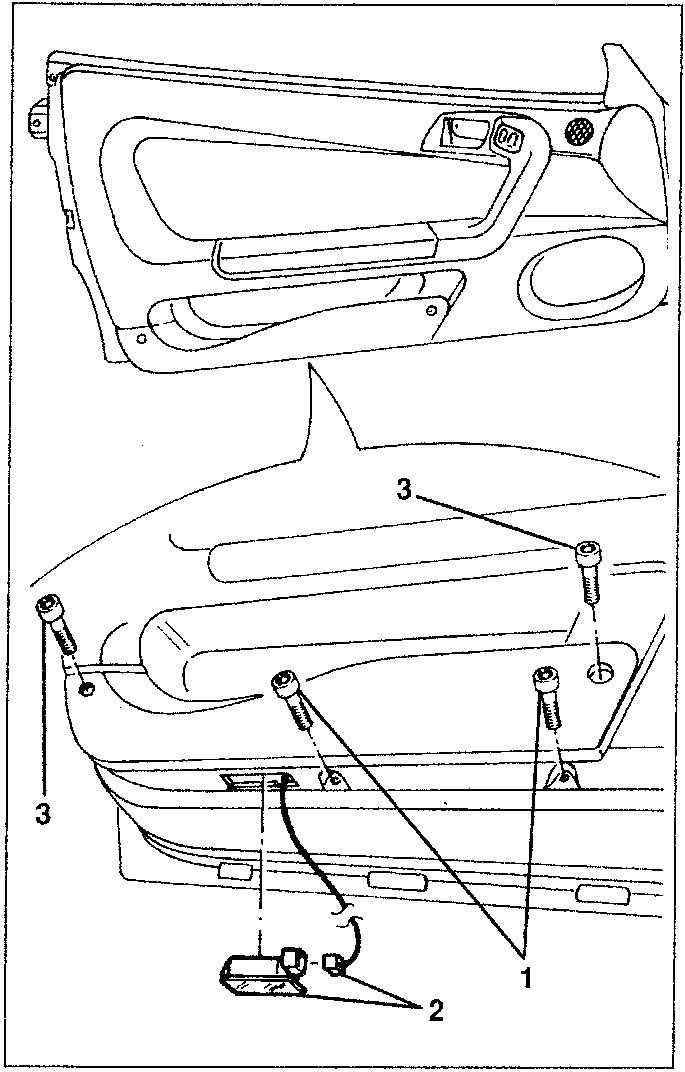

Diagram showing door panel removal with labeled parts 1, 2, and 3 indicating electrical connections, lamp, and screws respectively.
  1. Electrical connection
  2. Lamp
  3. Screw
  4. Using tool 1.823.014.000, remove the power window switches, complete with plate, from their housing.

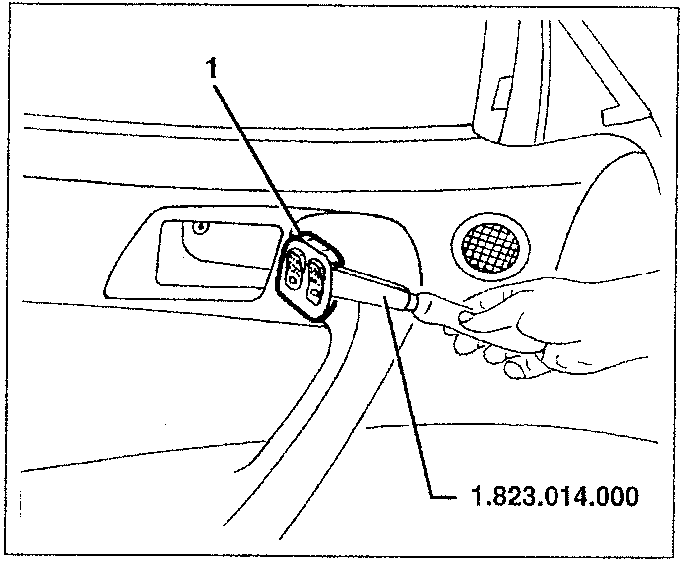

Diagram showing a hand using tool 1.823.014.000 to remove a power window switch assembly from the door panel.
  1. Disconnect the electrical connections from the power window switches and remove the switches.
  2. Slacken the fastening screw located in the switch opening.
  3. Slacken the fastening screw under the inner door opening handle.

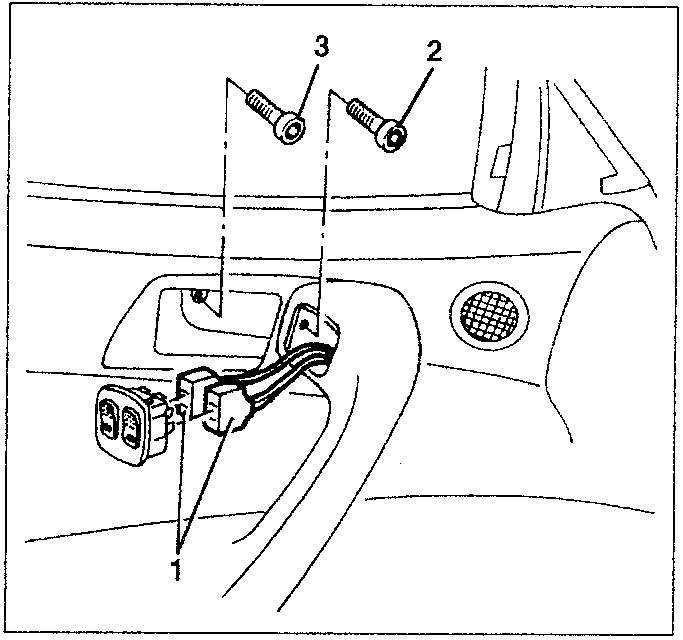

Diagram showing screws 1, 2, and 3 located near the power window switches and door handle.
