UP-DOWN DEVICE

CHECK E ADJUSTMENT

– Adjust the glass if necessary (see specific paragraph)

  1. Starting with the door closed and the window fully raised, press catch button (1a) and ensure that the window lowers (1b) (due to the up-down device) by 4 mm. If not, adjust as described below.

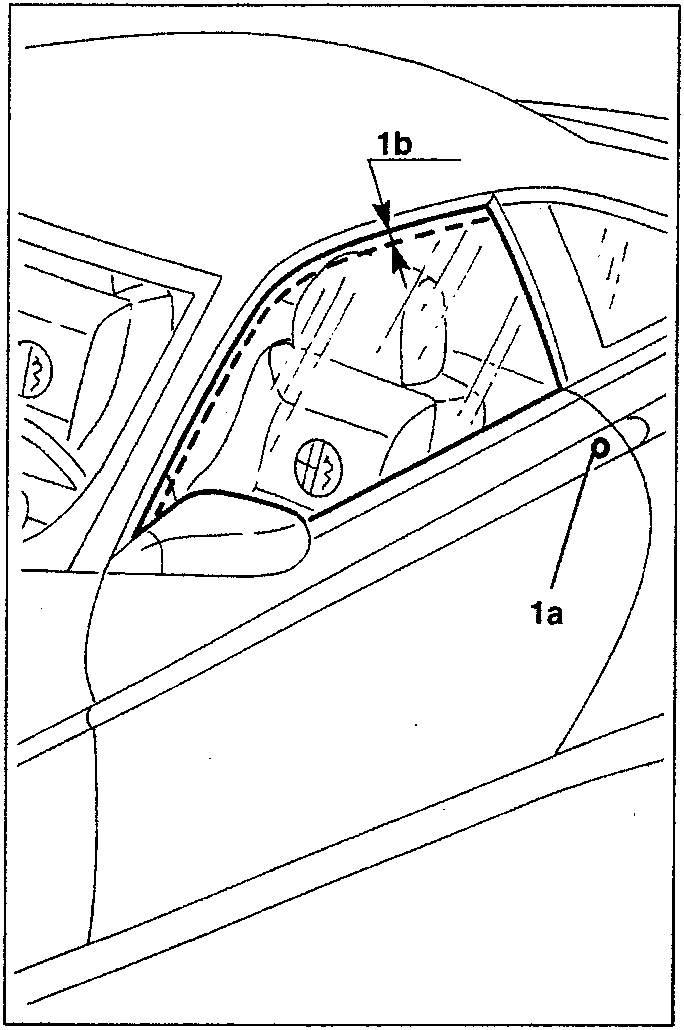

Diagram showing door interior with catch button 1a and window 1b

– Remove the door panel (see specific paragraph).

  1. Unscrew the bolt and remove the central panel anchorage pin.
  2. Remove the interior trim, taking care to avoid damaging it.

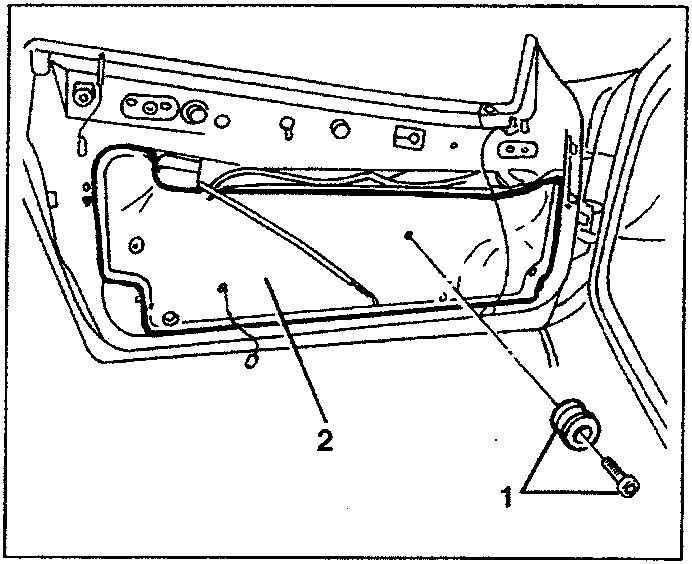

Diagram showing cam 2a and microswitch 2b in door mechanism
  1. Loosen the cam retaining bolts.
  2. Adjust the position of cam (2a) in relation to microswitch (2b) until the above condition is achieved (window lowered by 4mm during door opening). The arrows indicate possible movements. Tighten bolts (1).

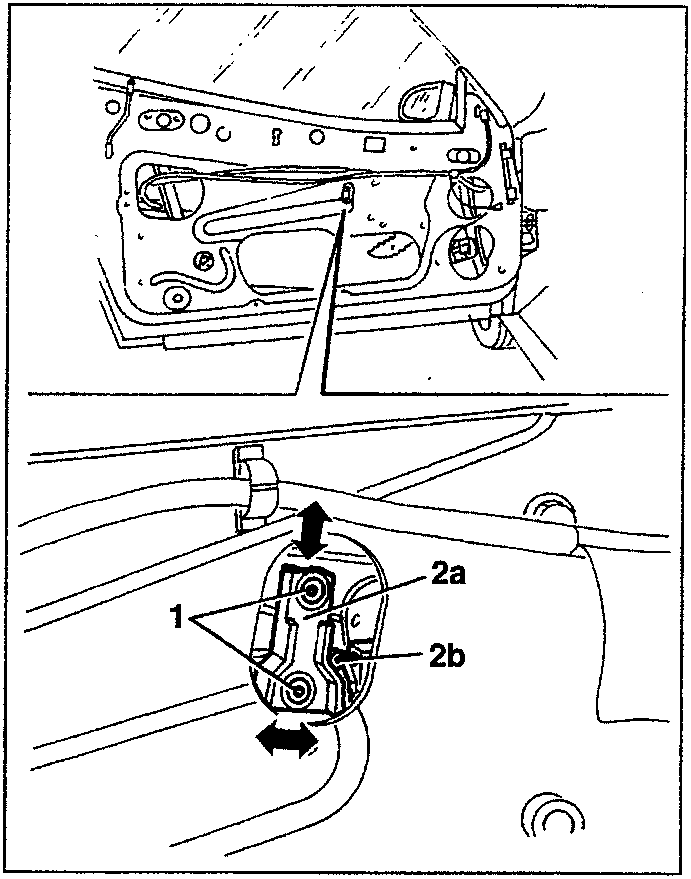

Close-up diagram showing cam 2a and microswitch 2b with adjustment arrows

– Refit the water protections and door panel (see specific paragraph).
