Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)15 · 70 Bodywork
15 · Body & interior

REMOVAL/REFITTING ('98 versions) (page 2 of 4)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Interior trim
70 BodyworkREMOVAL/REFITTING ('98 versions) · page 2 of 4

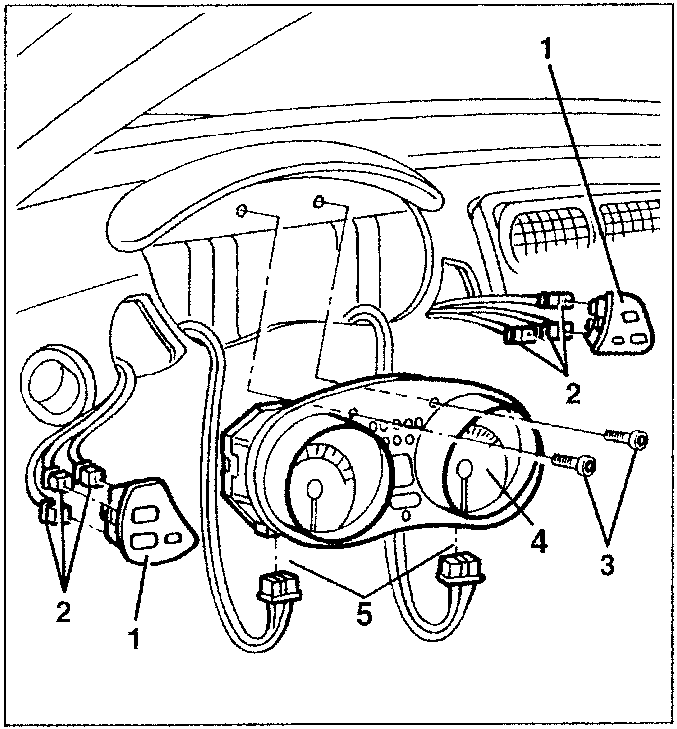

  1. Use tool 1.823.014.000 to lift and remove the two instrument panel switch panels.
  2. Disconnect the electrical connections.
  3. Loosen the two instrument panel fastening screws.
  4. Remove the panel.
  5. Disconnect the electrical connections.
Instrument panel with labeled parts 1, 2, 3, 4, 5

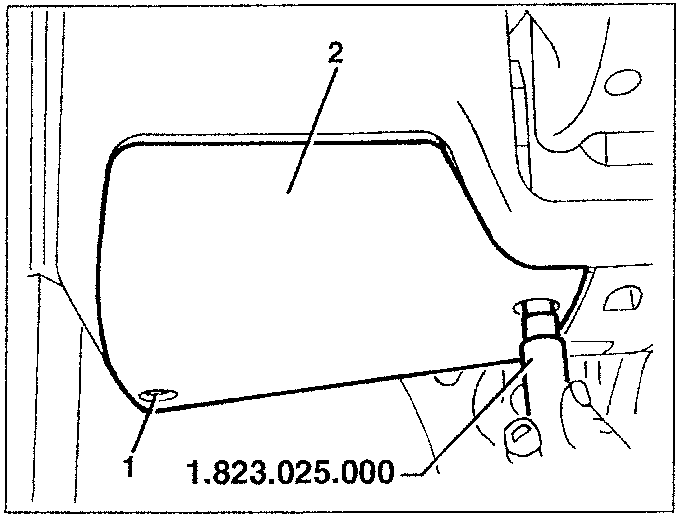

  1. Use tool no. 1.823.025.000 to turn the three bayonet pins fastening the valve guard.
  2. Remove the valve guard.
Valve guard with tool 1.823.025.000 shown

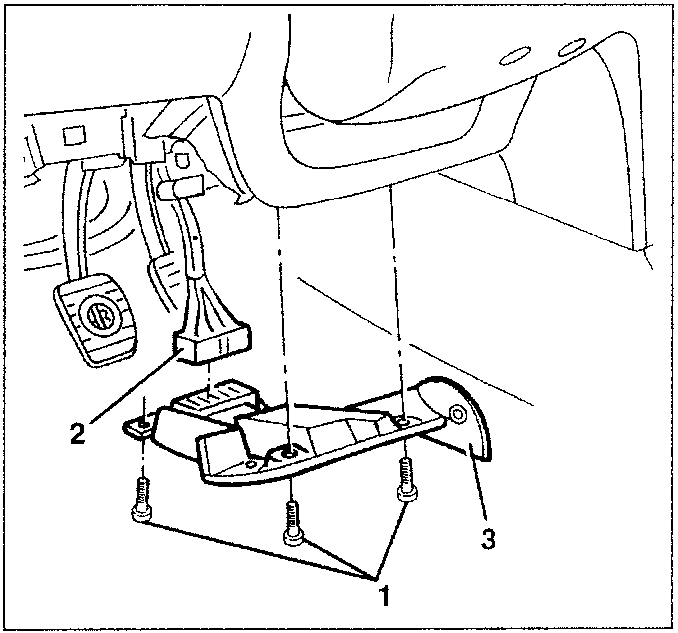

  1. Loosen the screws and lower then lower dashboard guard.
  2. Disconnect the ceiling light electrical connection.
  3. Take the guard.
Dashboard guard with labeled parts 1, 2, 3

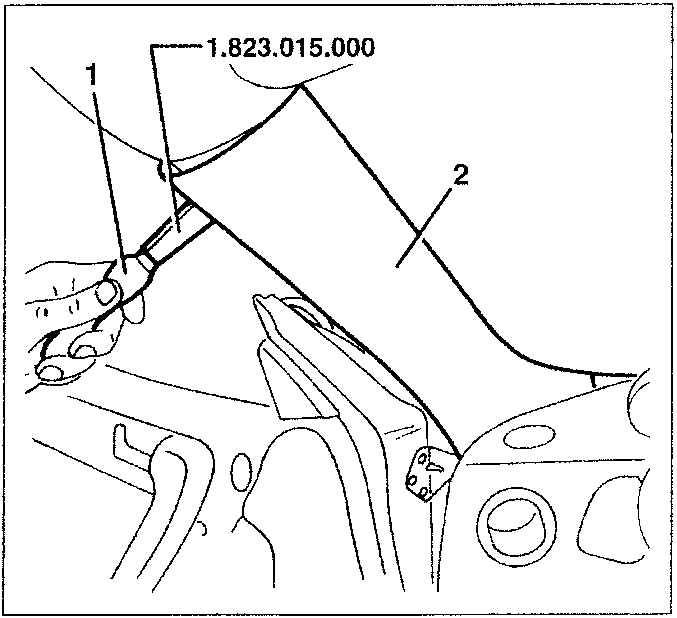

  1. Use tool no. 1.823.015.000 to lift the pins fastening the two riser panels.
  2. Remove the two riser panels.
Riser panels being removed with tool 1.823.015.000
