70 BodyworkREMOVAL/REFITTING ('98 versions) · page 3 of 4

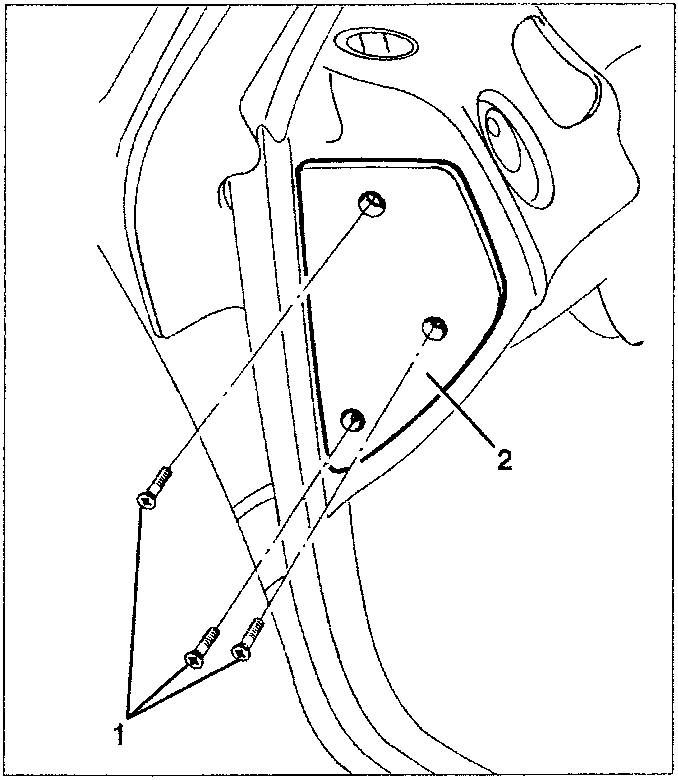

  1. From each side of the dashboard, loosen the three screws fastening the plate.
  2. Remove the plate.
Diagram showing three screws fastening a plate to the dashboard

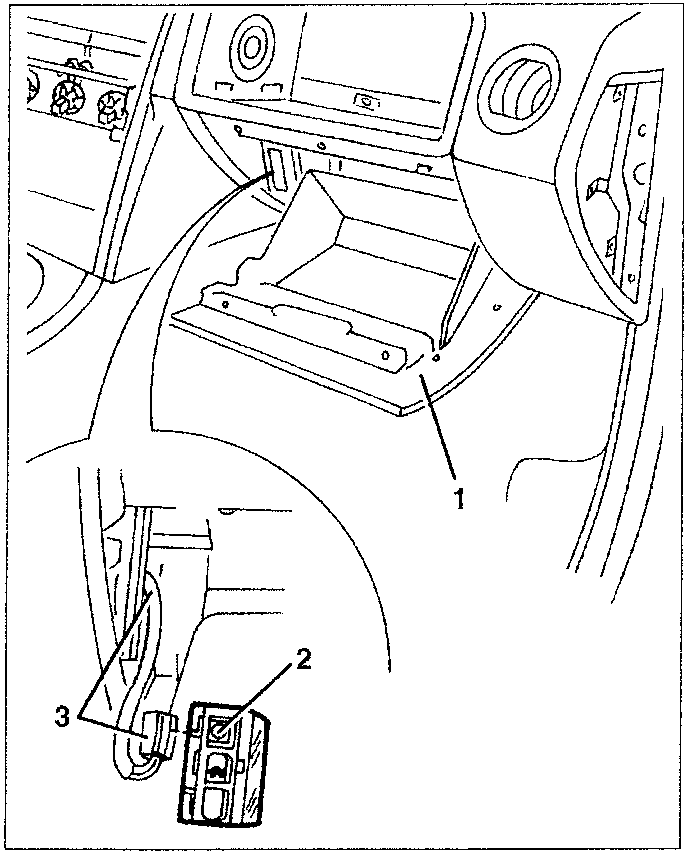

  1. Open the glove compartment.
  2. Release the complete ceiling light.
  3. Disconnect the electrical connection and release the wiring from the slot.
Diagram showing glove compartment open with wiring disconnected

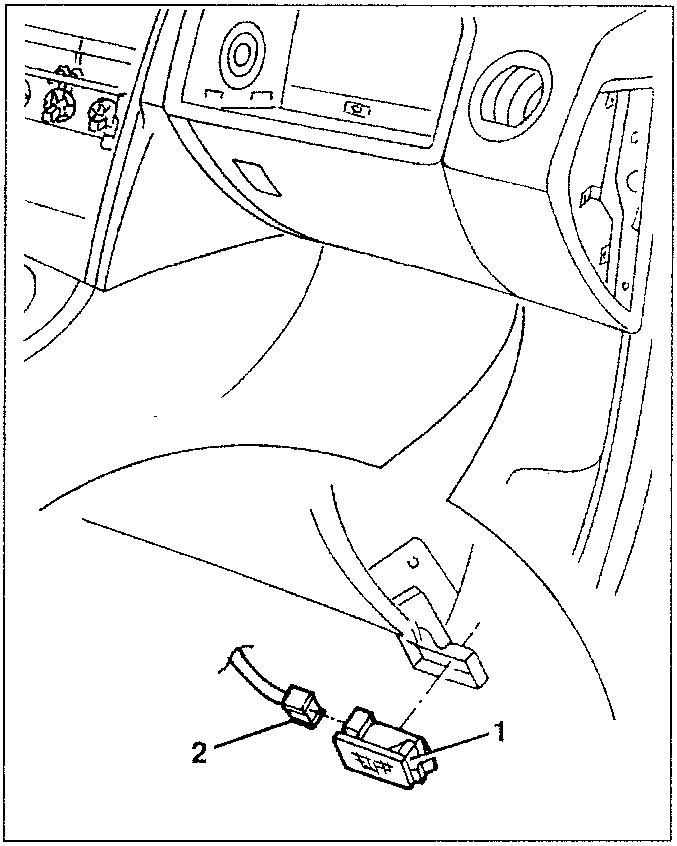

  1. Release the lower right-hand ceiling light.
  2. Disconnect the electrical connection.
Diagram showing lower right-hand ceiling light and its electrical connection

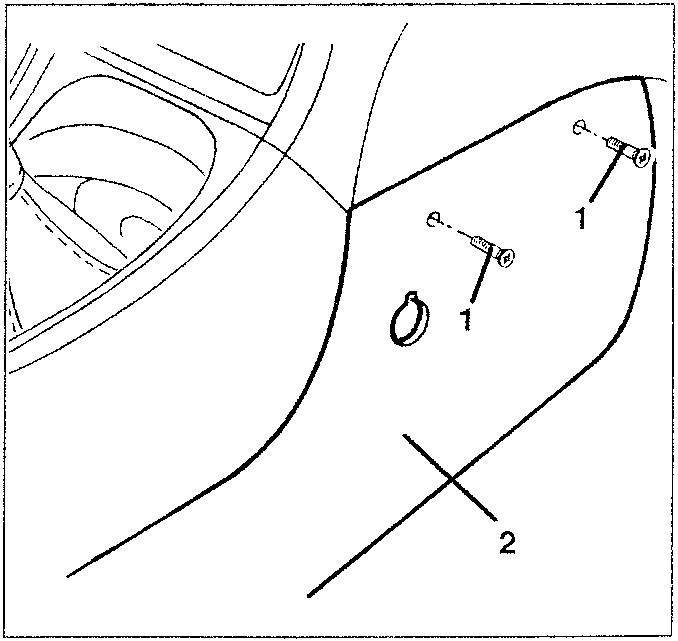

  1. From both sides of the tunnel, loosen the side cover fastening screws.
  2. Remove the side covers.
Diagram showing side cover with screws and a cross mark
