Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)15 · 70 Bodywork
15 · Body & interior

REMOVAL/REFITTING ('98 versions) (page 4 of 4)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Interior trim
70 BodyworkREMOVAL/REFITTING ('98 versions) · page 4 of 4

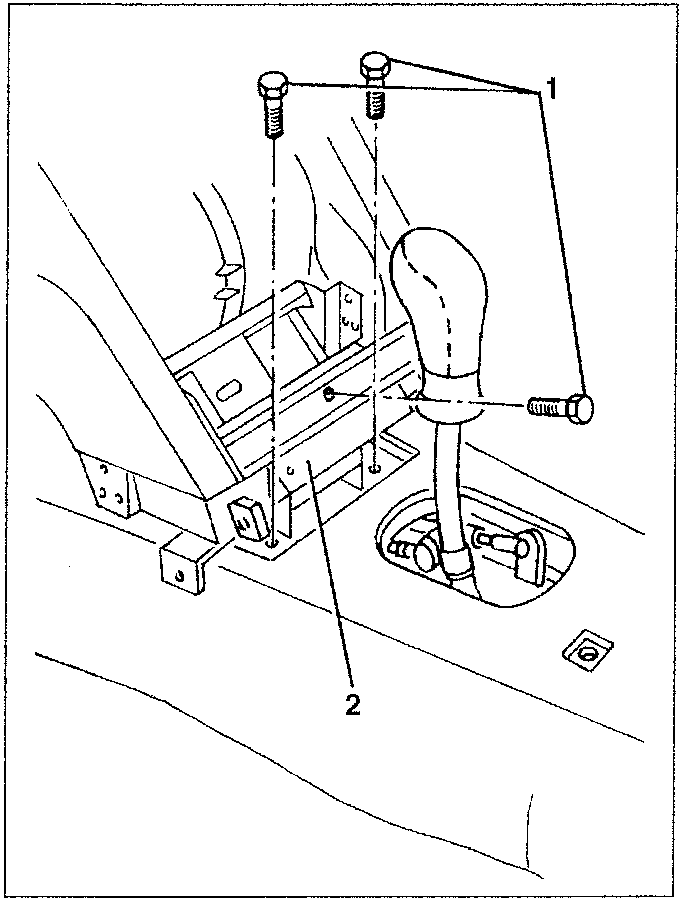

  1. Loosen the three screws fastening the lower dash-board bracket.
  2. Remove the bracket.
Diagram showing lower dashboard bracket with screws and gear lever

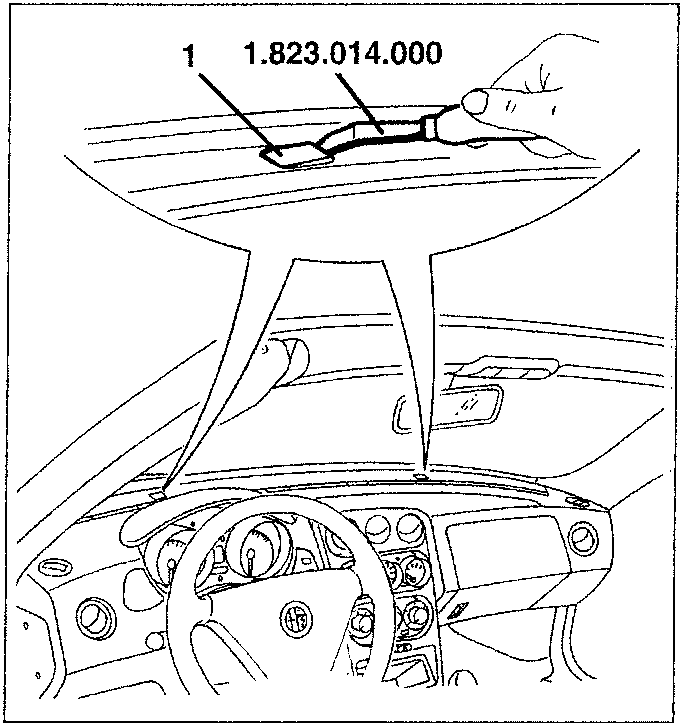

  1. Use tool no. 1.823.014.000 to remove the two upper dashboard covers.
Diagram showing hand using tool 1.823.014.000 to remove dashboard cover

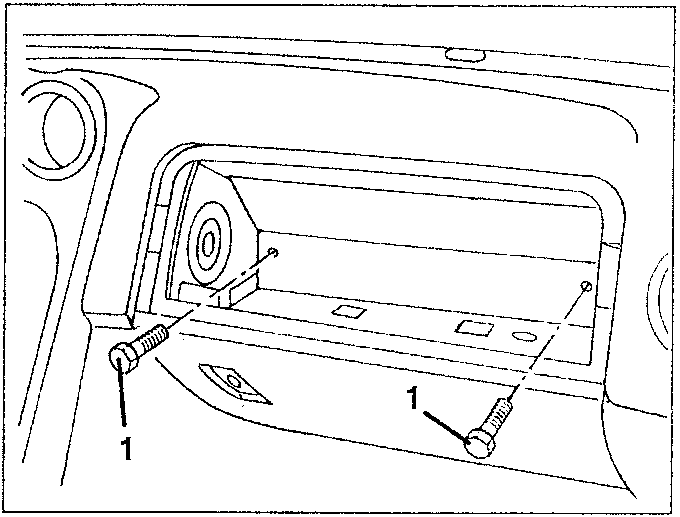

  1. Loosen the two screws on the bottom of the passenger side airbag compartment.
Diagram showing screws on bottom of passenger side airbag compartment

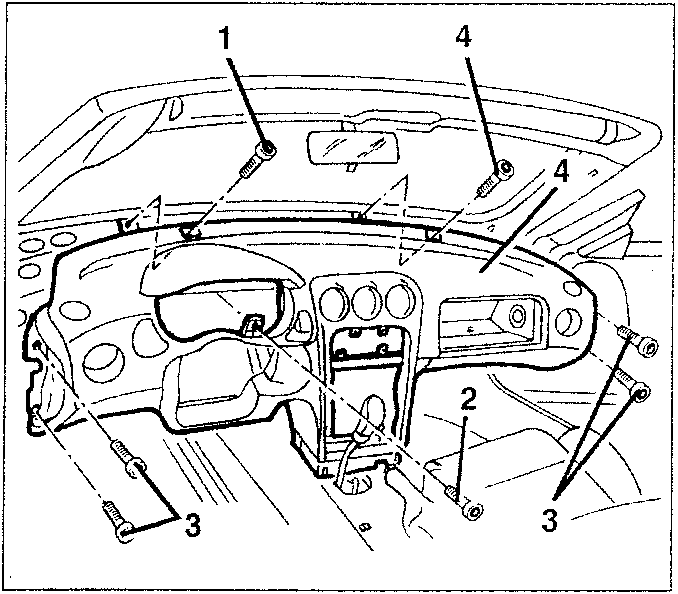

  1. Loosen the two upper screws.
  2. Loosen the central screw.
  3. Loosen the two side screws on each side.
  4. Extract the dashboard (two people are required).
Diagram showing dashboard with screws and climate control system assembly

Lubricate the climate control system assembly coupling surface with Vaseline. Refit the dashboard by reversing the removal sequence.
