Wiring Diagram Sheet 10: Bulkhead LHD - 3
- Make
- Aston Martin
- Model
- DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
- Year
- 1994–1998
- Section
- Wiring diagrams – 97 MY › Wiring Diagram Sheet 10: Bulkhead LHD - 3
ElectricsWiring Diagram Sheet 10: Bulkhead LHD - 3
Wiring Diagram Sheet 10: Bulkhead LHD - 3

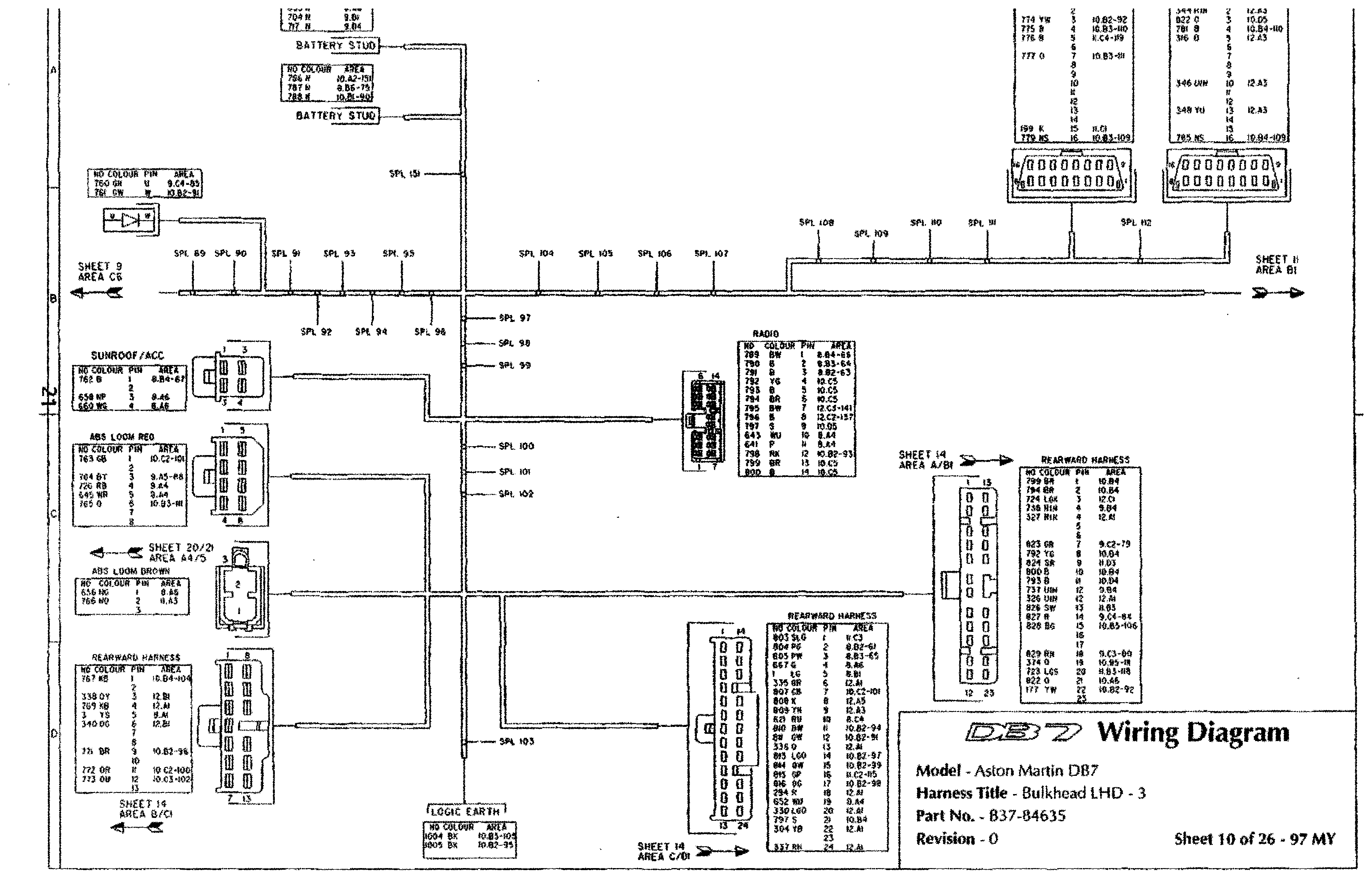

Harness: Bulkhead LHD - 3. Drawing part no. B37-84635, revision 0. Sheet 10 of 26, 97 MY.

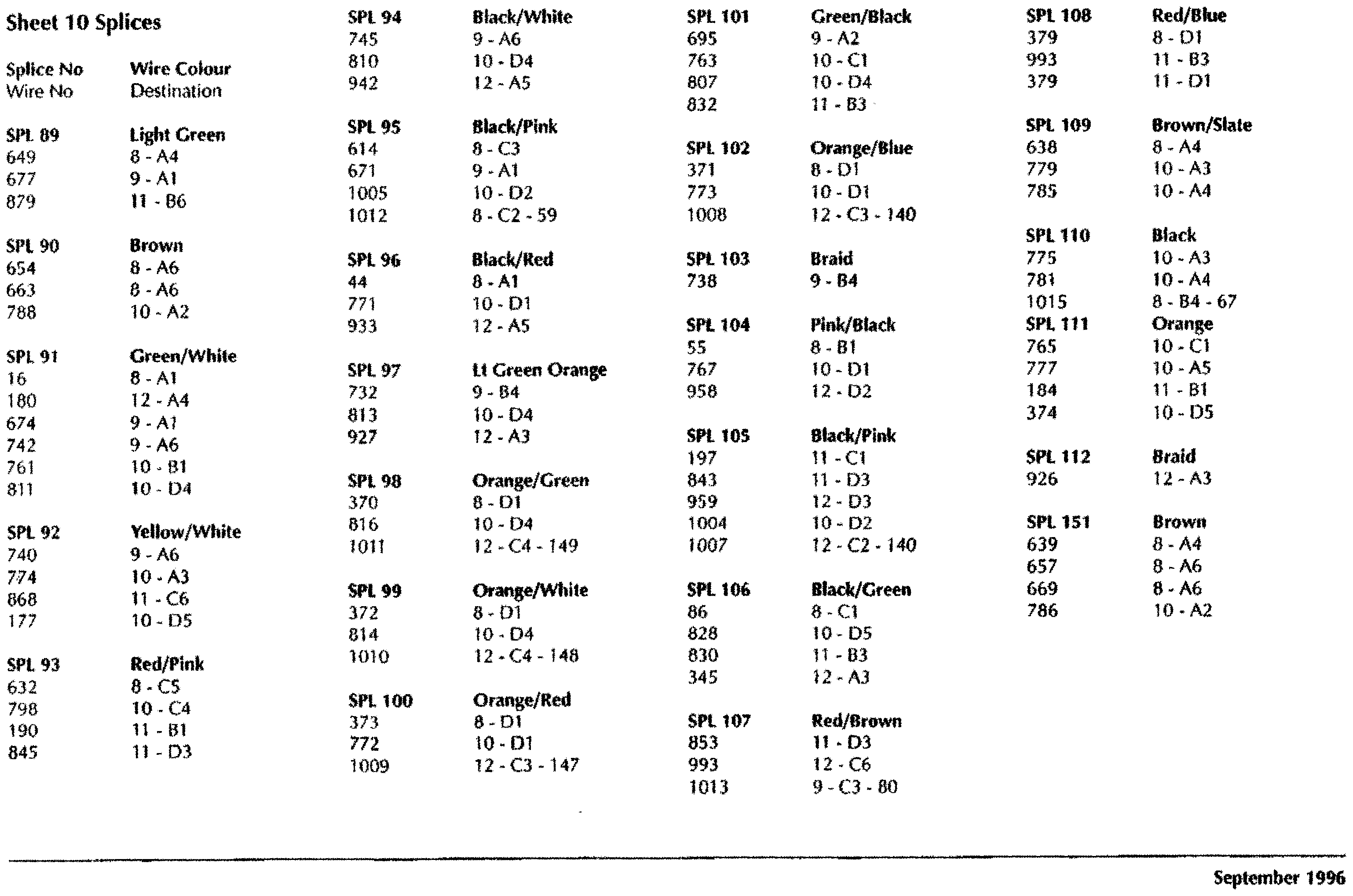

Sheet 10 splices
