Wiring Diagram Sheet 24: Passengers Sill
- Make
- Aston Martin
- Model
- DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
- Year
- 1994–1998
- Section
- Wiring diagrams – 97 MY › Wiring Diagram Sheet 24: Passengers Sill
ElectricsWiring Diagram Sheet 24: Passengers Sill
Wiring Diagram Sheet 24: Passengers Sill

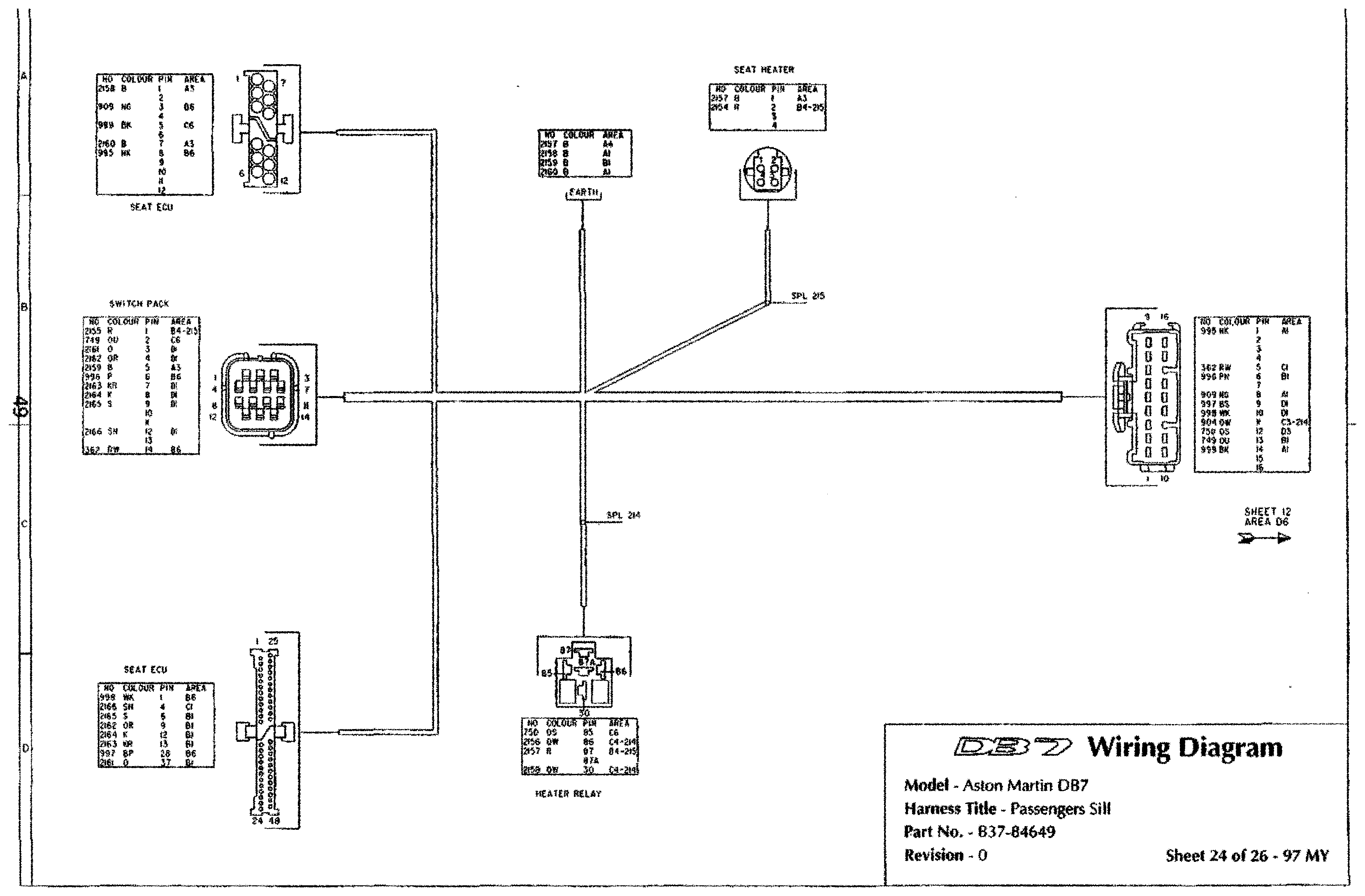

Harness: Passengers Sill. Drawing part no. B37-84649, revision 0. Sheet 24 of 26, 97 MY.

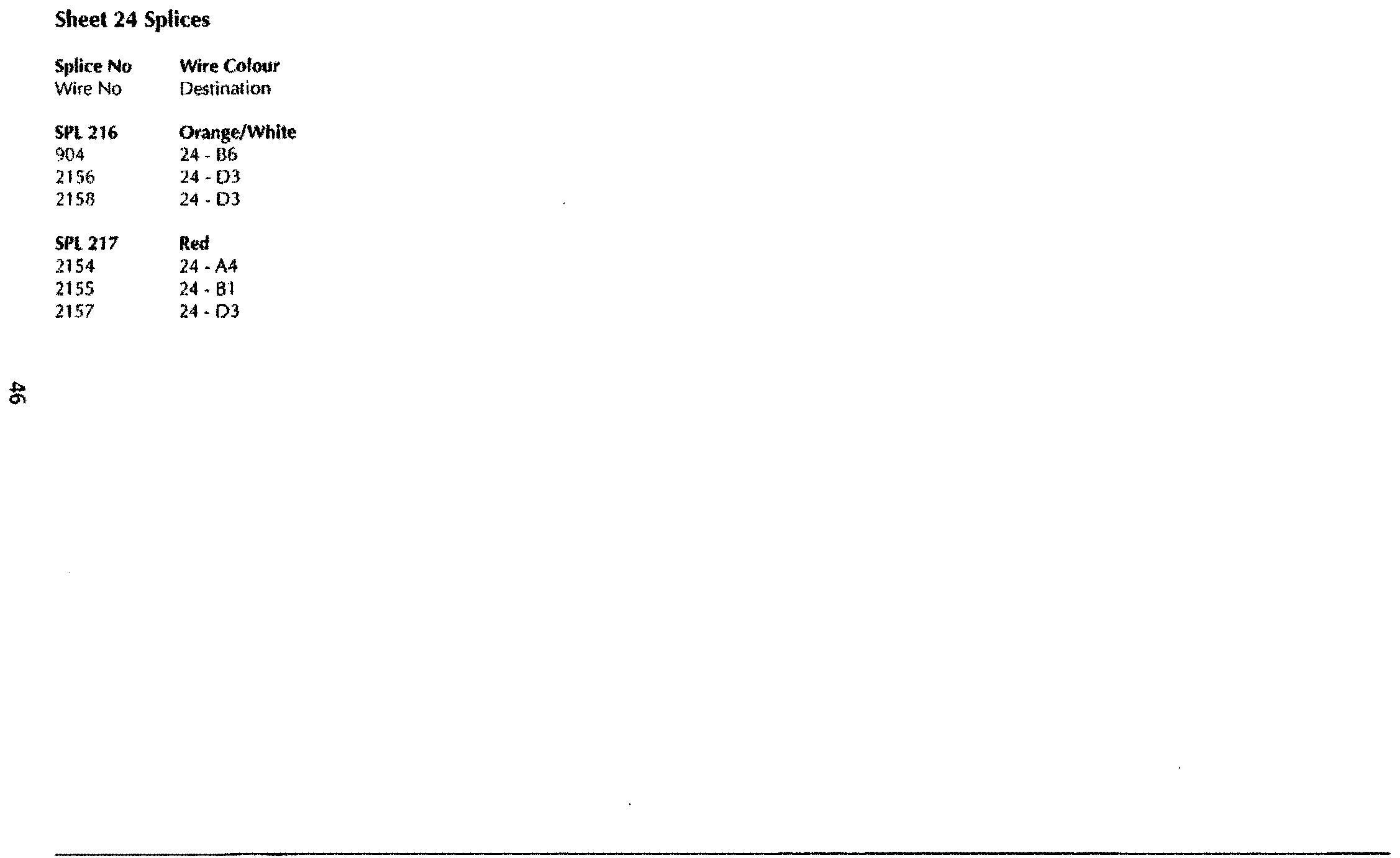

Sheet 24 splices
