Wiring Diagram Sheet 5: Engine 1
- Make
- Aston Martin
- Model
- DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
- Year
- 1994–1998
- Section
- Wiring diagrams – 97 MY › Wiring Diagram Sheet 5: Engine 1
ElectricsWiring Diagram Sheet 5: Engine 1

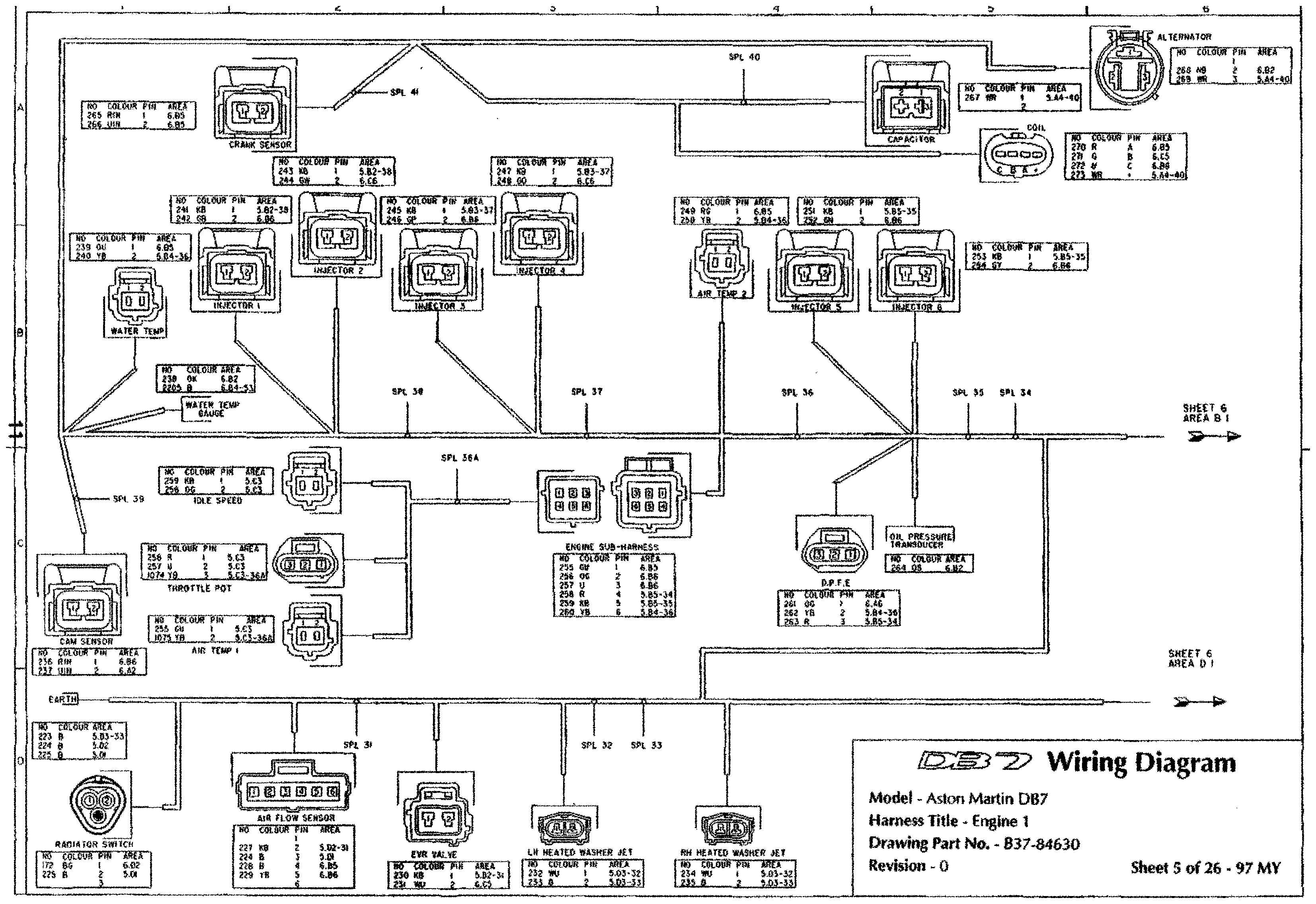

Wiring Diagram Sheet 5: Engine 1
Harness: Engine 1. Drawing part no. B37-84630, revision 0. Sheet 5 of 26, 97 MY.

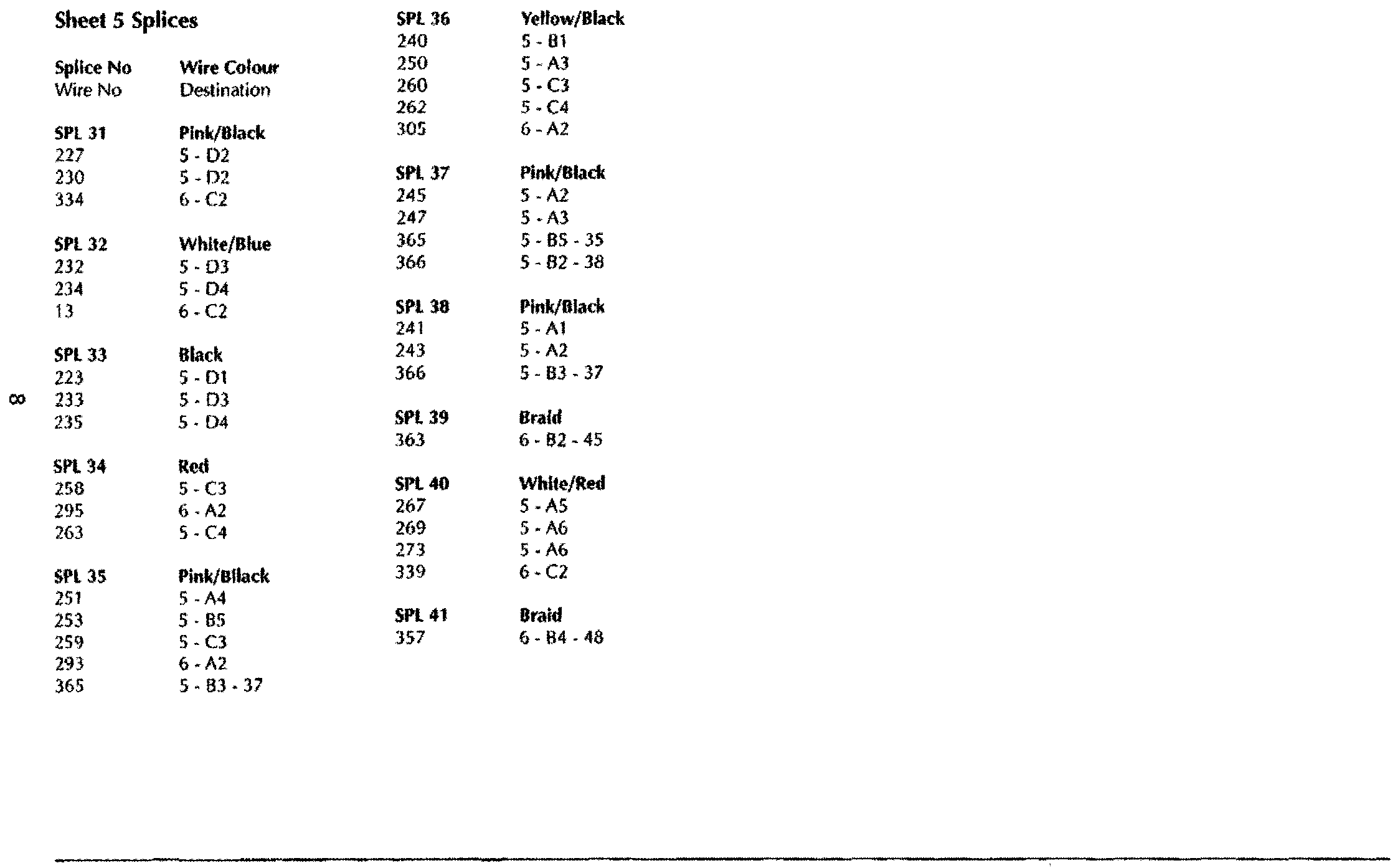

Sheet 5 splices
