Wiring Diagram Sheet 18: Hood - 1
- Make
- Aston Martin
- Model
- DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
- Year
- 1994–1998
- Section
- Wiring diagrams – 97 MY › Wiring Diagram Sheet 18: Hood - 1
ElectricsWiring Diagram Sheet 18: Hood - 1
Wiring Diagram Sheet 18: Hood - 1

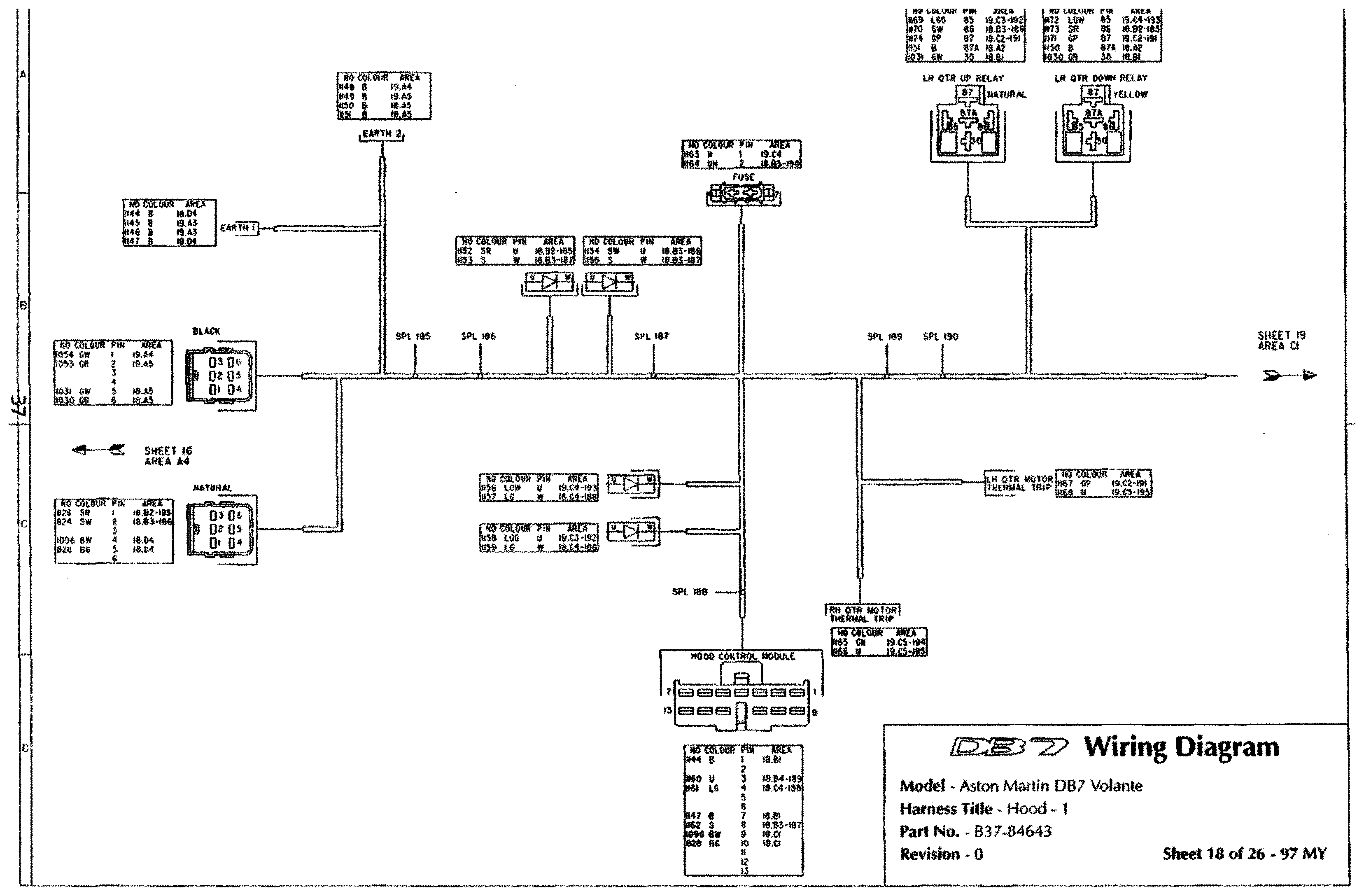

Harness: Hood - 1. Drawing part no. B37-84643, revision 0. Sheet 18 of 26, 97 MY.

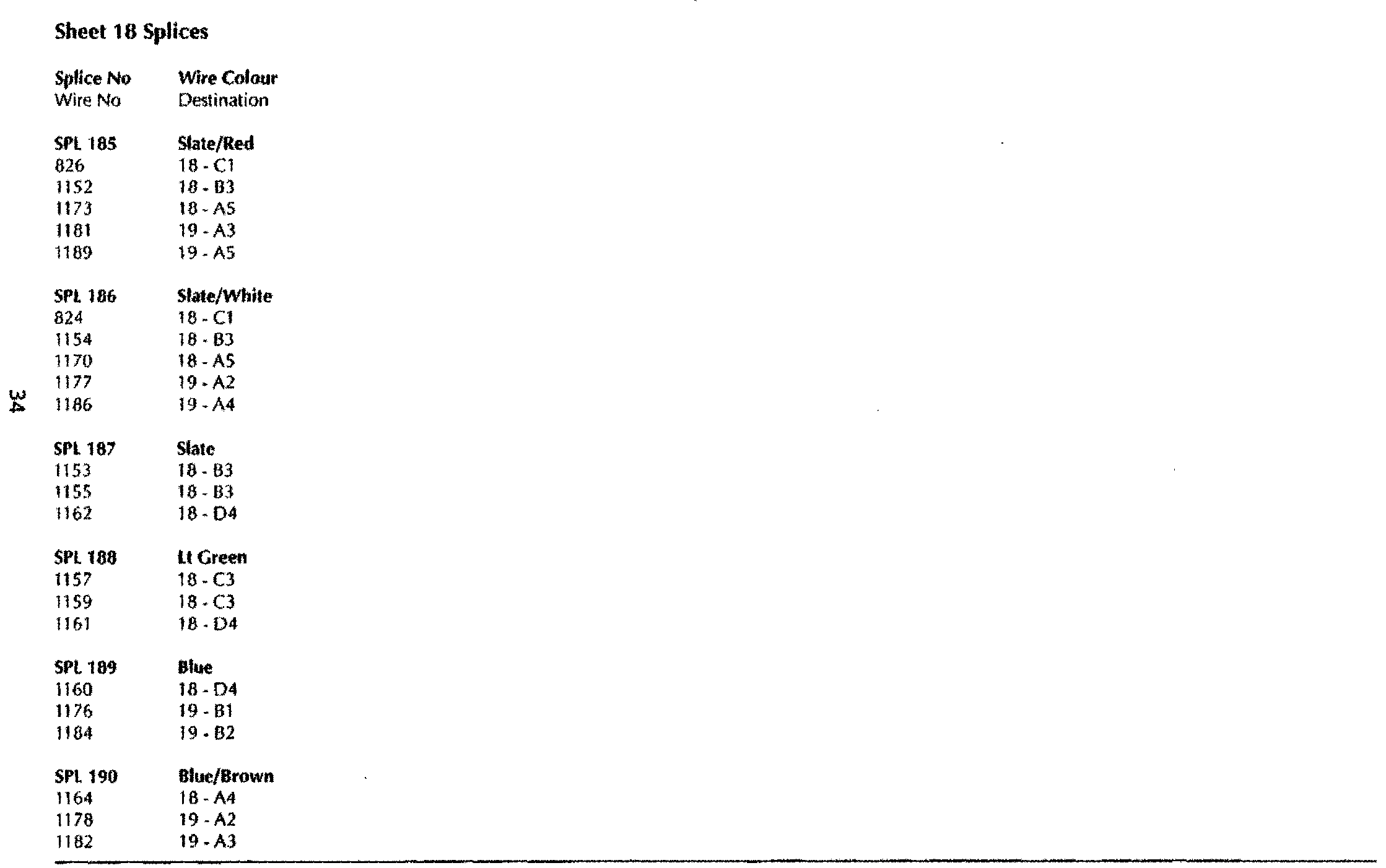

Sheet 18 splices
