ElectricsWiring Diagram Sheet 6: Engine 2
Wiring Diagram Sheet 6: Engine 2

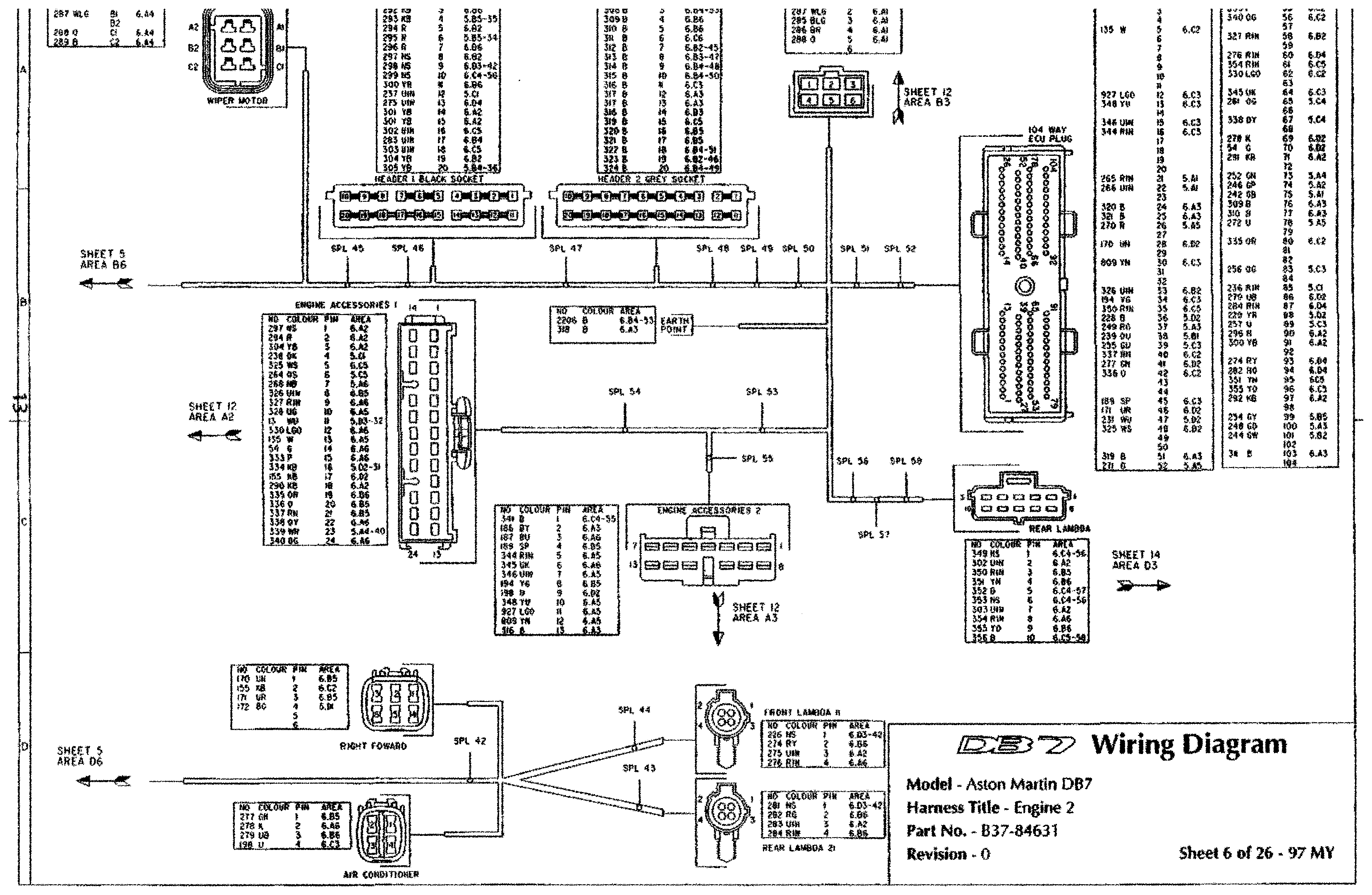

Harness: Engine 2. Drawing part no. B37-84631, revision 0. Sheet 6 of 26, 97 MY.

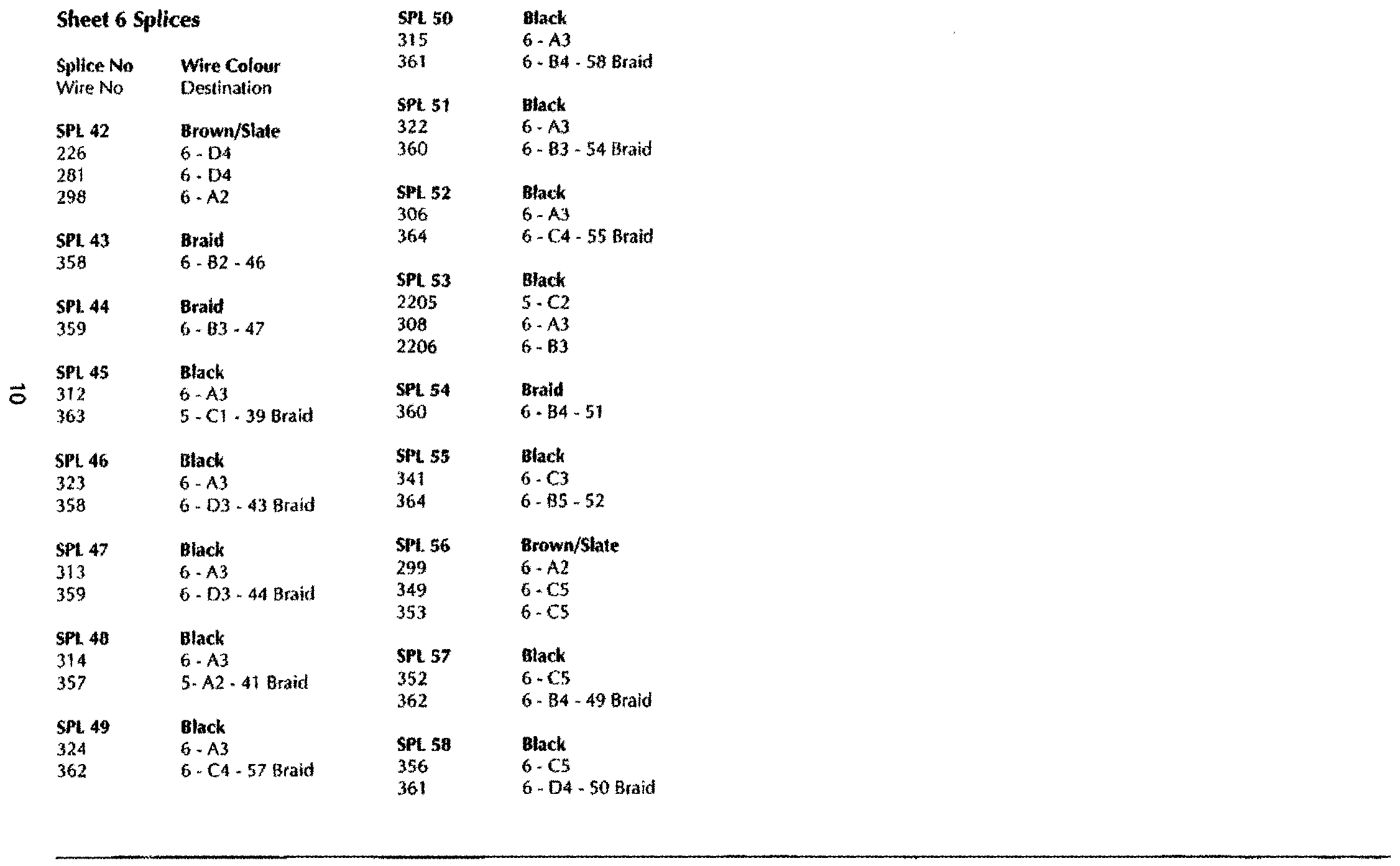

Sheet 6 splices
