Wiring Diagram Sheet 12: Bulkhead LHD - 5
- Make
- Aston Martin
- Model
- DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
- Year
- 1994–1998
- Section
- Wiring diagrams – 97 MY › Wiring Diagram Sheet 12: Bulkhead LHD - 5
ElectricsWiring Diagram Sheet 12: Bulkhead LHD - 5
Wiring Diagram Sheet 12: Bulkhead LHD - 5

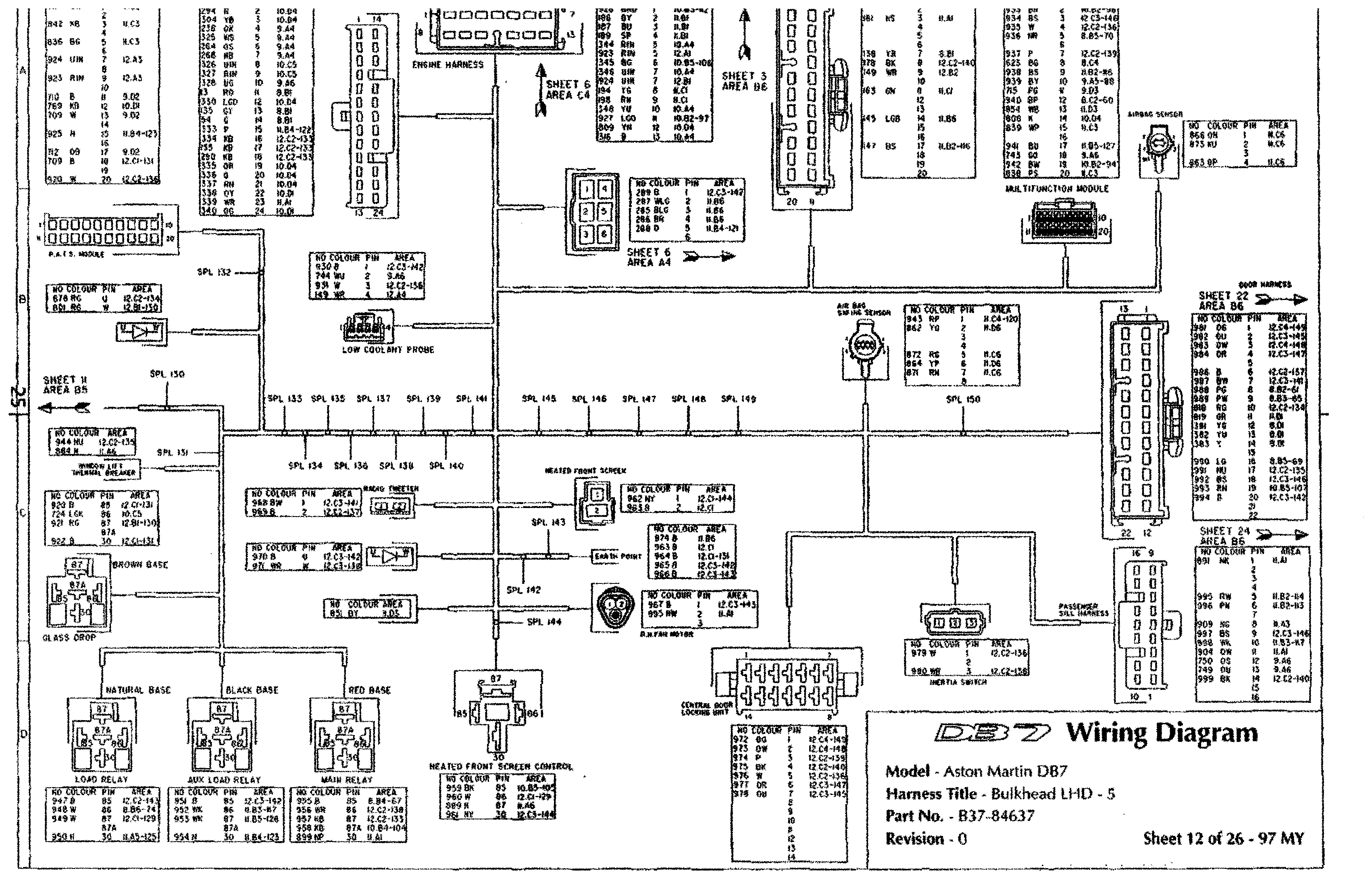

Harness: Bulkhead LHD - 5. Drawing part no. B37-84637, revision 0. Sheet 12 of 26, 97 MY.

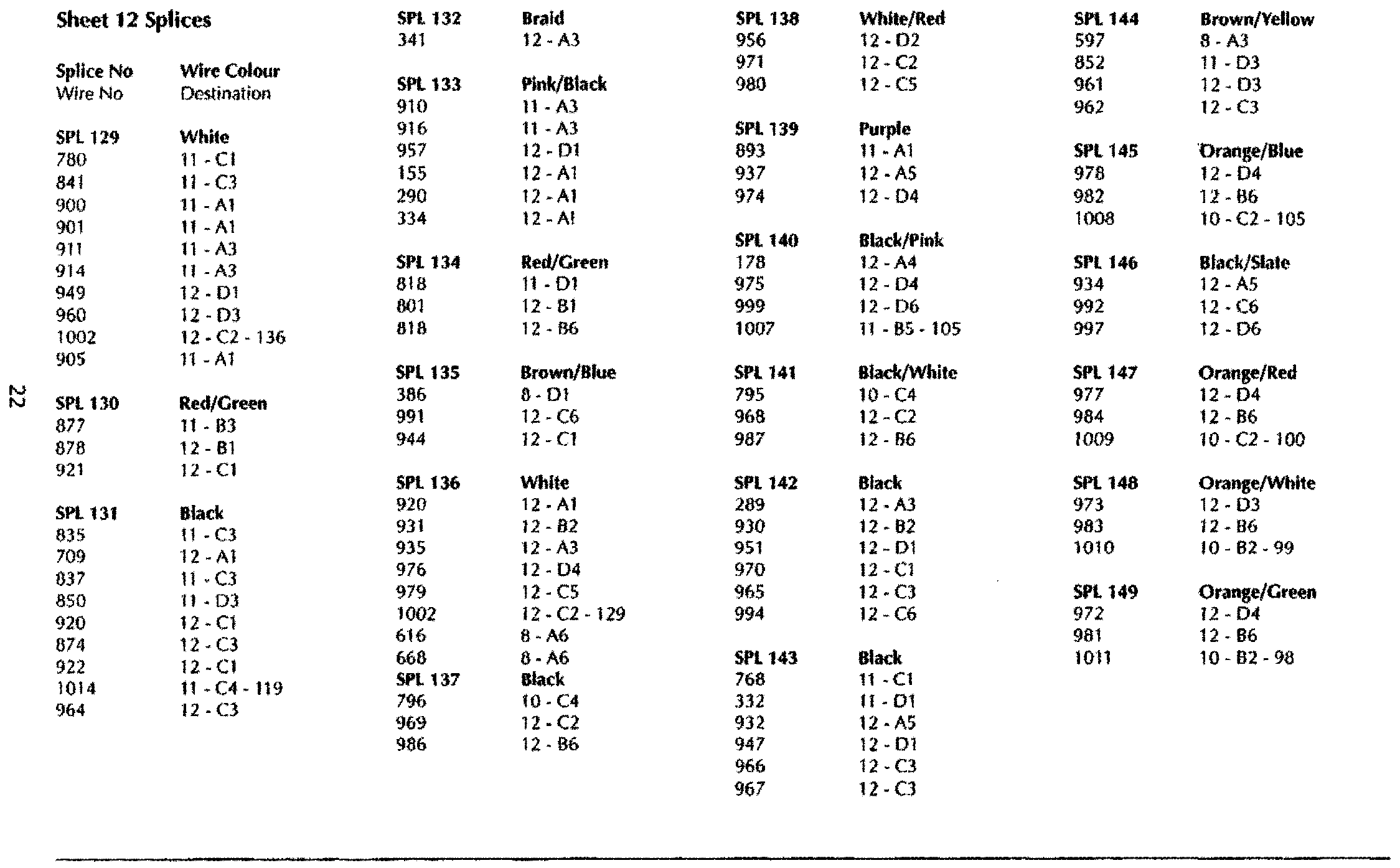

Sheet 12 splices
