Wiring Diagram Sheet 20: ABS - LHD

Make

Aston Martin

Model

DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning

Year

1994–1998

Section

Wiring diagrams – 97 MY › Wiring Diagram Sheet 20: ABS - LHD

ElectricsWiring Diagram Sheet 20: ABS - LHD

Wiring Diagram Sheet 20: ABS - LHD

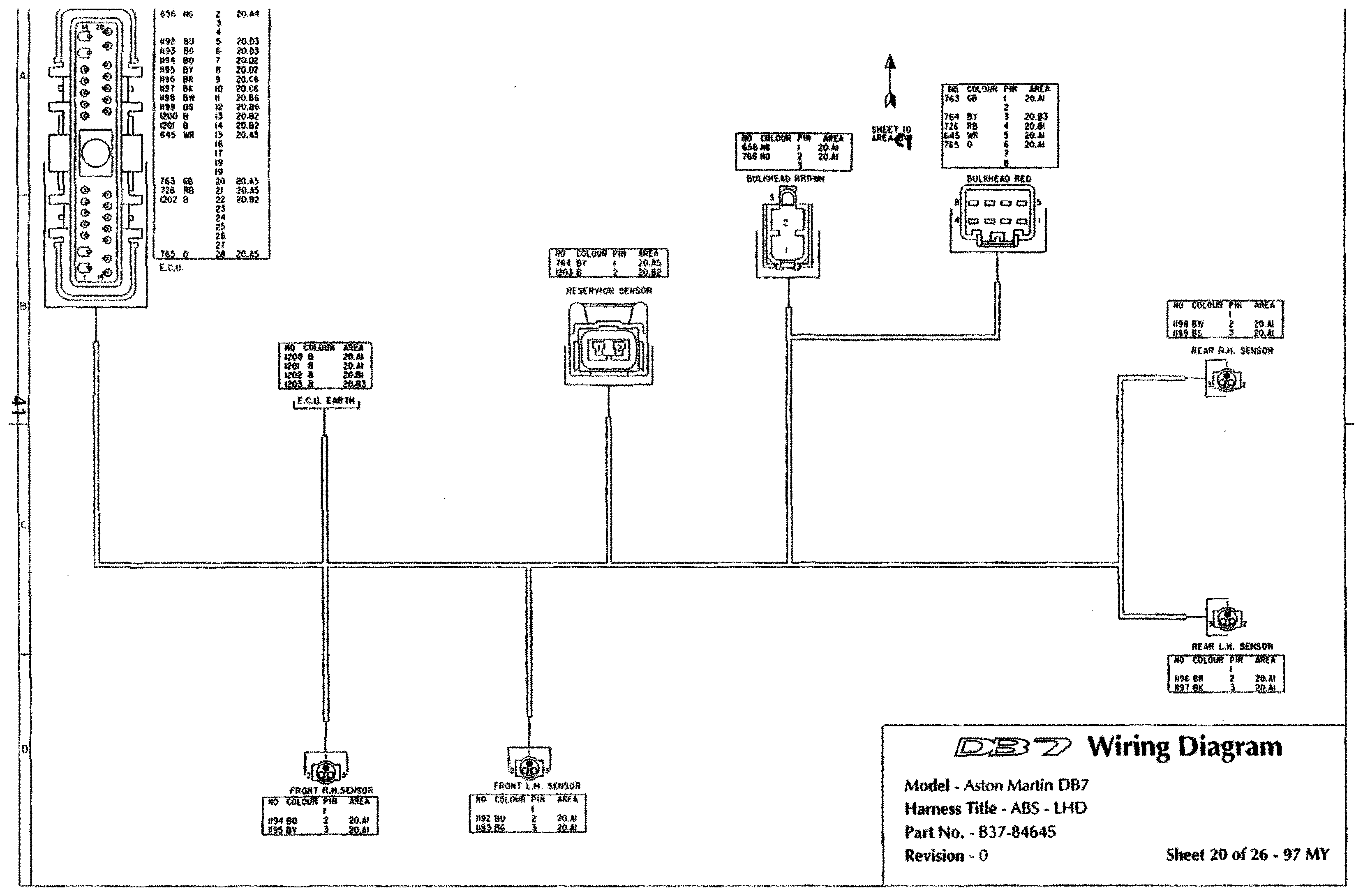

Harness: ABS - LHD. Drawing part no. B37-84645, revision 0. Sheet 20 of 26, 97 MY.

View full sizeFit to page

Sheet 20 splices

No splices on sheet 20.
