Wiring Diagram Sheet 26: Seat
- Make
- Aston Martin
- Model
- DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
- Year
- 1994–1998
- Section
- Wiring diagrams – 97 MY › Wiring Diagram Sheet 26: Seat
ElectricsWiring Diagram Sheet 26: Seat
Wiring Diagram Sheet 26: Seat

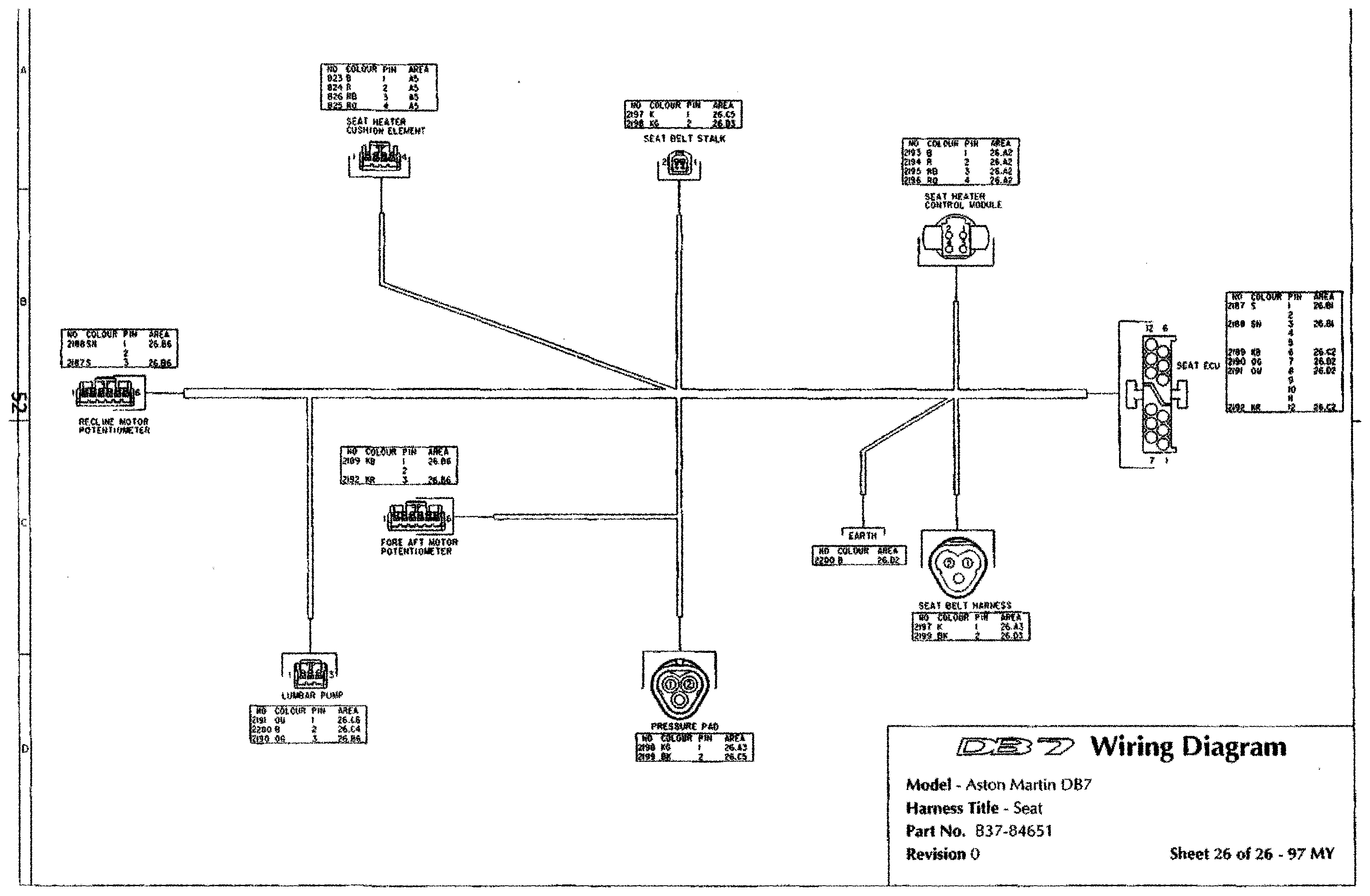

Harness: Seat. Drawing part no. B37-84651, revision 0. Sheet 26 of 26, 97 MY.
Sheet 26 splices
No splices on sheet 26.
