Wiring Diagram Sheet 8: Bulkhead LHD - 1
- Make
- Aston Martin
- Model
- DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
- Year
- 1994–1998
- Section
- Wiring diagrams – 97 MY › Wiring Diagram Sheet 8: Bulkhead LHD - 1
‹ Prev Wiring Diagram Sheet 7: Auto/Manual TransmissionNext › Wiring Diagram Sheet 9: Bulkhead LHD - 2
ElectricsWiring Diagram Sheet 8: Bulkhead LHD - 1
Wiring Diagram Sheet 8: Bulkhead LHD - 1

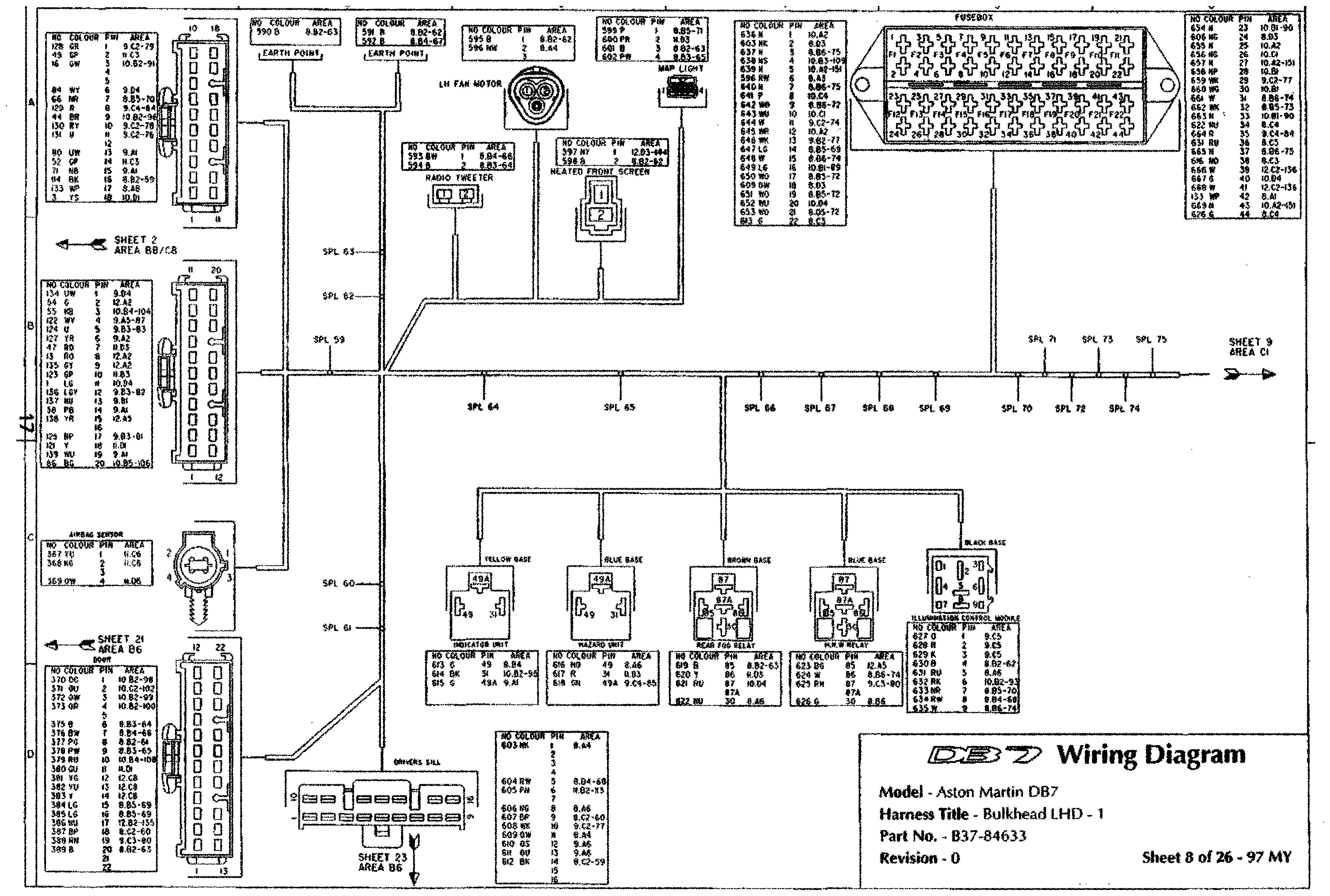

Harness: Bulkhead LHD - 1. Drawing part no. B37-84633, revision 0. Sheet 8 of 26, 97 MY.

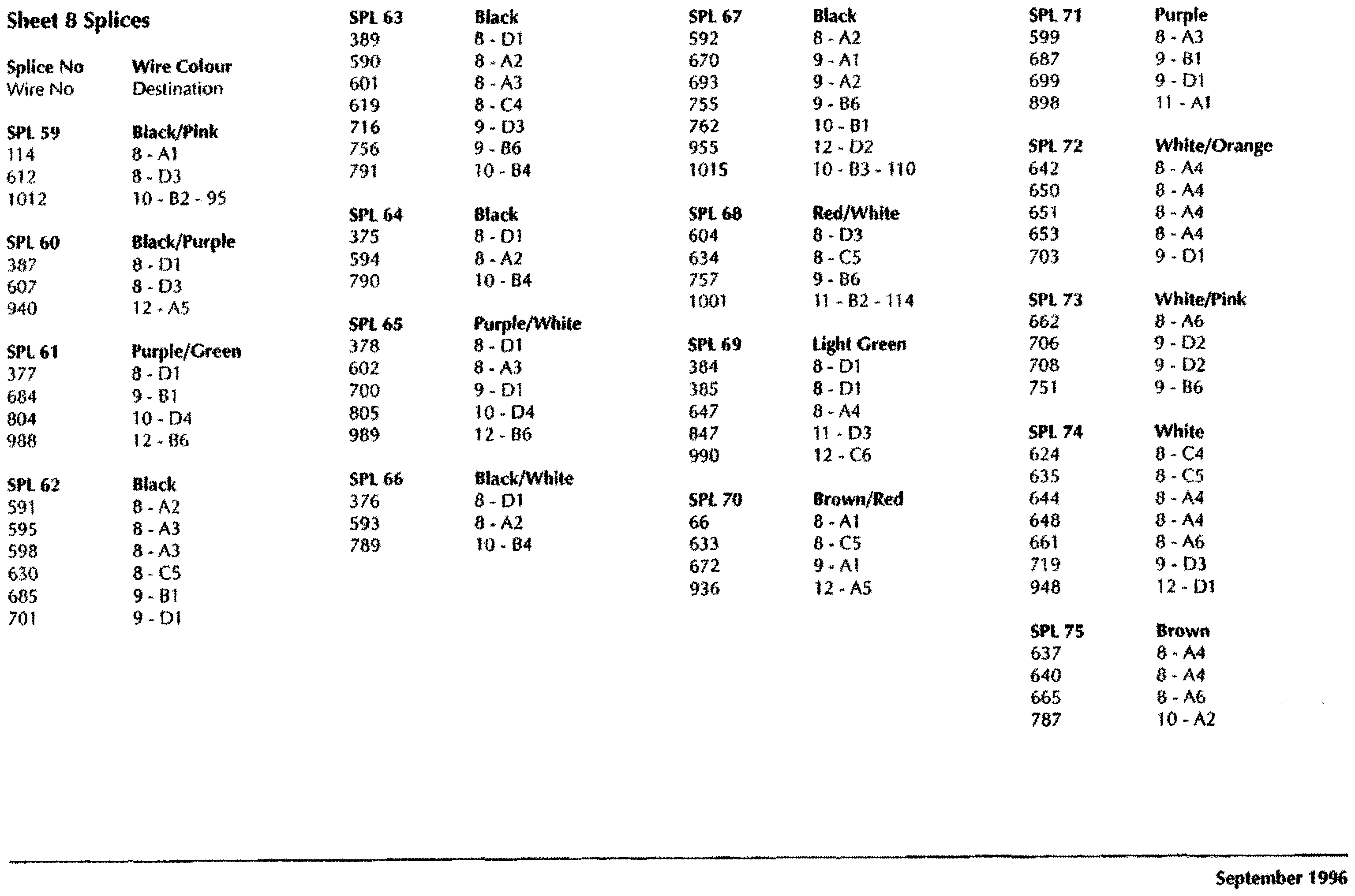

Sheet 8 splices
