Wiring Diagram Sheet 3: Right Forward
- Make
- Aston Martin
- Model
- DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
- Year
- 1994–1998
- Section
- Wiring diagrams – 97 MY › Wiring Diagram Sheet 3: Right Forward
ElectricsWiring Diagram Sheet 3: Right Forward
Wiring Diagram Sheet 3: Right Forward

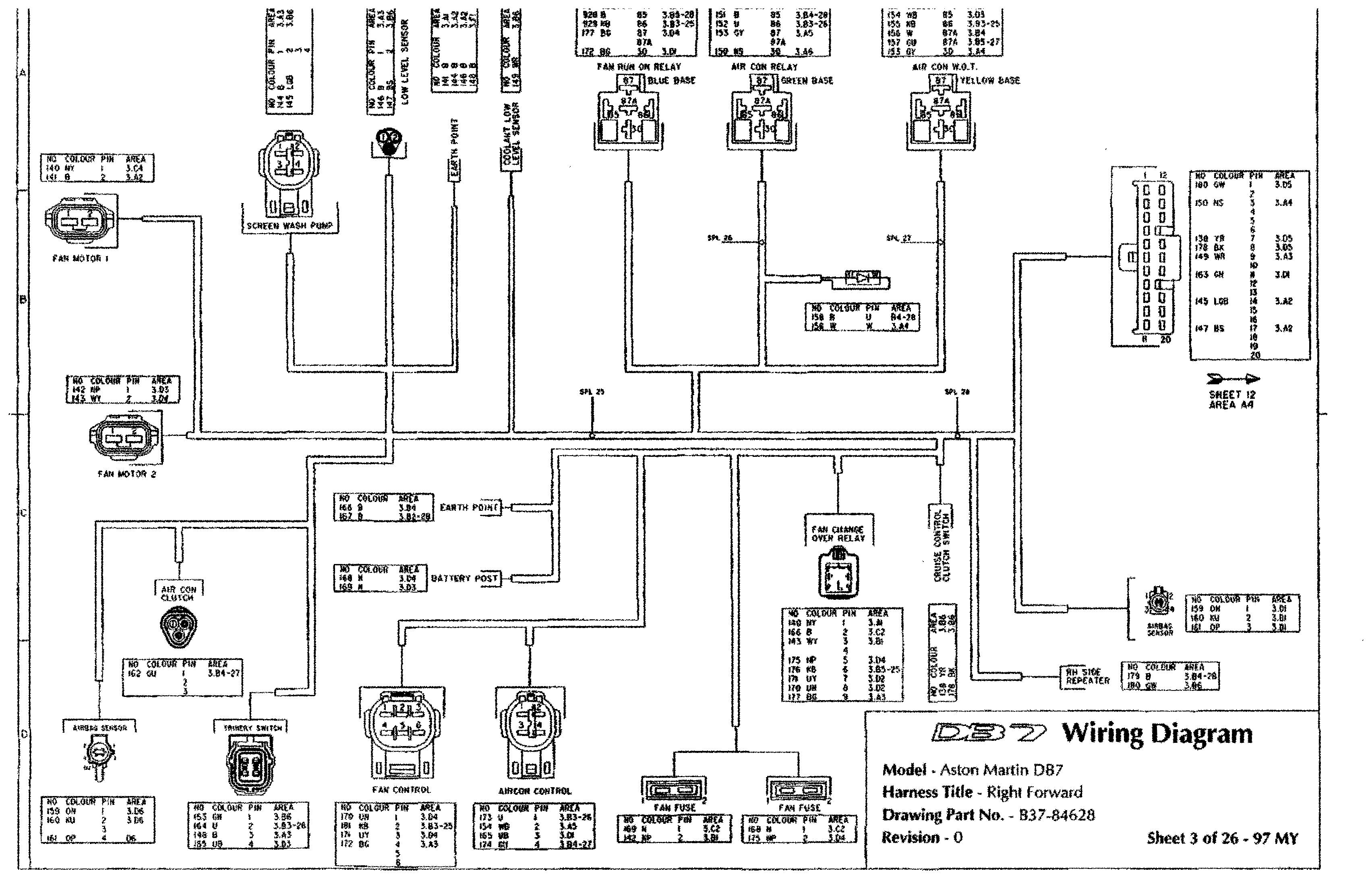

Harness: Right Forward. Drawing part no. B37-84628, revision 0. Sheet 3 of 26, 97 MY.

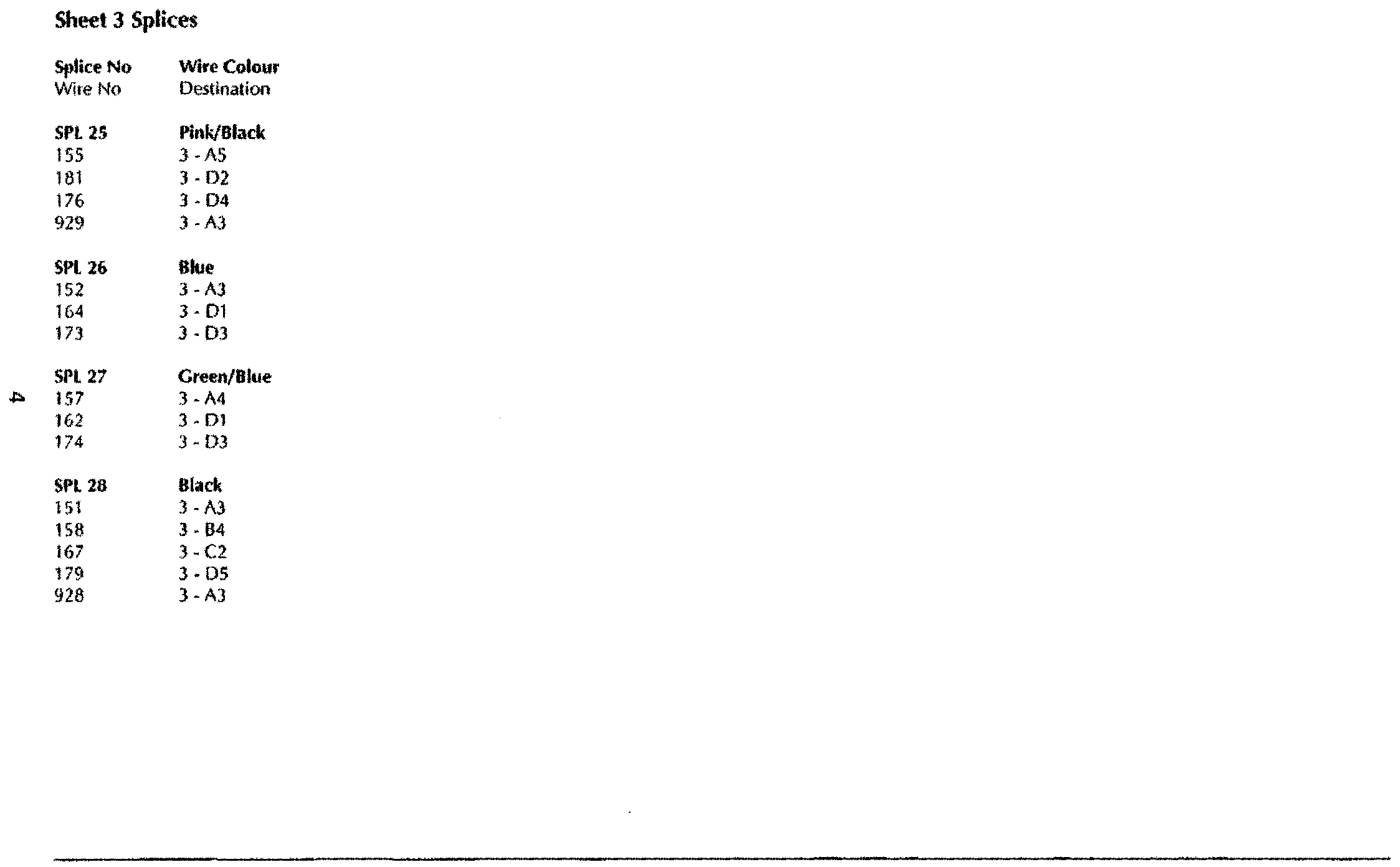

Sheet 3 splices
