Wiring Diagram Sheet 25: Boot Fusebox
- Make
- Aston Martin
- Model
- DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
- Year
- 1994–1998
- Section
- Wiring diagrams – 97 MY › Wiring Diagram Sheet 25: Boot Fusebox
ElectricsWiring Diagram Sheet 25: Boot Fusebox
Wiring Diagram Sheet 25: Boot Fusebox

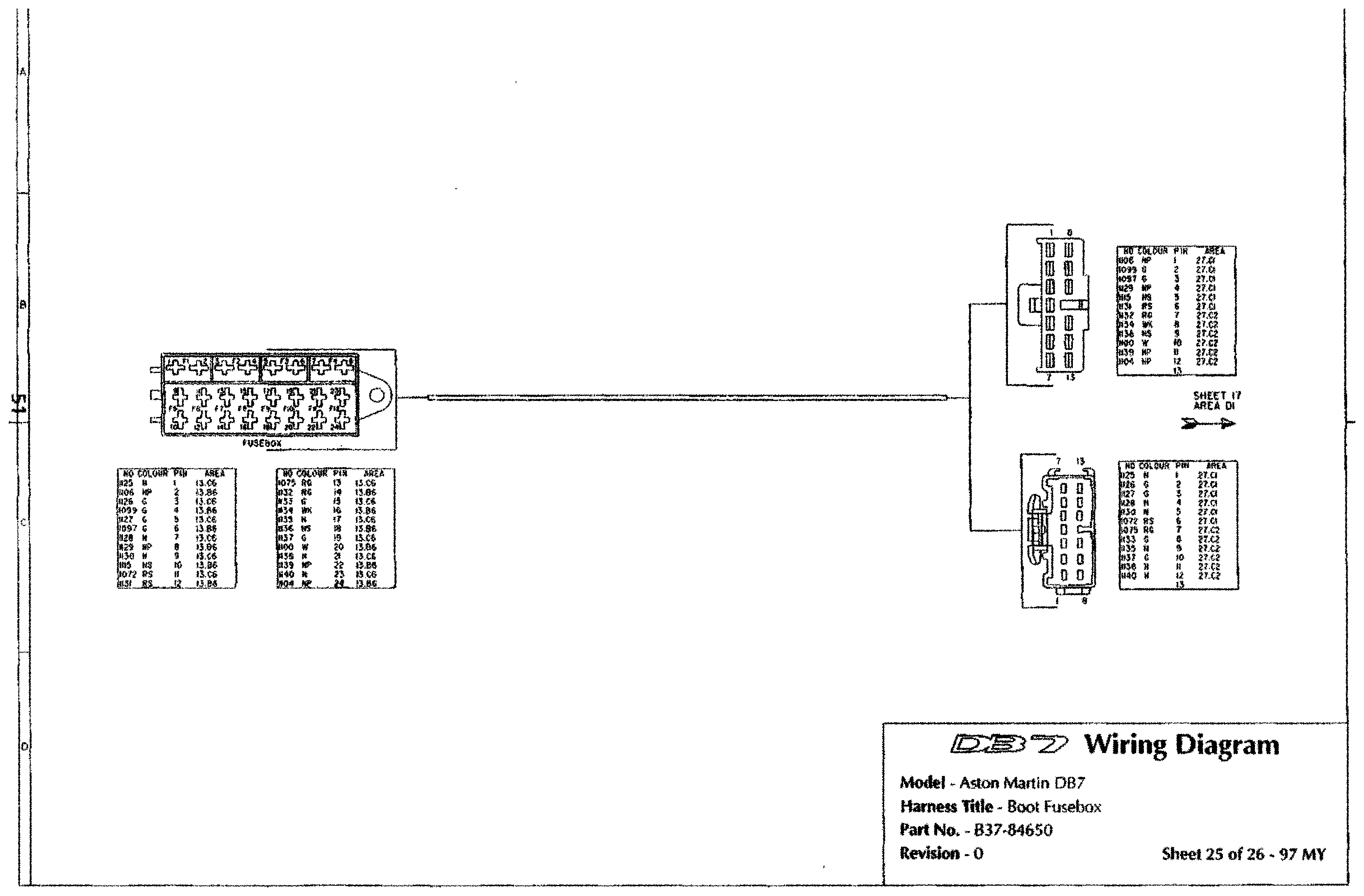

Harness: Boot Fusebox. Drawing part no. B37-84650, revision 0. Sheet 25 of 26, 97 MY.
Sheet 25 splices
No splices on sheet 25.
