Wiring Diagram Sheet 21: Drivers Door

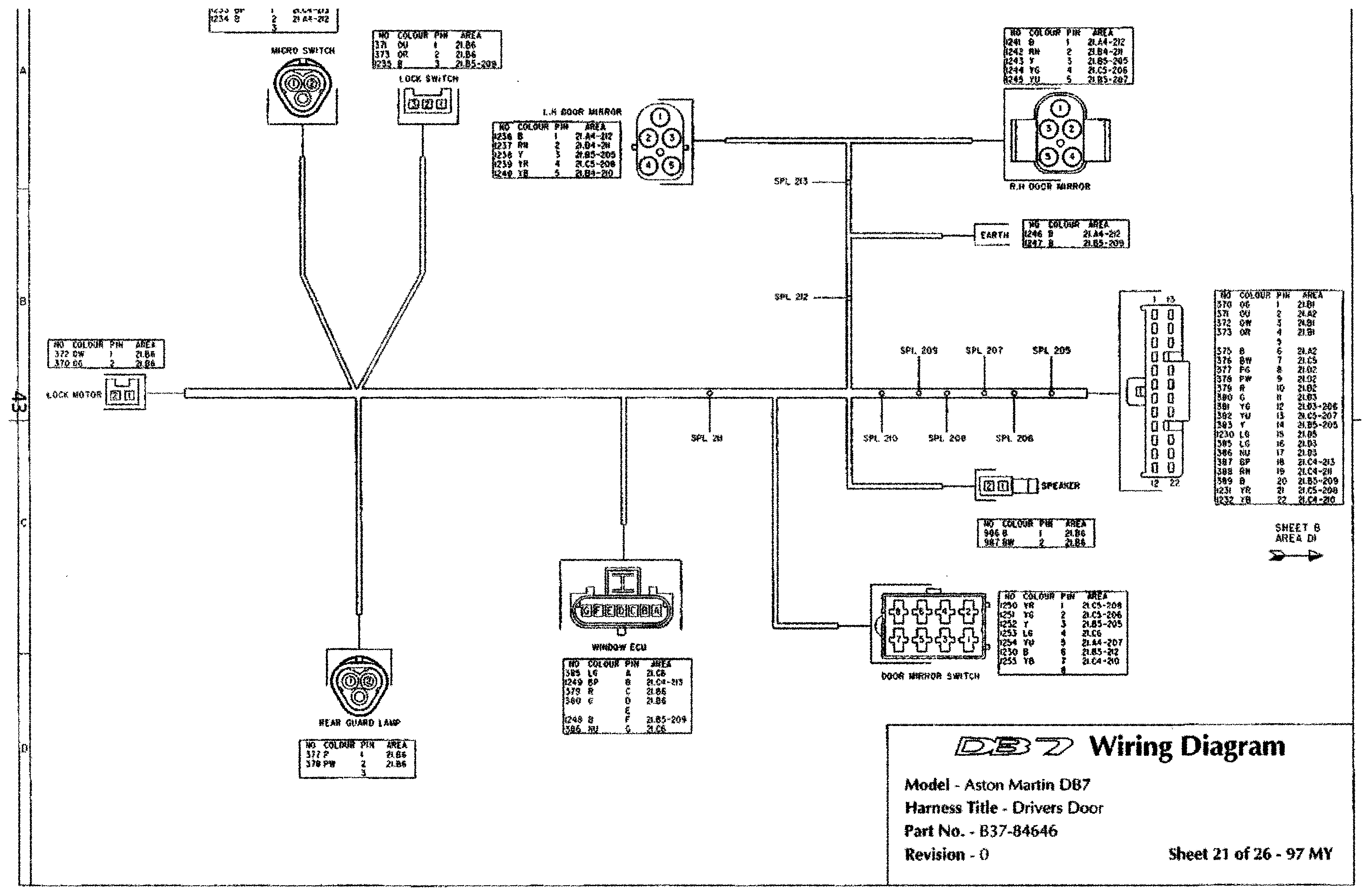

Harness: Drivers Door. Drawing part no. B37-84646, revision 0. Sheet 21 of 26, 97 MY.

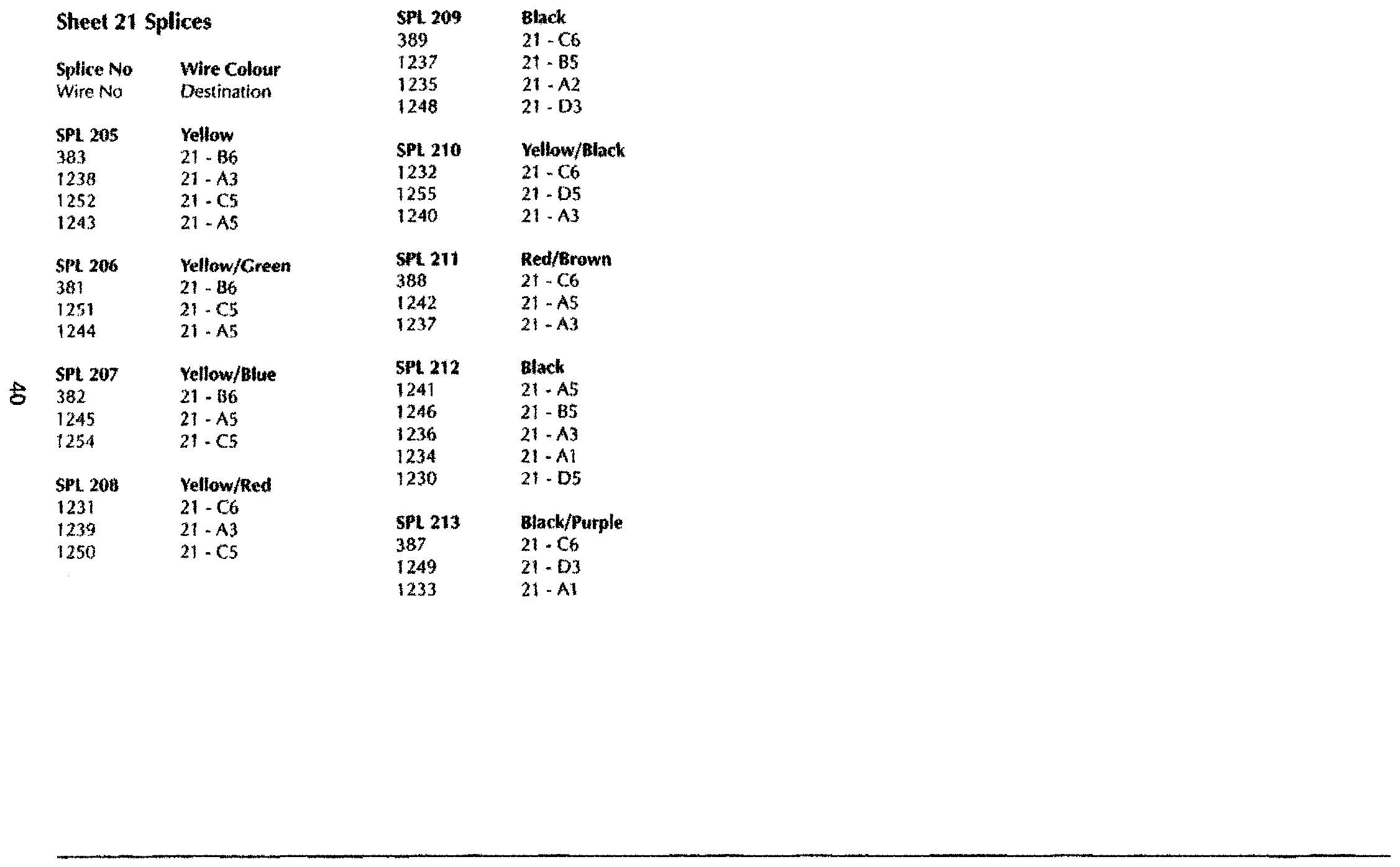

Sheet 21 splices
