Wiring Diagram Sheet 23: Drivers Sill
- Make
- Aston Martin
- Model
- DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
- Year
- 1994–1998
- Section
- Wiring diagrams – 97 MY › Wiring Diagram Sheet 23: Drivers Sill
ElectricsWiring Diagram Sheet 23: Drivers Sill
Wiring Diagram Sheet 23: Drivers Sill

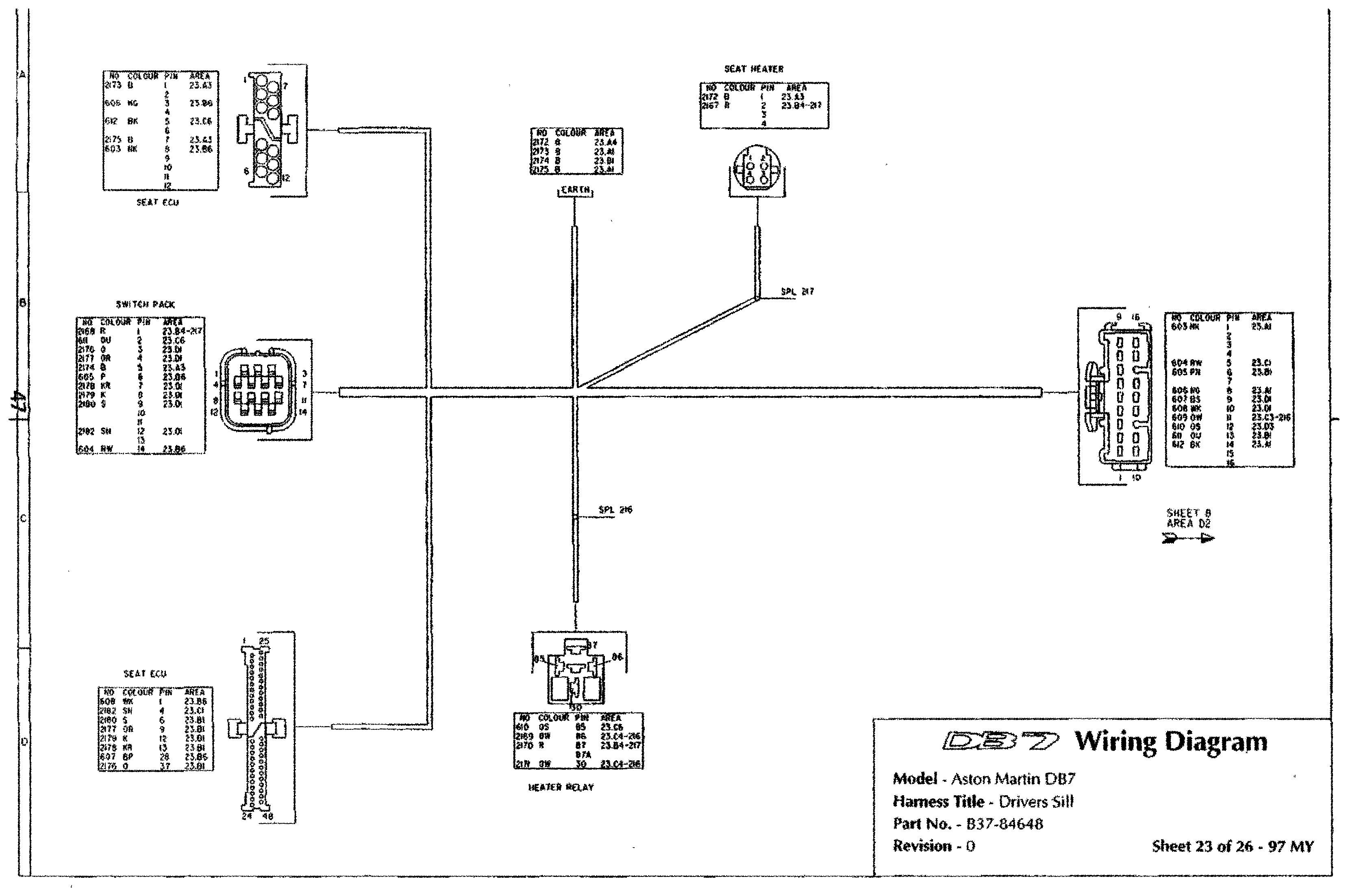

Harness: Drivers Sill. Drawing part no. B37-84648, revision 0. Sheet 23 of 26, 97 MY.

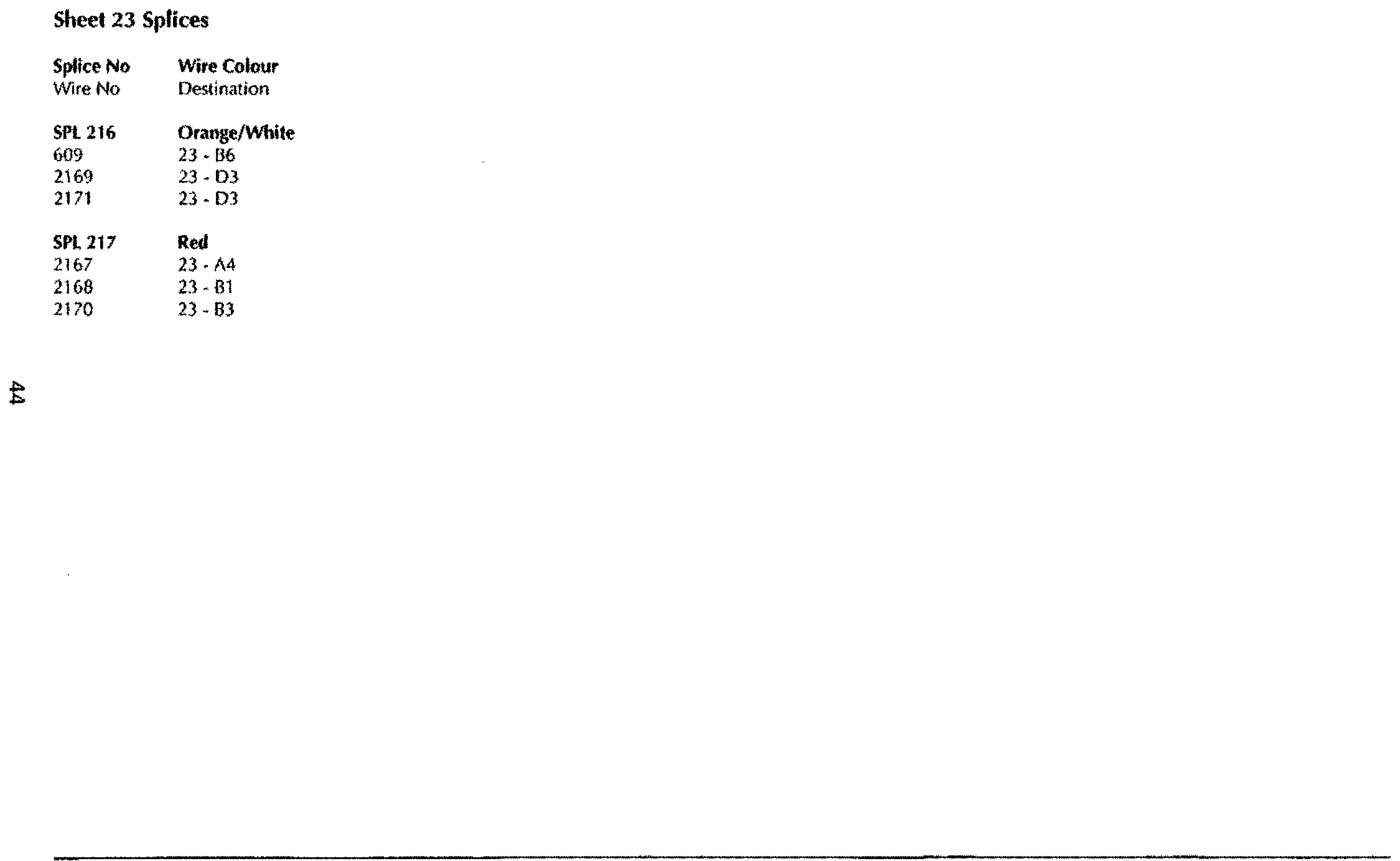

Sheet 23 splices
