Wiring Diagram Sheet 15: Rearward - 2
- Make
- Aston Martin
- Model
- DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
- Year
- 1994–1998
- Section
- Wiring diagrams – 97 MY › Wiring Diagram Sheet 15: Rearward - 2
ElectricsWiring Diagram Sheet 15: Rearward - 2
Wiring Diagram Sheet 15: Rearward - 2

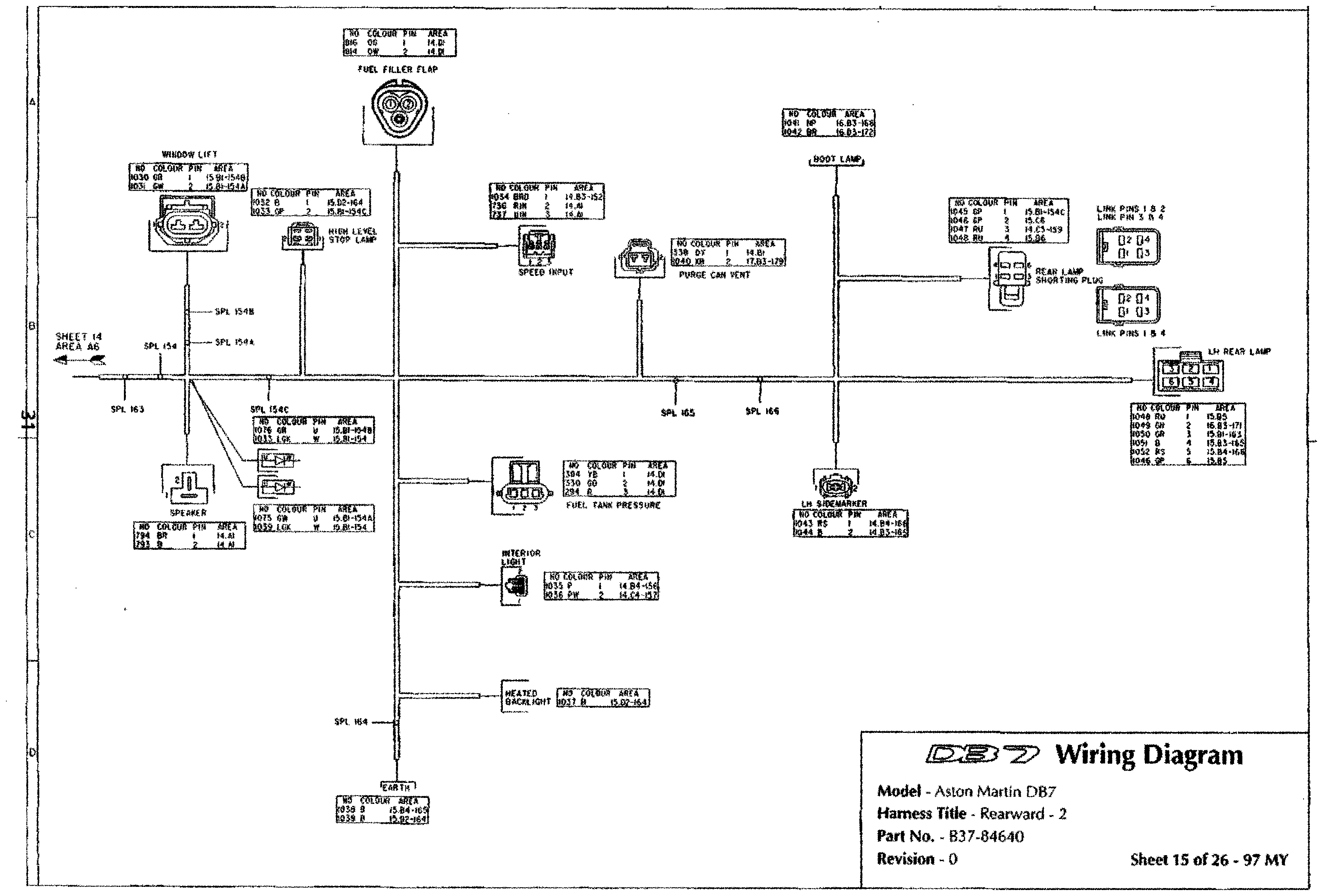

Harness: Rearward - 2. Drawing part no. B37-84640, revision 0. Sheet 15 of 26, 97 MY.

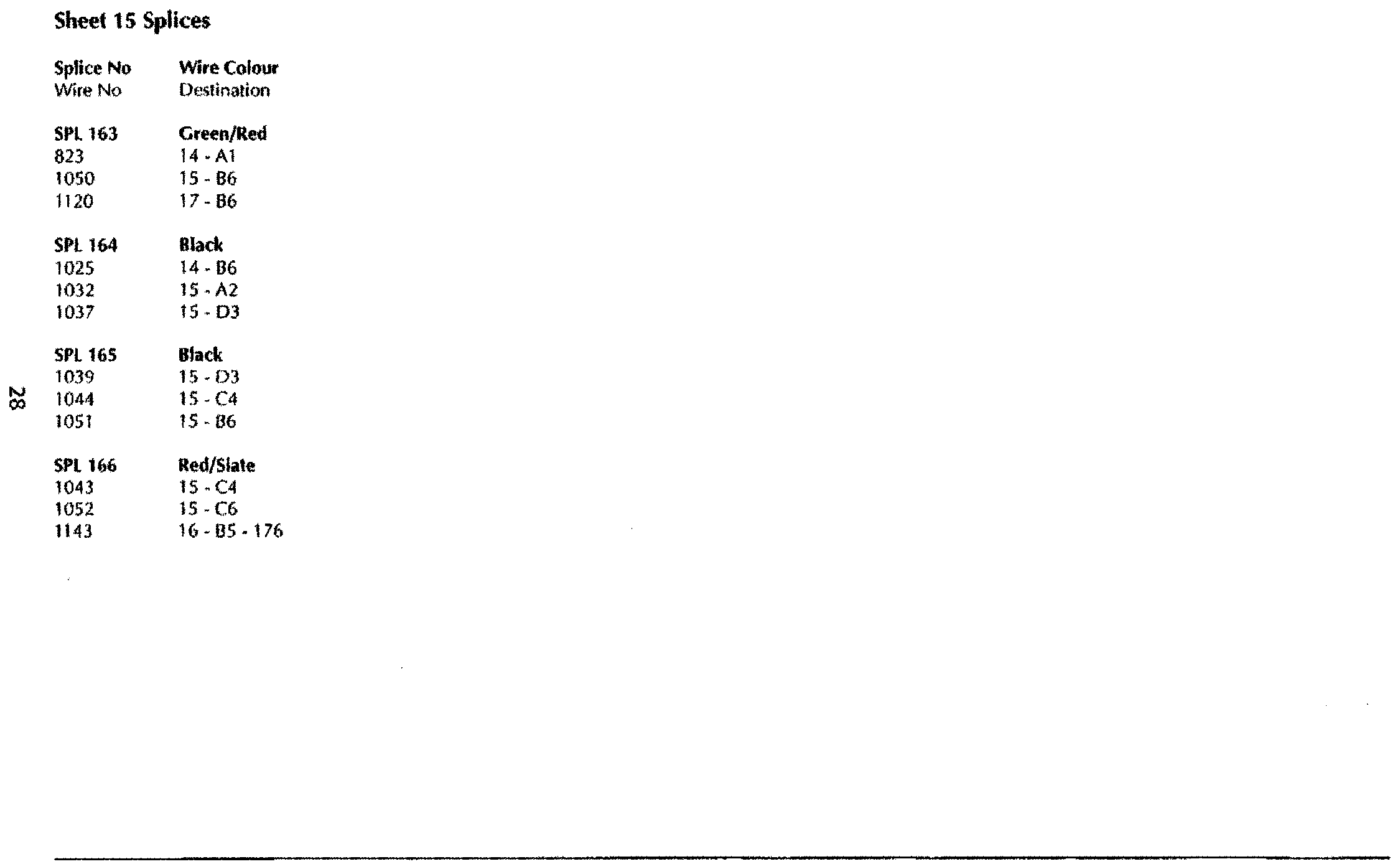

Sheet 15 splices
