Wiring Diagram Sheet 7: Auto/Manual Transmission
- Make
- Aston Martin
- Model
- DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
- Year
- 1994–1998
- Section
- Wiring diagrams – 97 MY › Wiring Diagram Sheet 7: Auto/Manual Transmission
ElectricsWiring Diagram Sheet 7: Auto/Manual Transmission
Wiring Diagram Sheet 7: Auto/Manual Transmission

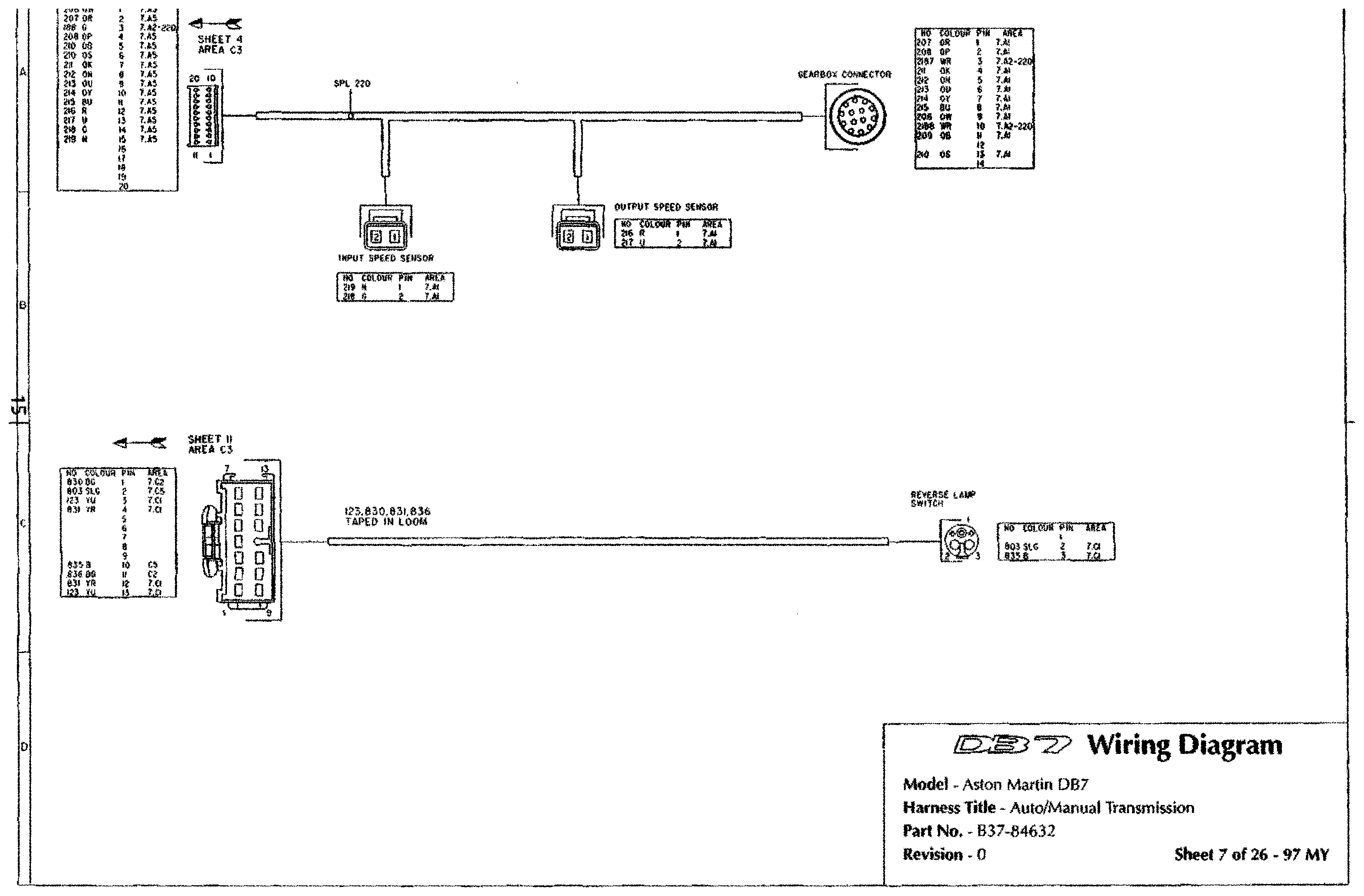

Harness: Auto/Manual Transmission. Drawing part no. B37-84632, revision 0. Sheet 7 of 26, 97 MY.

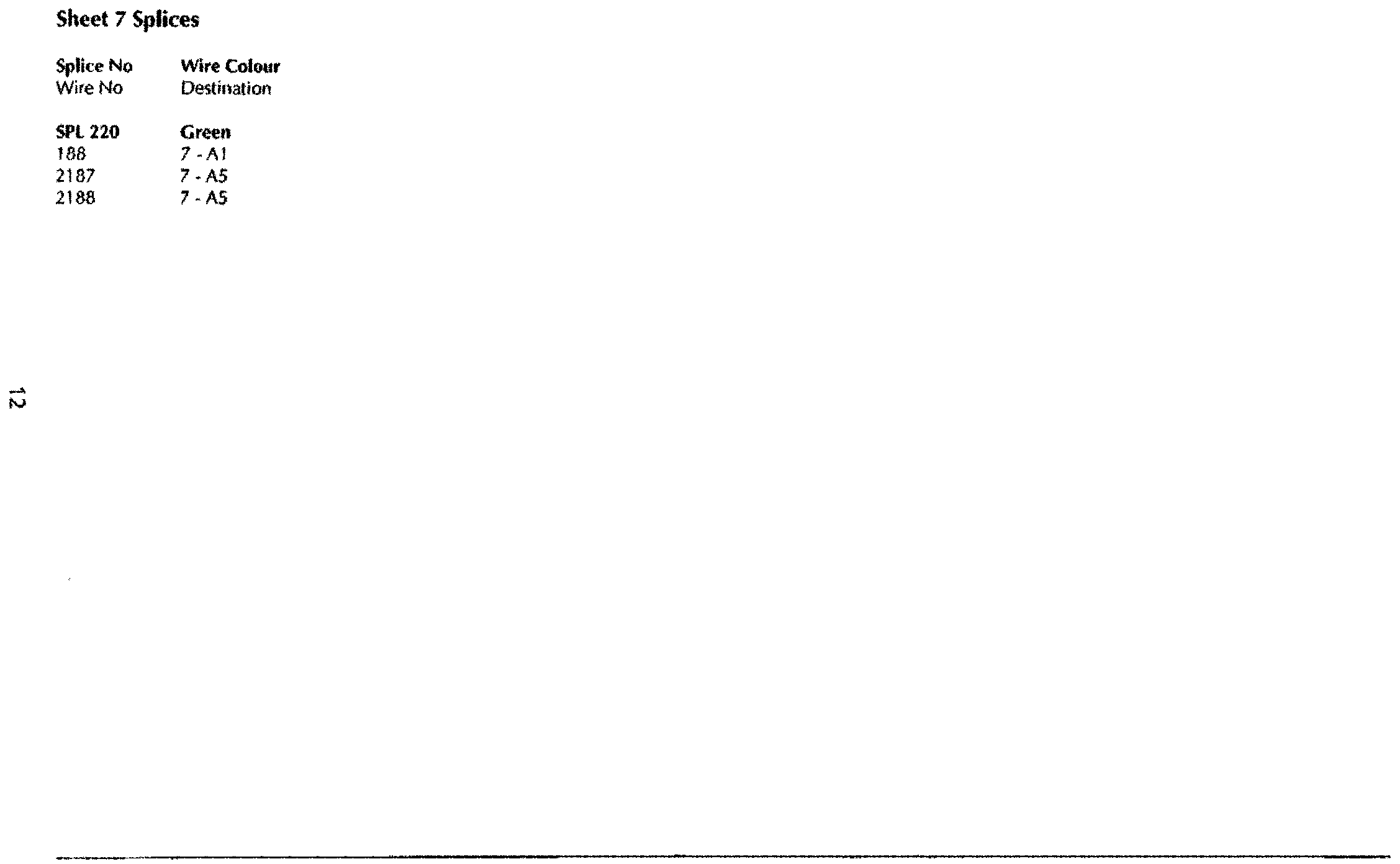

Sheet 7 splices
