AERIAL SUPPORT - R.R

Operation 5570T27 · CAR RADIO/CAR TELEPHONE/VIDEO

1.2 8v, 1.3 Multijet, 1.4 16v · Bluetooth

Removing

- Disconnect the negative battery terminal.

- Remove both front pillar trims

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

- Remove both the sun visors.

Op. 7065C34 SUN BLIND (ONE), LEFT OR RIGHT - R.R.

Op. 7040E10 FRONT COURTESY LIGHT - R+R

. Remove both the central pillar trim upper elements.

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

Op. 7040H10 ROOF PANEL LINING - R.R.

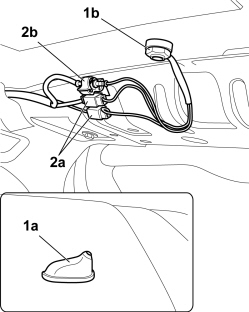

1. Disconnect electrical connections for GPS/GSM aerial (1a) and for car radio aerial (1b).

2. Unscrew nut (2a) and remove aerial mounting (2b) complete with wiring.

Refitting

1. Position aerial mounting (1a) and tighten nut (1b).

2. Connect electrical connections for GPS/GSM aerial (1a) and for car radio aerial (1b).

Op. 7040H10 ROOF PANEL LINING - R.R.

. Fit both the central pillar trim upper elements.

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

Op. 7040E10 FRONT COURTESY LIGHT - R+R

- Fit both the sun visors.

Op. 7065C34 SUN BLIND (ONE), LEFT OR RIGHT - R.R.

- Fit both front pillar trims.

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

- Connect the negative battery terminal.
