Electrical equipmentMobile phone hands-free system microphone - r r
MOBILE PHONE HANDS-FREE SYSTEM MICROPHONE - R R
Removing
- Disconnect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |

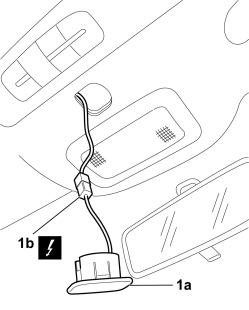

1. Release the hands-free system microphone (1a) from its housing in the ceiling and disconnect the electrical connection (1b).
| Description | Connector | |
|---|---|---|
| 1b | Handsfree microphone | See P026 HANDSFREE MICROPHONE |
Refitting
1. Connect the electrical connection (1a) and fit the hands-free system microphone (1b) in its housing and check that it is properly secured.
| Description | Connector | |
|---|---|---|
| 1a | Handsfree microphone | See P026 HANDSFREE MICROPHONE |
- Connect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |
