CAR RADIO EQUIPMENT - R+R
Removing
- Disconnect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |
1. Release the trim using a suitable tool.
1. With the specified tool, move the car radio retainers and extract it from its housing.
| Tool | Description | Function | Validity |
|---|---|---|---|
| 1.870.848.000 | Forks | Radio extraction | all versions |

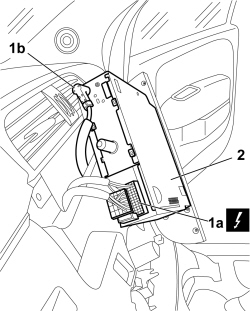

1. Detach electrical connections (1a) and aerial (1b).
| Description | Connector | |
|---|---|---|
| 1a | Radio | See P020 RADIO |
2. Remove the radio.
Refitting
1. Connect electrical connections (1a) and aerial (1b).
| Description | Connector | |
|---|---|---|
| 1a | Radio | See P020 RADIO |
2. Place the radio in position.
- Fit the radio in position and check it is correctly locked.
- Fit the trims in position and check they are correctly locked.
- Connect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |
