ENGINE OIL VAPOUR RECIRCULATION SPARK OUT - REPLACE

Operation 1080D50 · CRANKCASE VAPOUR/GAS RECIRCULATION SYSTEM

1.2 8v

Removing

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

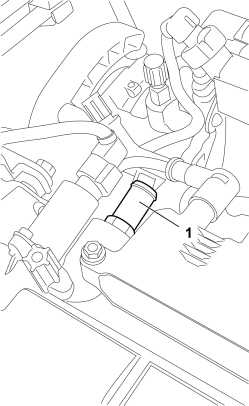

1. Undo the flame trap and remove it from its seat.

Refitting

- Fit the flame trap in its seat.

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R
