INTRODUCTION - CRANKCASE VAPOUR/GAS RECIRCULATION SYSTEM
CONSTRUCTION SPECIFICATIONS
The crankcase oil vapour emissions reach the cylinder head extension where they partly condense and partly enter the pressure regulator valve before being directed to the intake chamber and then introduced into the combustion chamber and burnt.

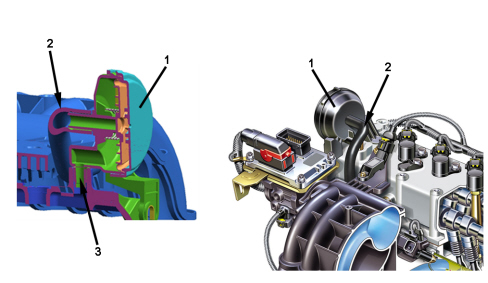

1. Oil vapour pressure regulator valve
2. Inlet vapour delivery pipe
3. Cylinder head extension oil vapour outlet
