LAMBDA SENSOR - R.R.

Operation 1080B90 · EXHAUST EMISSION CONTROL SYSTEM

1.3 Multijet

Removing

- Disconnect the negative battery terminal.

DescriptionConnector
BatterySee A001 BATTERY

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

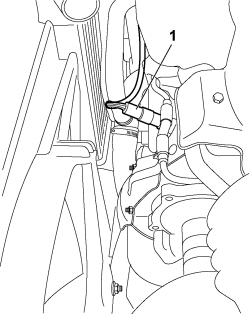

1. Disconnect the electrical connection for the Lambda sensor (1a) and release the wiring from the retaining bands (1b).

DescriptionConnector
1aLambda sensorSee K040 LAMBDA SENSOR
LAMBDA SENSOR - R.R.

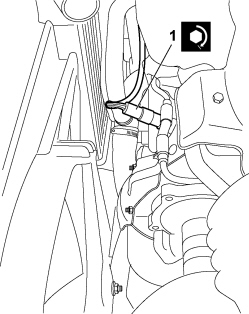

1. Undo and remove the Lambda sensor on the catalytic converter.

LAMBDA SENSOR - R.R.

Refitting

If the Lambda sensor is being replaced, the self-learning procedure must be carried out using the diagnostic equipment.

This procedure is designed to guarantee the correct operation of the engine strategy and consequently the correct updating of the self-adjustment parameters.

In order to carry out this procedure it is necessary to:

- connect the diagnostic equipment;

- with the engine off, turn the ignition key to the ON position;

- follow the instructions given by the diagnostic equipment for this procedure;

- at the end of the operation, turn the ignition key OFF and wait until the data is memorized.

1. Screw in the Lambda sensor on the catalytic converter and tighten it to the recommended torque.

ComponentFasteningdiaValue (daNm)Validity
Lambda sensorM18x1.54.5all versions
LAMBDA SENSOR - R.R.

1. Connect the electrical connection for the Lambda sensor (1a) and secure the wiring to the retaining bands (1b).

DescriptionConnector
1aLambda sensorSee K040 LAMBDA SENSOR
LAMBDA SENSOR - R.R.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

- Connect the negative battery terminal.

DescriptionConnector
BatterySee A001 BATTERY
