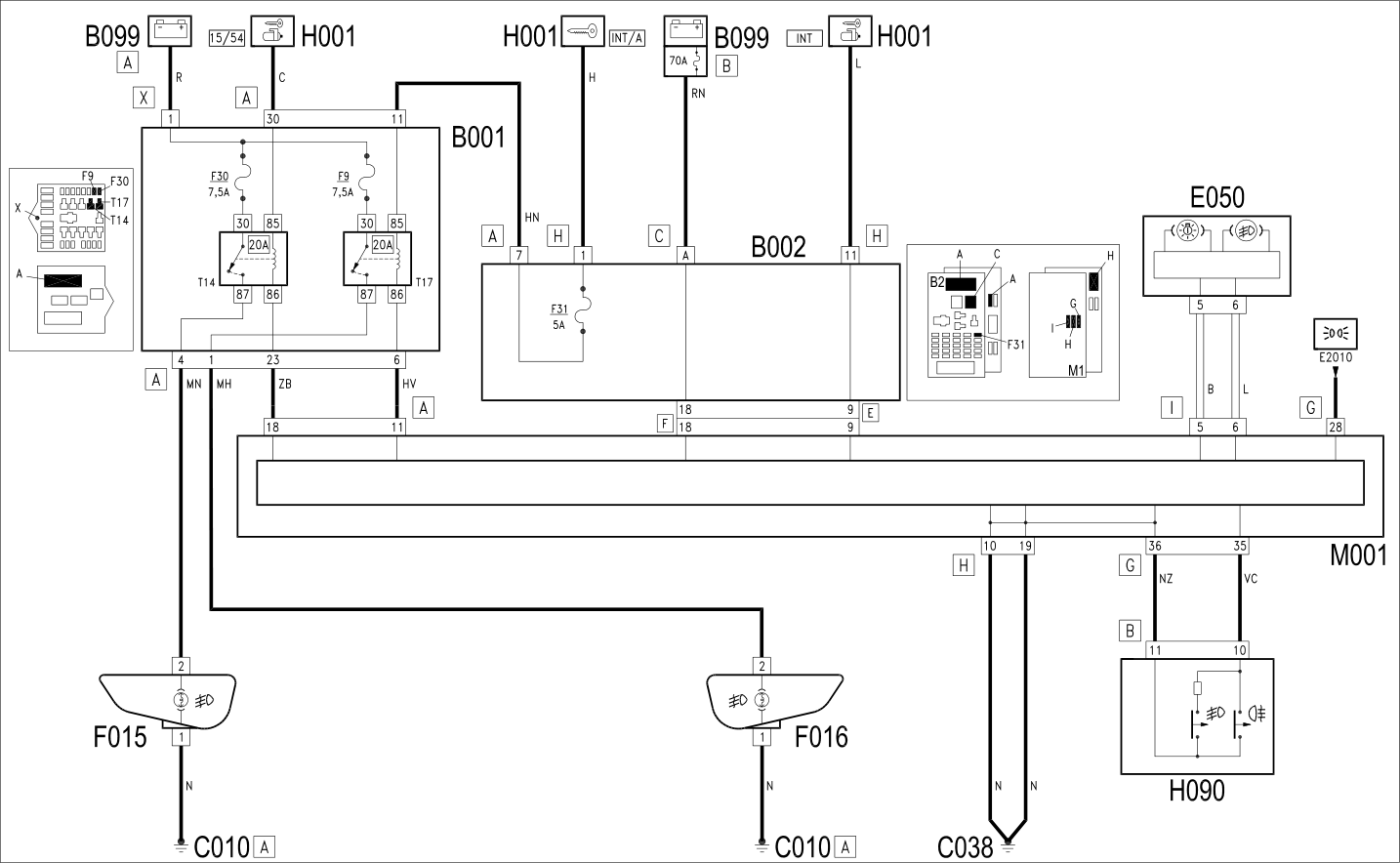

FOG LIGHTS - WIRING DIAGRAM

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C010	LEFT FRONT EARTH
C038	EARTH ON CENTRE TUNNEL
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
F015	LEFT FOG LAMP	Op. 5540D12 LEFT FOG LAMP
F016	RIGHT FOG LAMP	Op. 5540D13 RIGHT FOG LIGHT - R.R.
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
H090	SWITCH CONTROL PANEL	Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
