Exterior lighting › Brake lights - wiring diagram

Wiring diagrams and electrical functionsBrake lights - wiring diagram

BRAKE LIGHTS - WIRING DIAGRAM

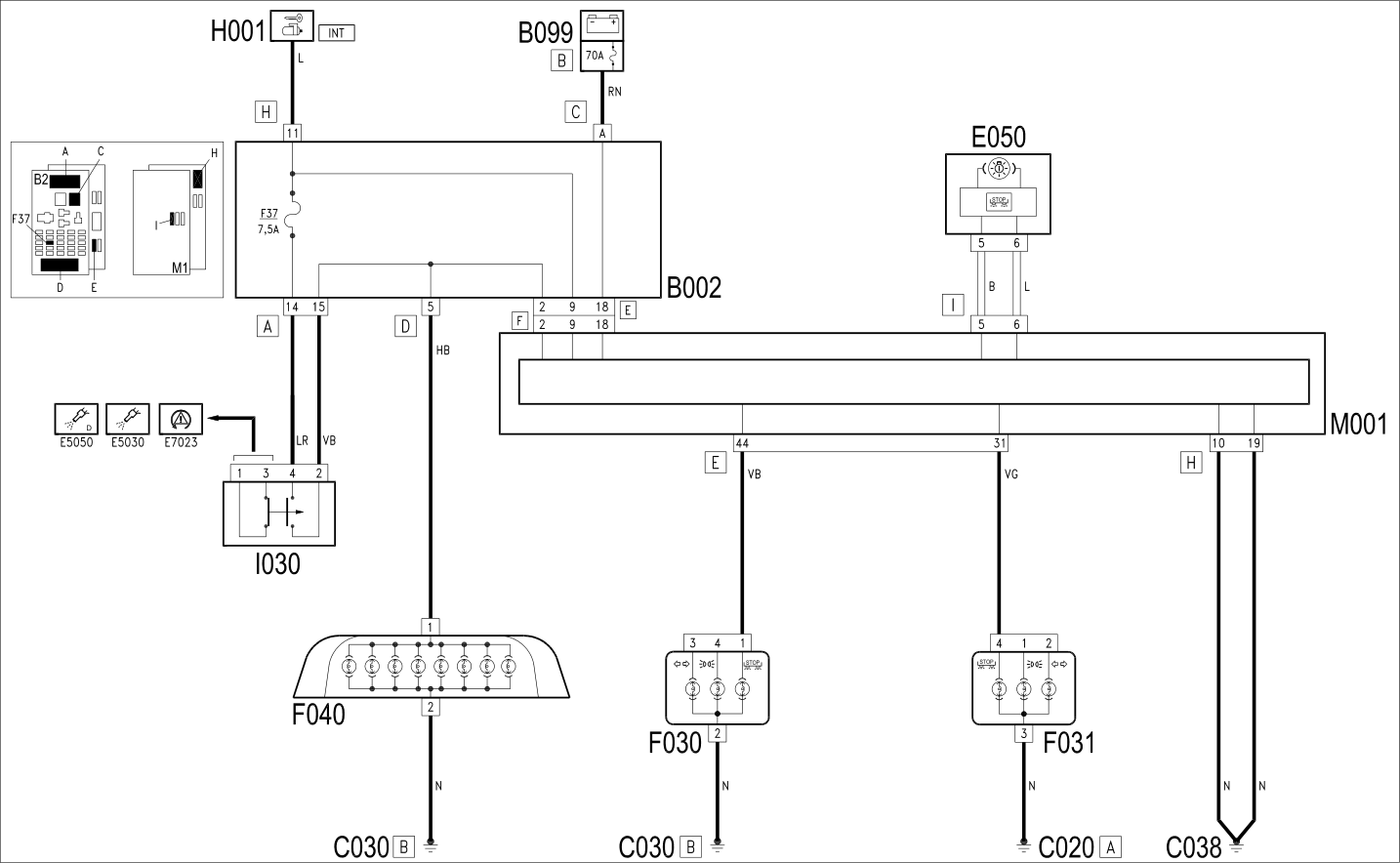

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C038	EARTH ON CENTRE TUNNEL
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
F030	LEFT REAR LIGHT CLUSTER	Op. 5540A44 REAR LIGHT CLUSTER (ONE), LEFT OR RIGHT - R.R.
F031	RIGHT REAR LIGHT CLUSTER	Op. 5540A44 REAR LIGHT CLUSTER (ONE), LEFT OR RIGHT - R.R.
F040	ADDITIONAL TAIL-LIGHT ('THIRD BRAKE LIGHT)	Op. 5550D16 THIRD BRAKE LIGHT - R+R
I030	BRAKE PEDAL SWITCH	Op. 5550D10 BRAKE LIGHT SWITCH - R+R Op. 1060G38 BRAKE PEDAL SWITCH - R.R
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
