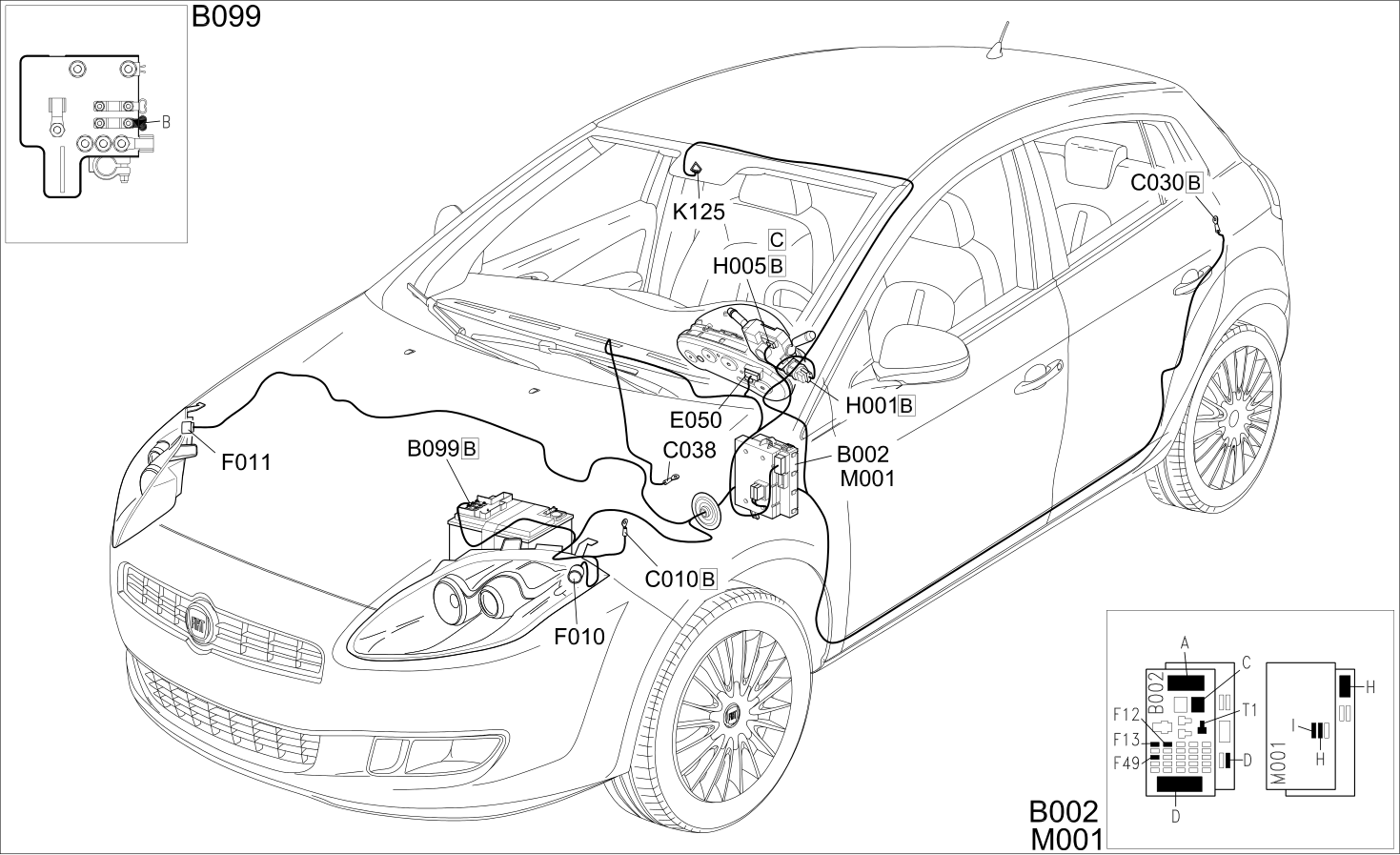

DIPPED HEADLIGHTS - COMPONENT LOCATION

COMPONENT LOCATION

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C010	LEFT FRONT EARTH
C030	LEFT REAR EARTH
C038	EARTH ON CENTRE TUNNEL
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
F010	LEFT HEADLAMP	Op. 5540B07 LEFT FRONT HEADLAMP - R.R
F011	RIGHT HEADLAMP	Op. 5540B08 RIGHT FRONT HEADLAMP - R.R
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
H005	STEERING COLUMN SWITCH UNIT	Op. 5550A10 STALK UNIT ASSEMBLY - R+R
K125	RAIN AND DUSK SENSOR	Op. 7065C60 INTERIOR REAR VIEW MIRROR FOR VERSIONS WITH RAIN/DUSK SENSOR - R.R.
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.

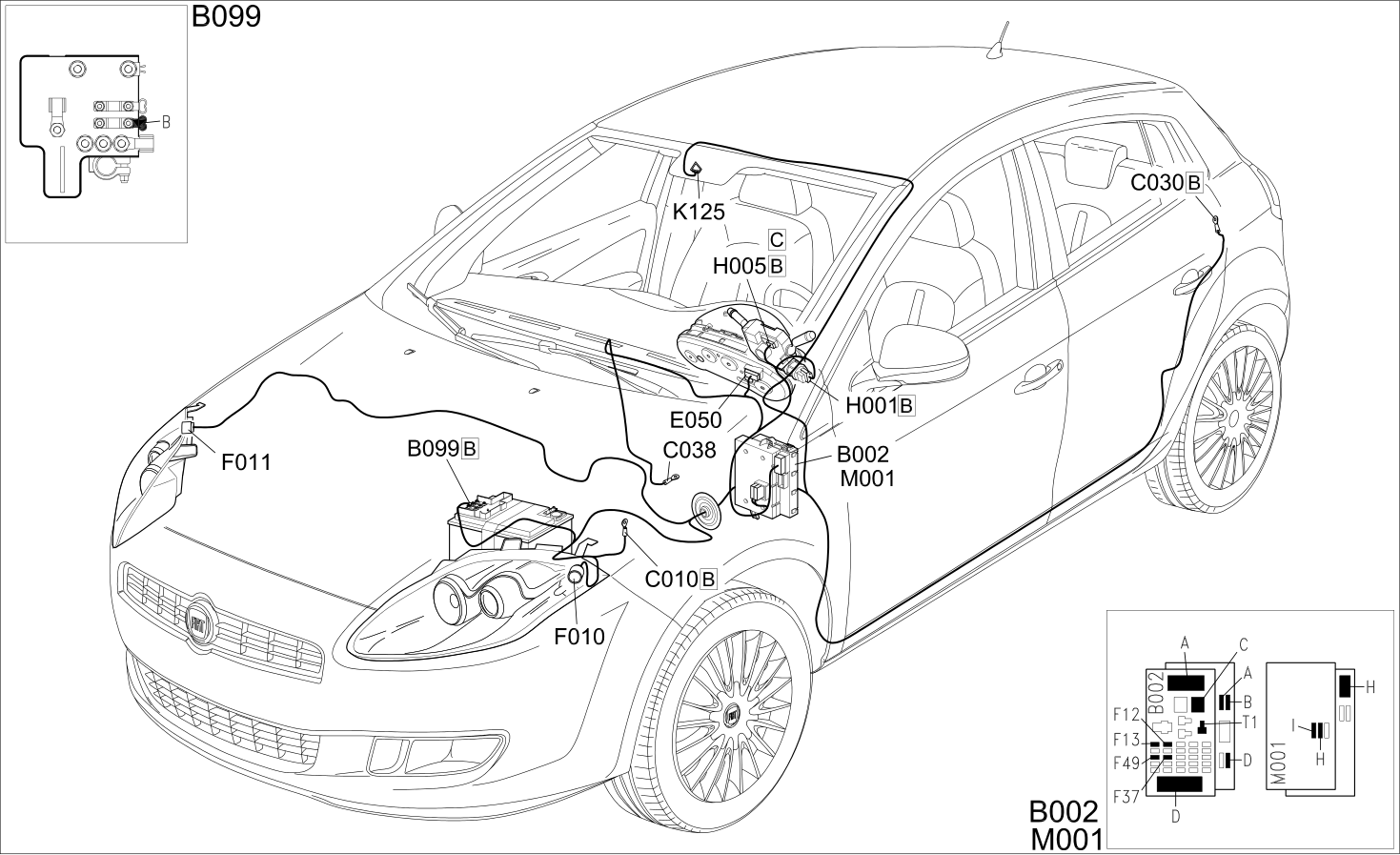

Xenon Gas headlamps

COMPONENT LOCATION

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C010	LEFT FRONT EARTH
C030	LEFT REAR EARTH
C038	EARTH ON CENTRE TUNNEL
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
F010	LEFT HEADLAMP	Op. 5540B81 LEFT GAS DISCHARGE LIGHT CLUSTER - R.R.
F011	RIGHT HEADLAMP	Op. 5540B82 RIGHT GAS DISCHARGE LIGHT CLUSTER - R.R.
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
H005	STEERING COLUMN SWITCH UNIT	Op. 5550A10 STALK UNIT ASSEMBLY - R+R
K125	RAIN AND DUSK SENSOR	Op. 7065C60 INTERIOR REAR VIEW MIRROR FOR VERSIONS WITH RAIN/DUSK SENSOR - R.R.
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
