Exterior lighting › Reversing lights - wiring diagram

Wiring diagrams and electrical functionsReversing lights - wiring diagram

REVERSING LIGHTS - WIRING DIAGRAM

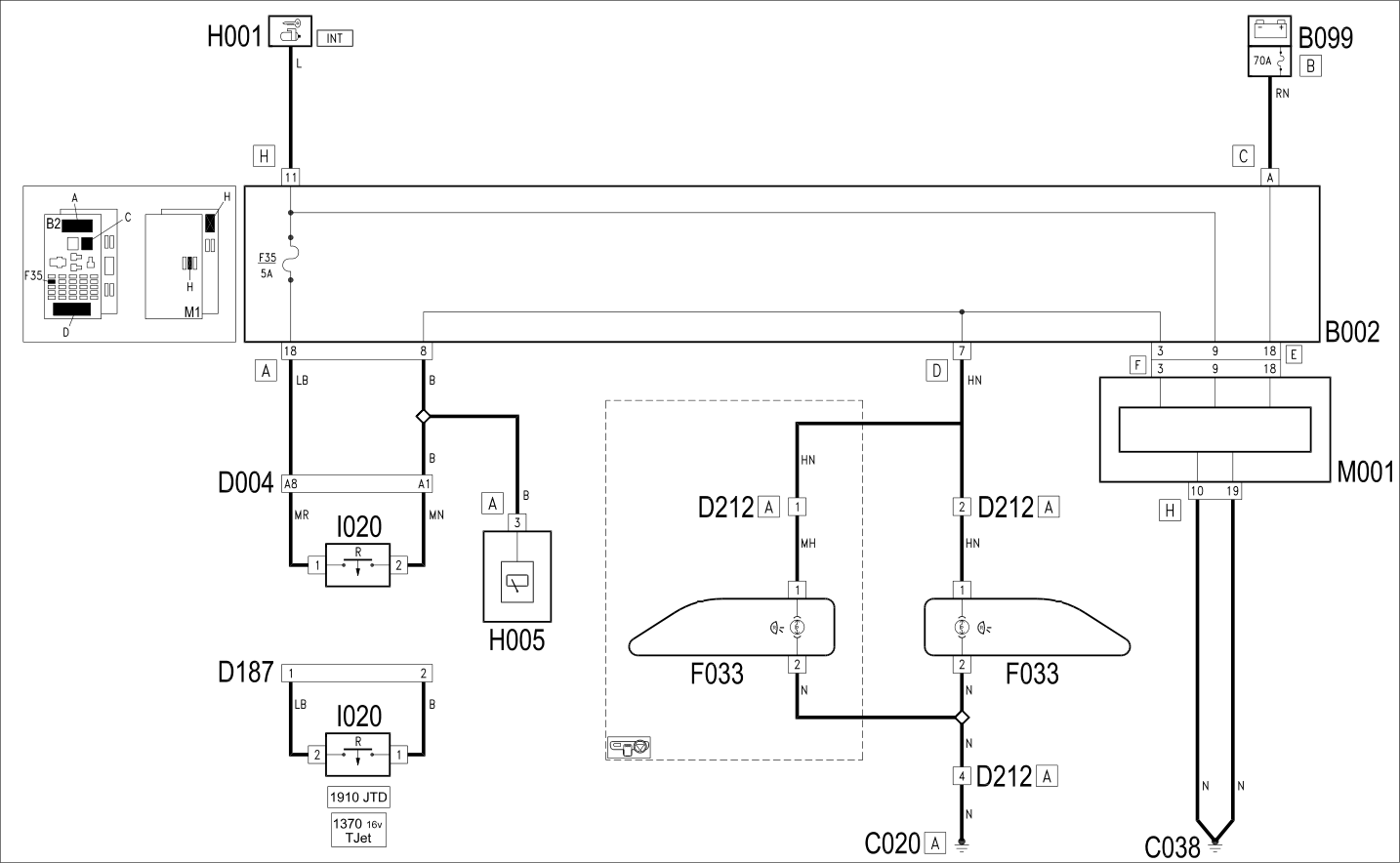

WIRING DIAGRAM

COMPONENTS

B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C020	PASSENGER SIDE DASHBOARD EARTH
C038	EARTH ON CENTRE TUNNEL
D004	FRONT/ENGINE COUPLING
D187	FRONT/REVERSING SWITCH BRIDGE COUPLING
D212	BUMPER/REAR COUPLING
F033	REVERSING LIGHT	Op. 5550D24 REVERSING LIGHT - R+R
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
H005	STEERING COLUMN SWITCH UNIT	Op. 5550A10 STALK UNIT ASSEMBLY - R+R
I020	REVERSING LIGHTS SWITCH	Op. 5550D22 REVERSING LIGHT SWITCH - R+R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
