Injector seal test
- Make
- Fiat
- Model
- Croma Factory Service Manual
- Year
- 2005–2010
- Section
- Diesel injection system › Injector seal test
EngineInjector seal test

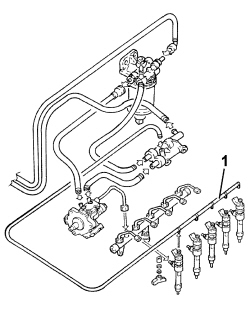

INJECTOR SEAL TEST
Disconnect the electrical connections from all the injectors.
1. Disconnect the fuel recirculation pipes from all the injectors.
Constrict the pipe so that no fuel comes out during the test.
Press the START/STOP and check visually that the quantity of recirculated fuel leaving the injector connections are approximately the same and small in amount
