VACUUM RESERVOIR - R.R.

Operation 1080C70 · Exhaust gas recirculation system (e.g.r.)

1.9 JTD 8v

Removing

1. Undo the bolts securing the fuel filter to the bodyshell.

2. Disconnect the electrical connection for the water-in-filter sensor.

Move the fuel filter outside the working area.

- 1016A10 sound-proofing cover - r + r

1. Disconnect the electrical connection from the solenoid on the vacuum tank.

2. Disconnect the vacuum pipes from the brake servo vacuum pipe and the pneumatic valve on the throttle body.

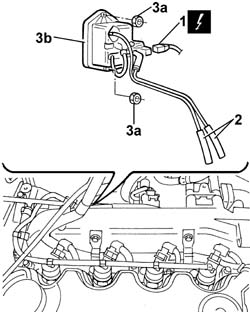

3. Undo the nuts (3a) and remove the vacuum reservoir (3b) complete with solenoid.

Refitting

Fit the solenoid to the vacuum tank and secure by tightening retaining bolts.

Fit the vacuum reservoir in the specific seat in the engine compartment and tighten the fixing nuts.

Connect the vacuum pipes to the brake servo vacuum pipe and pneumatic valve on the throttle body.

Connect the electrical connection to the solenoid on the vacuum tank.

Connect the electrical connection to the water-in-filter presence sensor.

Tighten to torque the bolts securing the fuel filter to the bodyshell.

- 1016A10 sound-proofing cover - r + r
