Fuel tank (page 3 of 3)

Refit

32. With assistance, locate fuel tank and position

33. Position jack to support tank.
34. Connect fuel pump multiplug.
35. Raise jack, align cradle and fit and tighten bolts.
36. Raise anti-roll [sway] bar, align straps and fit and
37. Tighten anti-roll [sway] bar link bolts
38. Clean fuel pipes, connect pipes and tighten
39. Secure harness to fuel pipes with clip.
40. Connect vapour separator pipe.
41. Connect breather hose to filler neck and tighten
42. Connect filler hose to fuel tank and tighten hose
43. Reconnect battery negative lead.
44. Run engine and check for leaks.

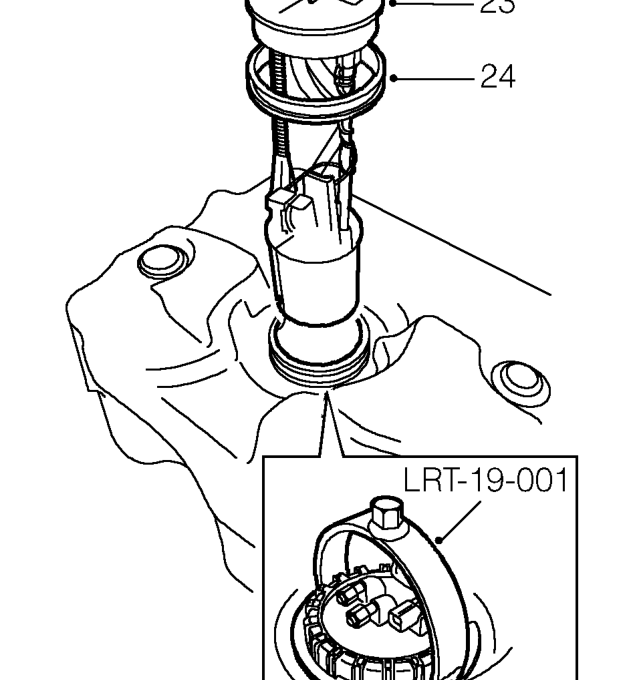

23. Using tool LRT-19-001 remove locking ring securing pump. Withdraw fuel pump from tank.

• WARNING: A quantity of fuel will be
• retained in body of pump. Care must be
• taken to prevent fuel spillage during above
• operation.

24. Remove and discard sealing ring.
25. Fit new sealing ring to pump and fit pump.
26. Fit locking ring and using tool LRT-19-001, tighten to 48 Nm, 35 lbf ft.
27. Fit fuel feed and return hoses to pump.
28. Fit breather hose and tighten clip.
29. Fit new fuel cut-off valve seals.
30. Fit valve and pipe assembly.
31. Fit heat shield.

cradle.

tighten bolts.

unions.

hose clip.

clip.
