TD5 Defender
76
CHASSIS AND BODY
18
REPAIR

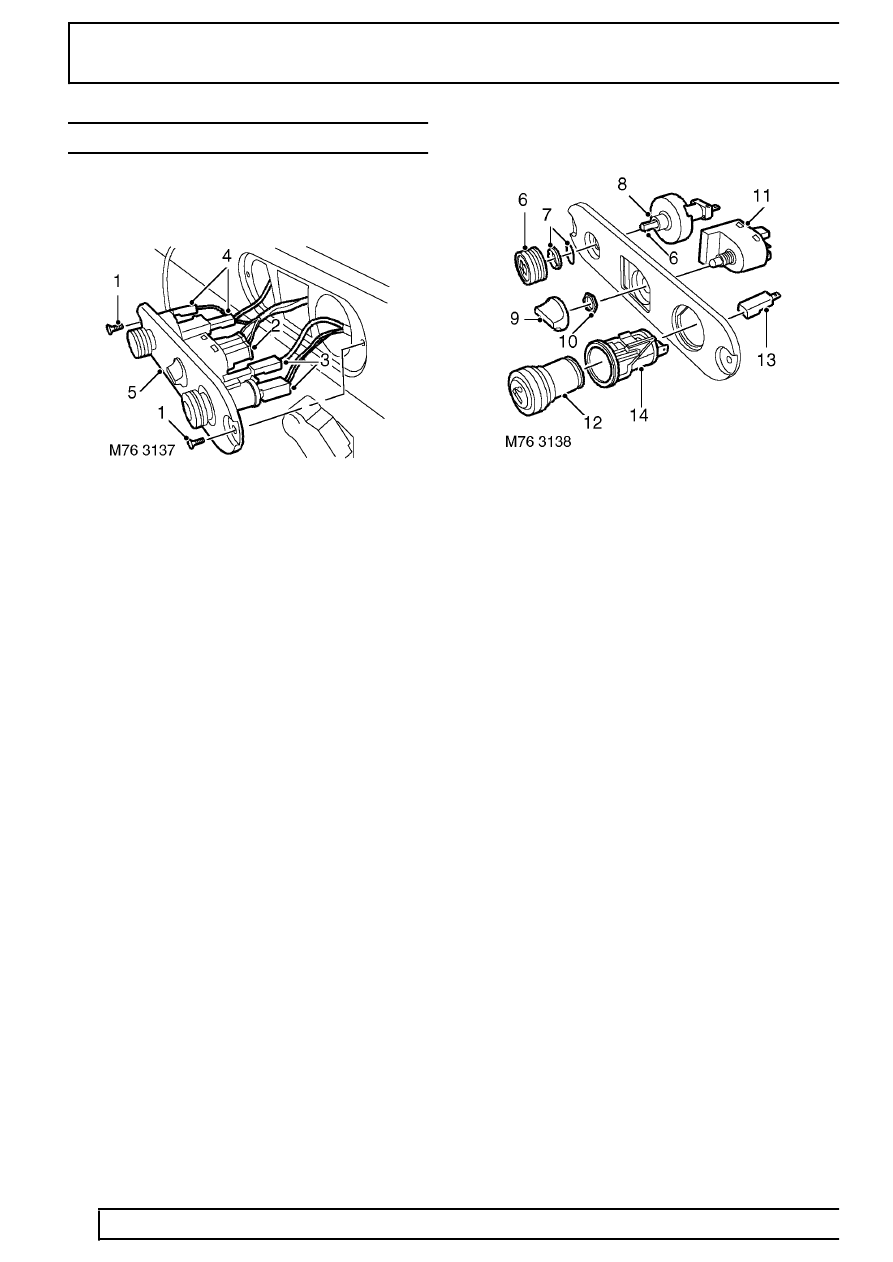

AUXILLIARY SWITCH PANEL
Service repair no - 76.46.38
Remove
1. Remove 2 screws securing axilliary switch panel
to fascia and collect nuts and washers.
2. Disconnect multiplug from headlamp Levelling
switch.
3. Disconnect multiplug and Lucar from cigar
lighter.
4. Noting their fitted position, disconnect 4 Lucars
from rear wash wipe switch.
5. Remove switch panel.
Do not carry out further dismantling if
component is removed for access only.
6. Release pin securing rear wash wipe knob to
switch and remove knob.
7. Remove locknut securing rear wash wipe switch
to panel.
8. Remove rear wash wipe switch.
9. Remove knob from headlamp levelling switch.
10. Remove locknut securing headlamp switch to
panel.
11. Remove headlamp levelling switch.
12. Remove element from cigar lighter.
13. Release bulb holder from cigar lighter.
14. Release cigar lighter from tags and remove from
panel.
15. Fit cigar lighter to panel and locate tags.
16. Fit bulb holder to cigar lighter.
17. Fit element to cigar lighter.
18. Fit headlamp levelling switch to panel and
secure with locknut.
19. Fit knob to headlamp levelling switch.
20. Fit rear wash wipe switch to panel and secure
with locknut.
21. Fit knob to rear wash wipe switch, ensuring pin
is correctly located.
Refit
22. Position auxilliary switch panel to fascia and
connect 4 Lucars to rear wash wipe switch.
23. Connect multiplug and Lucar to cigar lighter.
24. Connect multiplug to headlamp levelling switch.
25. Fit auxilliary switch panel to fascia and secure
with screws.
