SEAT BELT - FRONT
Service repair no - 76.73.13

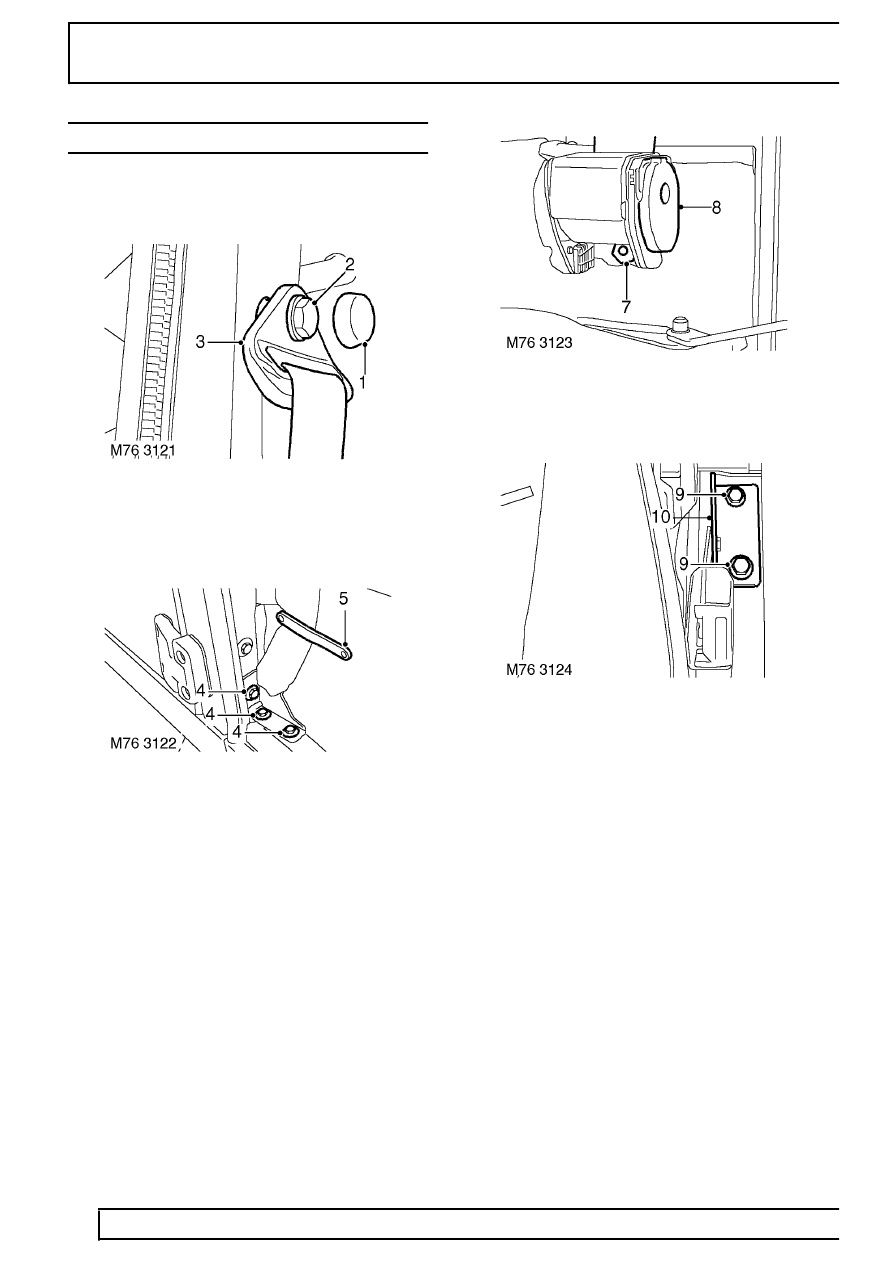

Remove
1. Remove cap from seat belt guide bolt.
2. Remove bolt securing seat belt guide to ’B’ post.
3. Release belt from ’B’ post mounting.
4. Remove 3 bolts securing belt bracket to seat
base.
5. Remove 2 studs securing seat belt retaining clip.
6. Remove retaining clip.
7. Remove bolt securing inertia reel to body.
8. Remove automatic belt assembly.
9. Remove 2 bolts securing stalk to body.
10. Remove stalk.
Refit
11. Position stalk and tighten bolts.
12. Position automatic belt assembly to body and
tighten bolt to 38 Nm
13. Unreel portion of belt.
14. Position bracket to seat base, tighten bolts.
15. Position belt to ’B’ post mounting and tighten bolt
to 32 Nm (24 lbf.ft).
16. Fit cap to bolt head.
17. Position belt retaining clip to seat base and
secure with studs.
