TD5 Defender
CHASSIS AND BODY
33
REPAIR
TRIM CASING - TAIL DOOR - FROM 02MY
Service repair no - 76.34.09
Remove

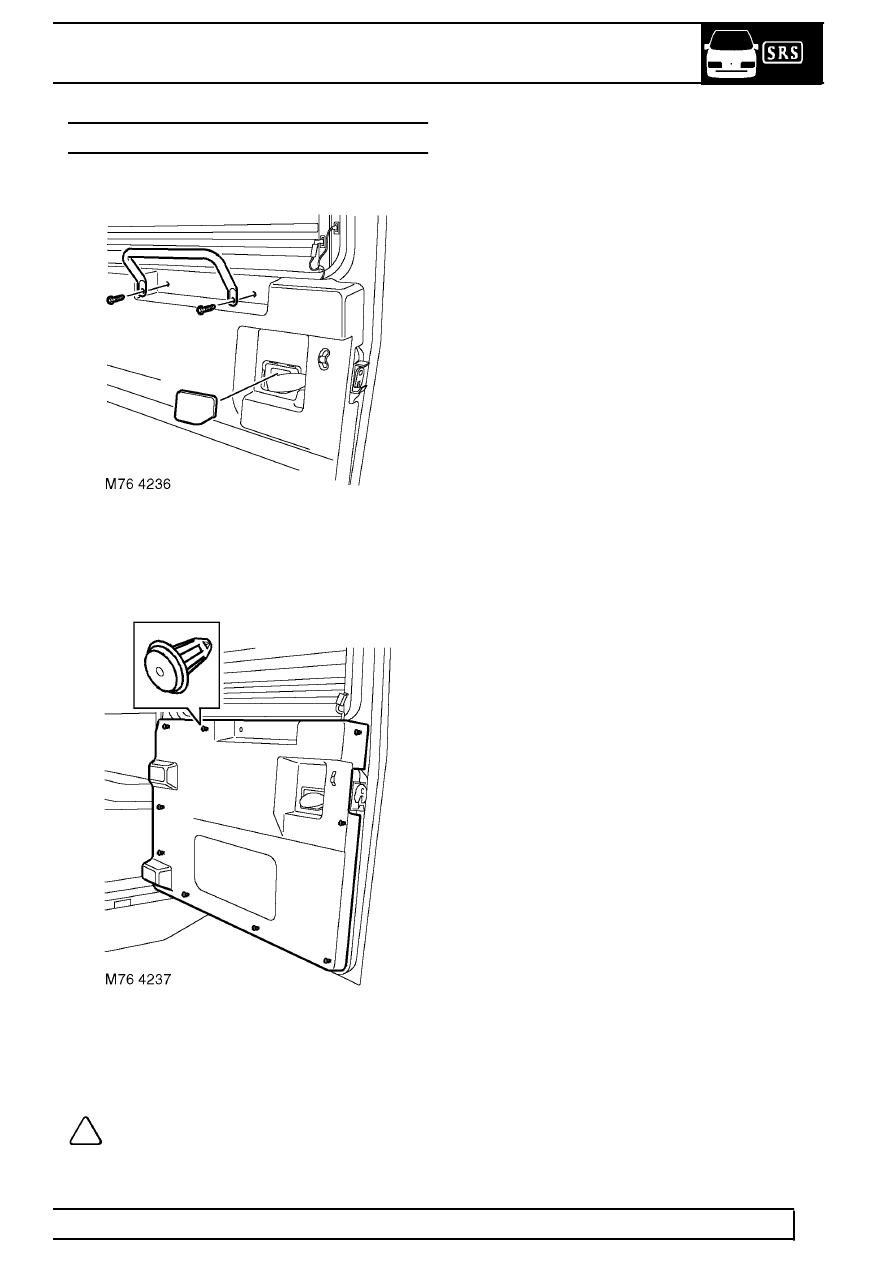

1. Remove 2 bolts securing rear door grab handle,
remove handle.
2. Remove escutcheon.
3. Carefully release 9 fasteners securing trim
casing to rear door and remove casing.
NOTE: Do not carry out further
dismantling if component is removed for
access only.
4. Remove 9 fasteners from trim pad.
Refit
5. Fit fasteners to trim casing.
6. Position trim casing and secure fasteners.
7. Fit escutcheon.
8. Fit grab handle and tighten bolts to 10 Nm (7
lbf.ft).
