Refit
7. Insert glass into channels and carefully push to
top of frame.
8. Secure glass channels with screws. Ensure
screw heads are down below bottom of channels
to prevent damage to glass.
9. Fit inner and outer waist seal to door.
10. Fit check strap.
11. Fit check strap torsion bar and tighten nuts to 10
Nm (7 lbf.ft) .
12. Fit rear door mounting panel. See this Section.
GLASS/SEALING RUBBER - TAIL DOOR - FROM
02MY
Service repair no - 76.31.22
Remove
1. Remove spare wheel from tail door.

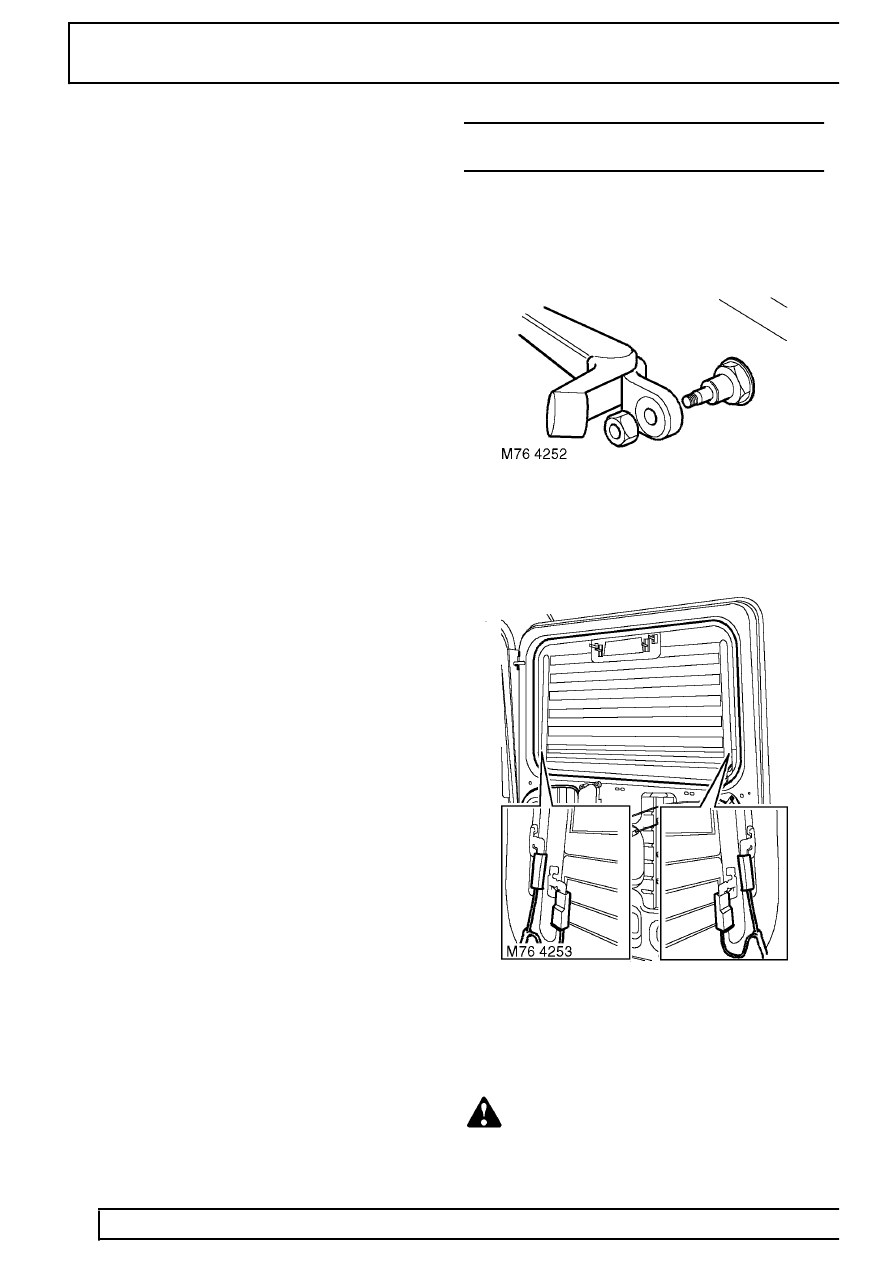

2. Raise nut cover, remove nut and release wiper
arm.
3. Open rear door.
4. Remove CHMSL assembly. See
ELECTRICAL, Repair.
5. Disconnect 4 Lucar connections.
6. With assistance, from inside of vehicle apply
pressure to glass, relieve seal lip and carefully
remove glass.
WARNING: Wear suitable eye protection
when removing and refitting glass.
