TD5 Defender
CHASSIS AND BODY
15
REPAIR
COVER - CUSHION - REAR SEAT
Service repair no - 78.40.04
Remove
1. Remove rear seat. See this Section.

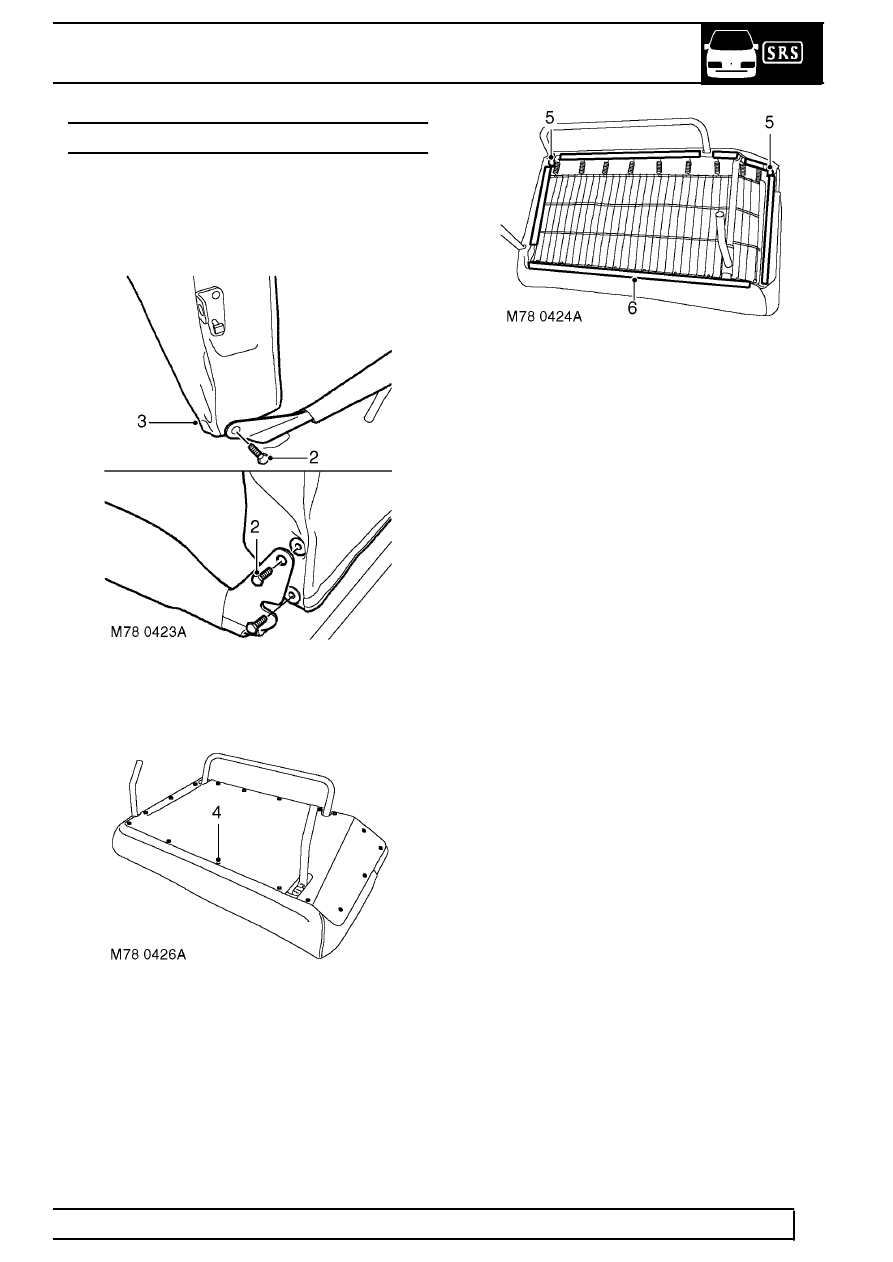

2. Remove 2 bolts securing squab to cushion
frame.
3. Remove squab and collect spacer.
4. Remove 17 screws securing base board to seat
cushion frame and remove board.
5. Remove 2 trim retaining clips.
6. Release cover retainers from seat frame.
7. Remove cover from cushion pad.
Refit
8. Position cover to cushion pad and secure
retainers to seat frame.
9. Fit trim retaining clips.
10. Position base board and tighten screws.
11. Position and align squab to cushion frame.
12. Fit spacer and tighten securing bolts.
13. Fit rear seat. See this Section.
