TD5 Defender
CHASSIS AND BODY
3
REPAIR

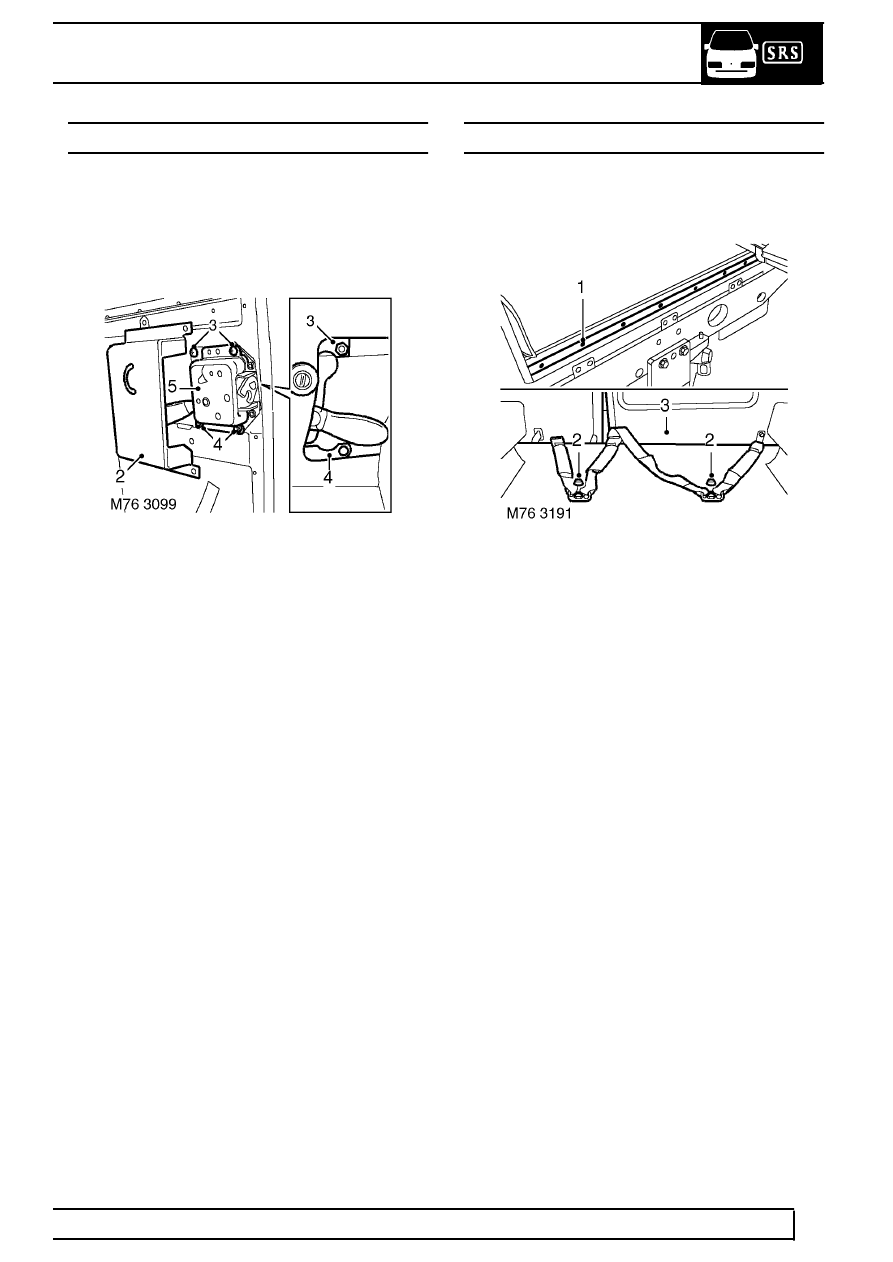

LATCH - TAIL DOOR - UP TO 02MY
Service repair no - 76.37.16
Remove
1. Remove tail door trim casing. See this Section.
2. Collect latch cover.
3. Remove 2 screws securing latch to door and
collect captive nut bracket.
4. Remove 2 nuts securing latch to door and collect
captive bolt bracket.
5. Remove latch assembly and collect foam
gasket.
Refit
6. Fit foam gasket and latch assembly to tail door.
7. Fit captive nut and bolt brackets to tail door.
8. Secure latch to tail door with nuts and screws.
9. Fit cover to latch.
10. Fit tail door trim casing. See this Section.
CARPET - LUGGAGE COMPARTMENT
Service repair no - 76.49.04
Remove
1. Remove 7 screws and remove carpet retainer.
2. Remove bolt covers and remove rear seat belt
bolts.
3. Release rear seat catches and fold seats
forward.
4. Remove luggage compartment carpet.
Refit
5. Position carpet.
6. Fold rear seats to position.
7. Align rear seat belts and tighten tighten bolts.
8. Fit bolt covers.
9. Position carpet retainer and tighten screws.
